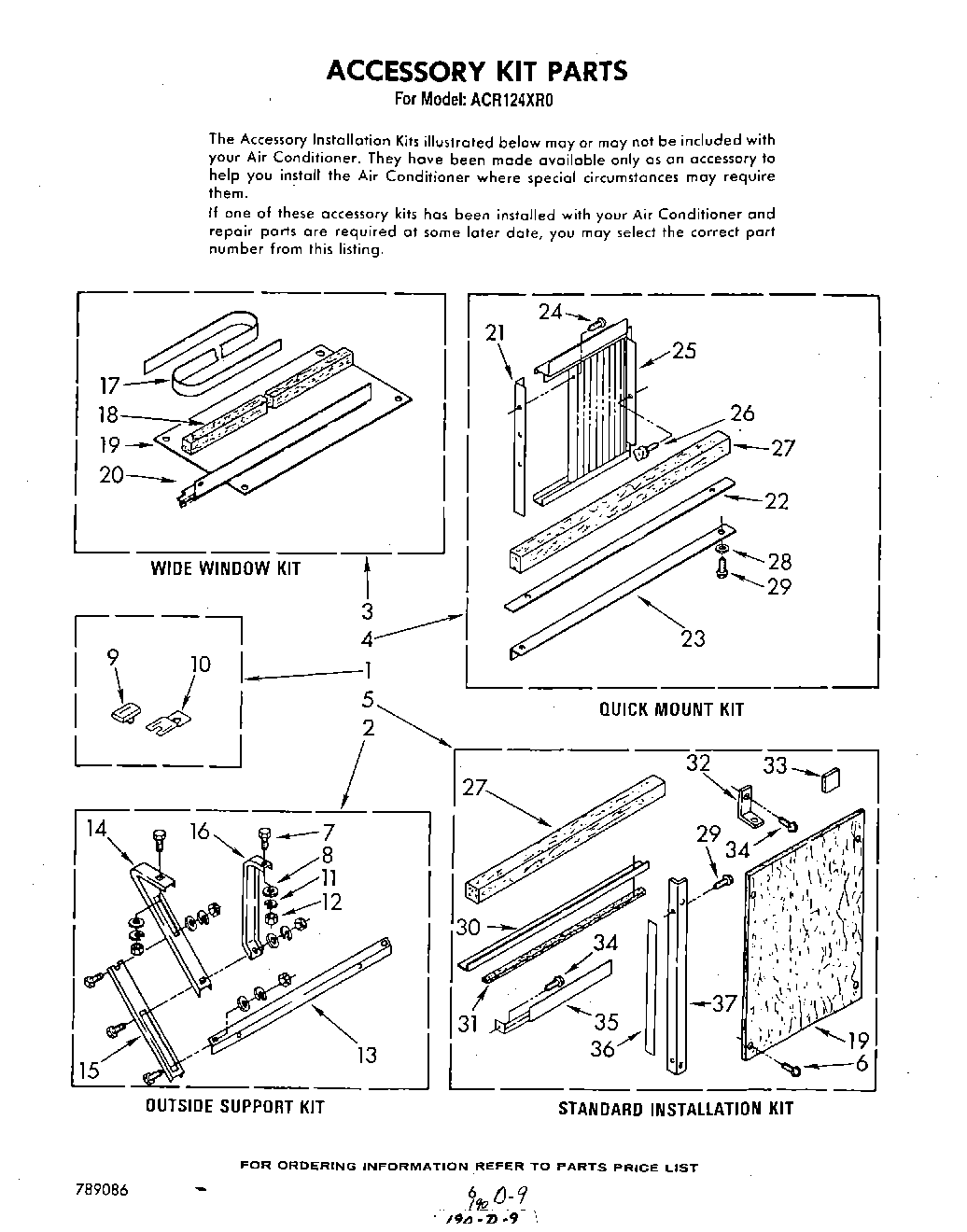

ACR124XR0 06 – ACCESSORY KITadmin2025-04-26T10:47:49+00:00ACR124XR0 06 – ACCESSORY KIT
Products
| Position | Product |
|---|
| Instructions, Installation (Kit, Quick Mount) |
| Instruction Sheet (Condensate Cup) |
| Instruction Sheet (Standard Installation) |
| Guide, Use And Care |
| Instructions, Installation (Kit, Wide Window) |
| Instructions, Installation (Outside Sill Kit) |
| Sheet, Service Tech |
| Instructions, Installation (Outside Support Kit |
| Guide, Ene |
| List, Repair Parts |
| 1 | Kit, Condensate Cup |
| 2 | Kit, Outside Support |
| 3 | Kit, Wide Window |
| 4 | Kit, Quick Mount |
| 5 | Kit, Standard Installation |
| 6 | WP965173 Whirlpool Dishwasher Screw |
| 7 | Bolt, 1/4 x 3/4 (6) |
| 8 | WP120393 Whirlpool Washer Assembly |
| 9 | WPL 647850 |
| 10 | Support, Cup |
| 11 | Lockwasher (6) |
| 12 | Nut, Hex (6) |
| 13 | Bracket, Support |
| 14 | Support, Cabinet (2) |
| 15 | Extension, Support (2) |
| 16 | Retainer, Cabinet (2) |
| 18 | Gasket, Meeting Rail |
| 19 | Bracket, R.S. |
| 20 | Bracket, Mounting (L.S.) |
| 20 | Bracket, Mounting (R.S.) |
| 21 | Retainer, Curtain (2) |
| 22 | Strip, Seal |
| 23 | Channel, Bottom |
| 24 | Screw, 8 x 7/16 |
| 25 | Curtain Housing Assembly, L.S. |
| 25 | Curtain Housing Assembly, R.S. |
| 26 | Thumbscrew (2) |
| 27 | Gasket, Meeting Rail |
| 28 | Washer (2) |
| 29 | WP308685 Whirlpool Microwave Screw |
| 30 | Angle, Top |
| 31 | Strip, Seal |
| 32 | Bracket |
| 33 | Spacer, Block (4) |
| 34 | Screw, Wood 8-15 x .750 |
| 35 | Bracket, R.S. |
| 35 | Bracket, L.S. |
| 36 | Strip, Seal |
| 37 | Angle (2) |
