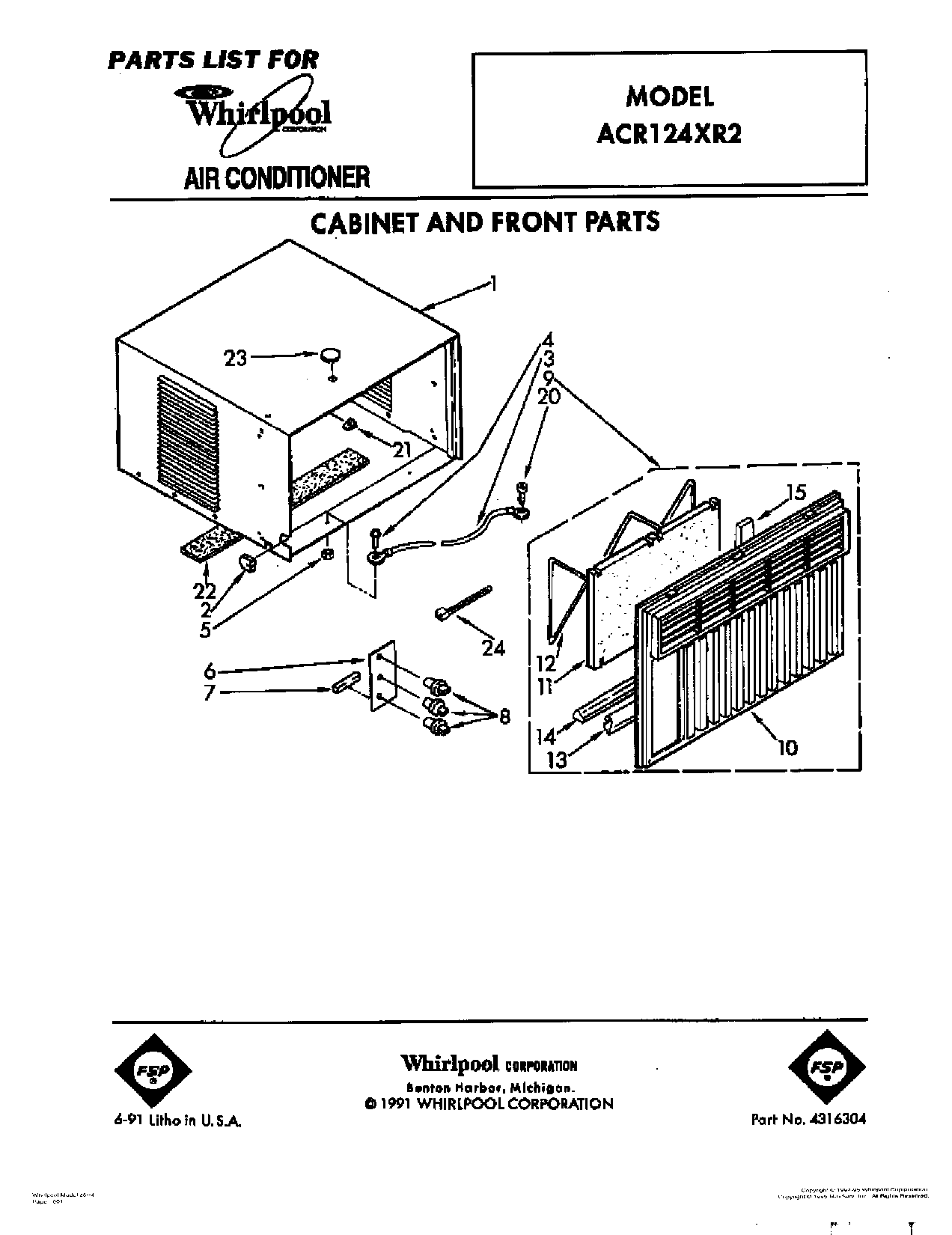

ACR124XR2 01 – CABINET AND FRONT PARTS

Products

Position	Product
1	Cabinet
2	Grommet, Appliance Cable
3	Wire, Ground
4	Screw, 8 x 3/8
5	WP486255 Whirlpool Air Conditioner Nut
6	Plate, Escutcheon
7	Spacer, Escutcheon Plate (3)
8	Knob, Control
9	Front Assembly, Cabinet (Complete)
10	Front, Cabinet
11	Filter
12	Retainer, Filter
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	Seal
15	Seal
20	Screw, 8 x 3/8
21	Clip, Mtg. (2) (Base to Front)
22	Seal
23	Cover, Hole
24	WPW10339879 Whirlpool Wire Tie
