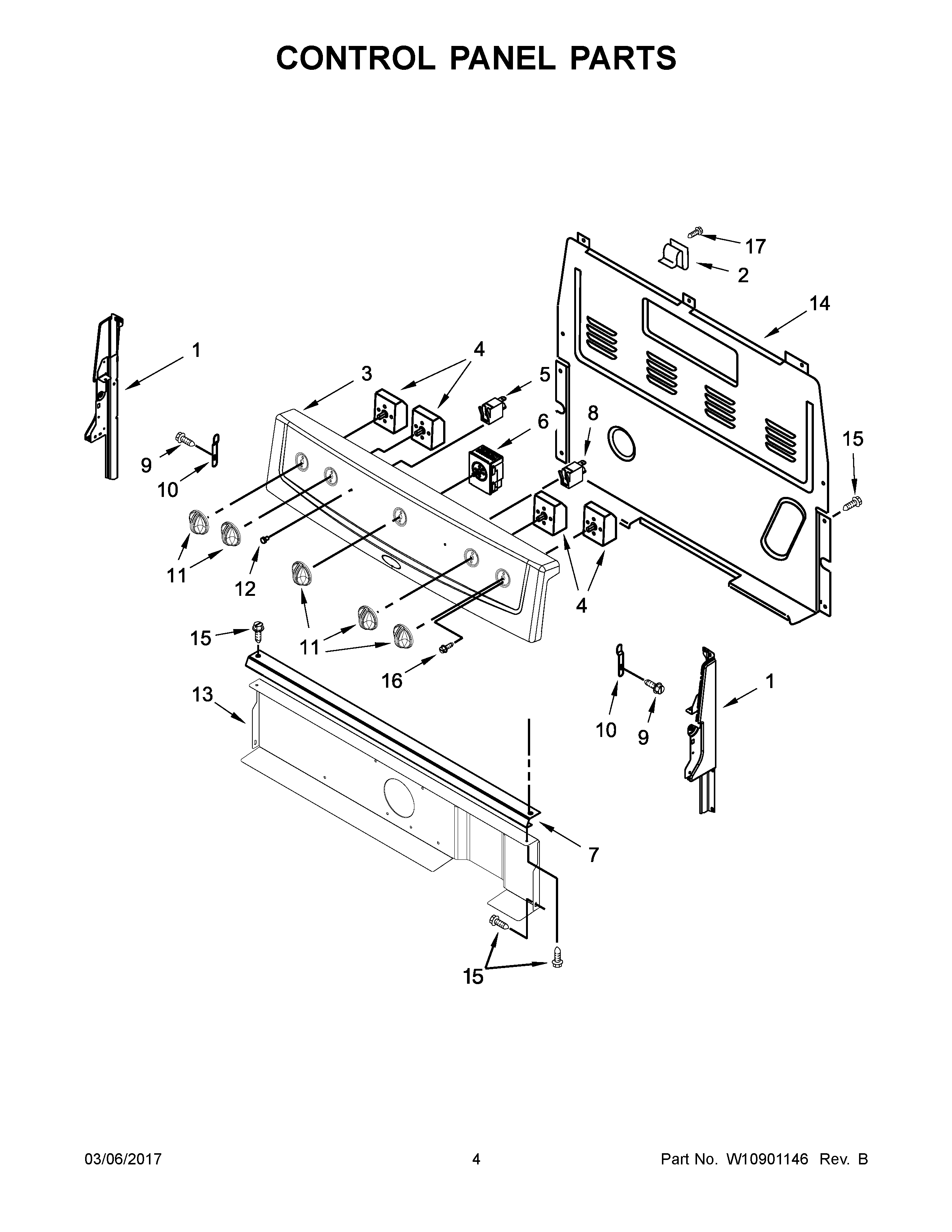

ACR2303MFW0 03 – CONTROL PANEL PARTS

Products

Position	Product
1A	ENDCAP (WHITE (RIGHT))
1	ENDCAP (WHITE (LEFT))
2	MAY 8273564
3	PANEL, BACKGUARD (WHITE)
4A	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4	SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
5	MAY 8523265
6	CONTROL, ELECTRIC
7	BRACKET, CONSOLE MOUNTING
8	MAY 8523266
9	SCREW
10	CLIP, SPRING
11	KNOBS (WHITE)
12	MAY 3196068
13	SHIELD, HEAT
14	COVER, UPPER REAR
15	SCREW
16	SCREW
17	SCREW
