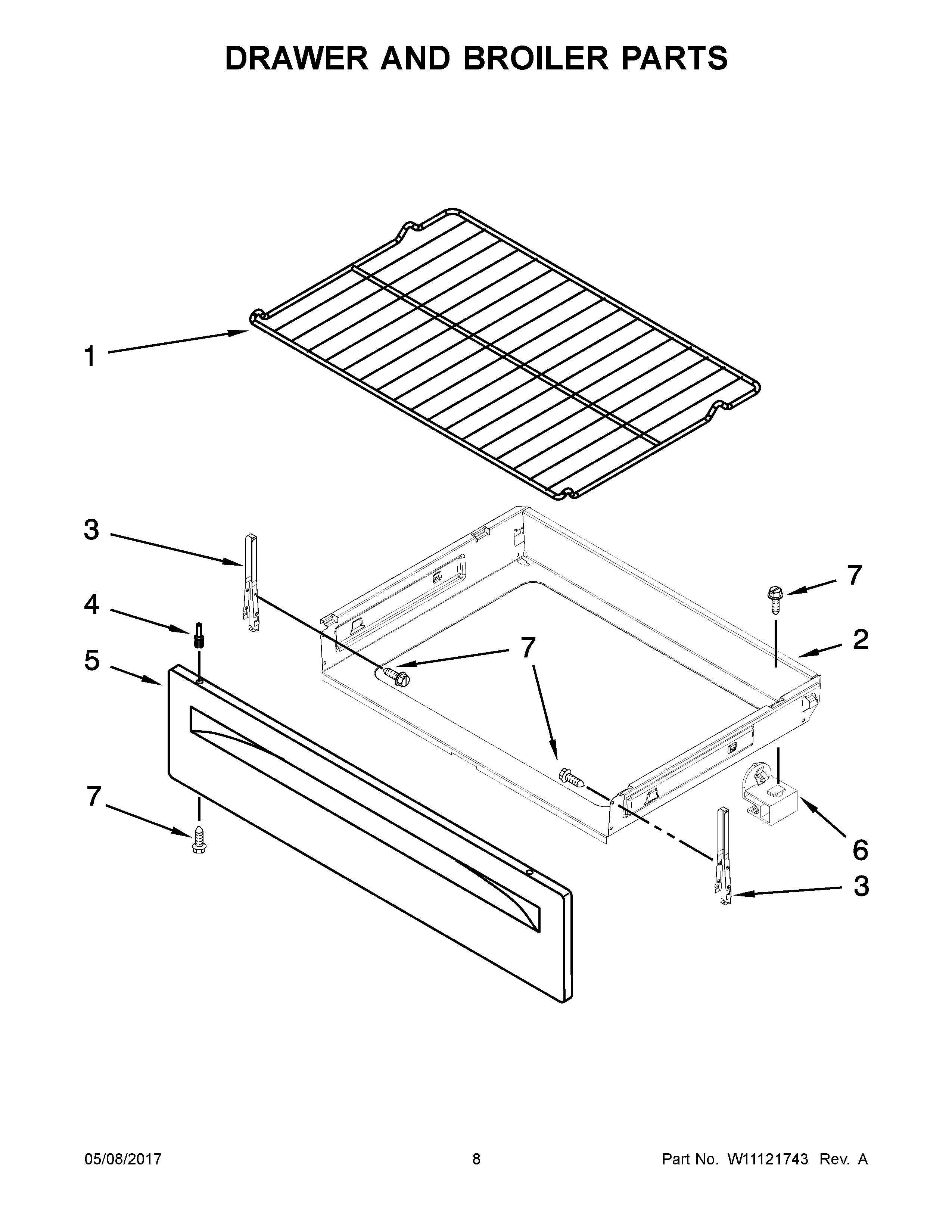

ACR2303MFW1 05 – DRAWER AND BROILER PARTS
Products
| Position | Product |
|---|---|
| 1 | RACK, OVEN |
| 2 | DRAWER, STORAGE |
| 3 | BRACKET, MOUNTING DRAWER |
| 4 | RIVET, PUSH (WHITE) |
| 5 | PANEL, DRAWER FRONT (WHITE) |
| 6 | GLIDE, DRAWER REAR |
| 7 | SCREW |
