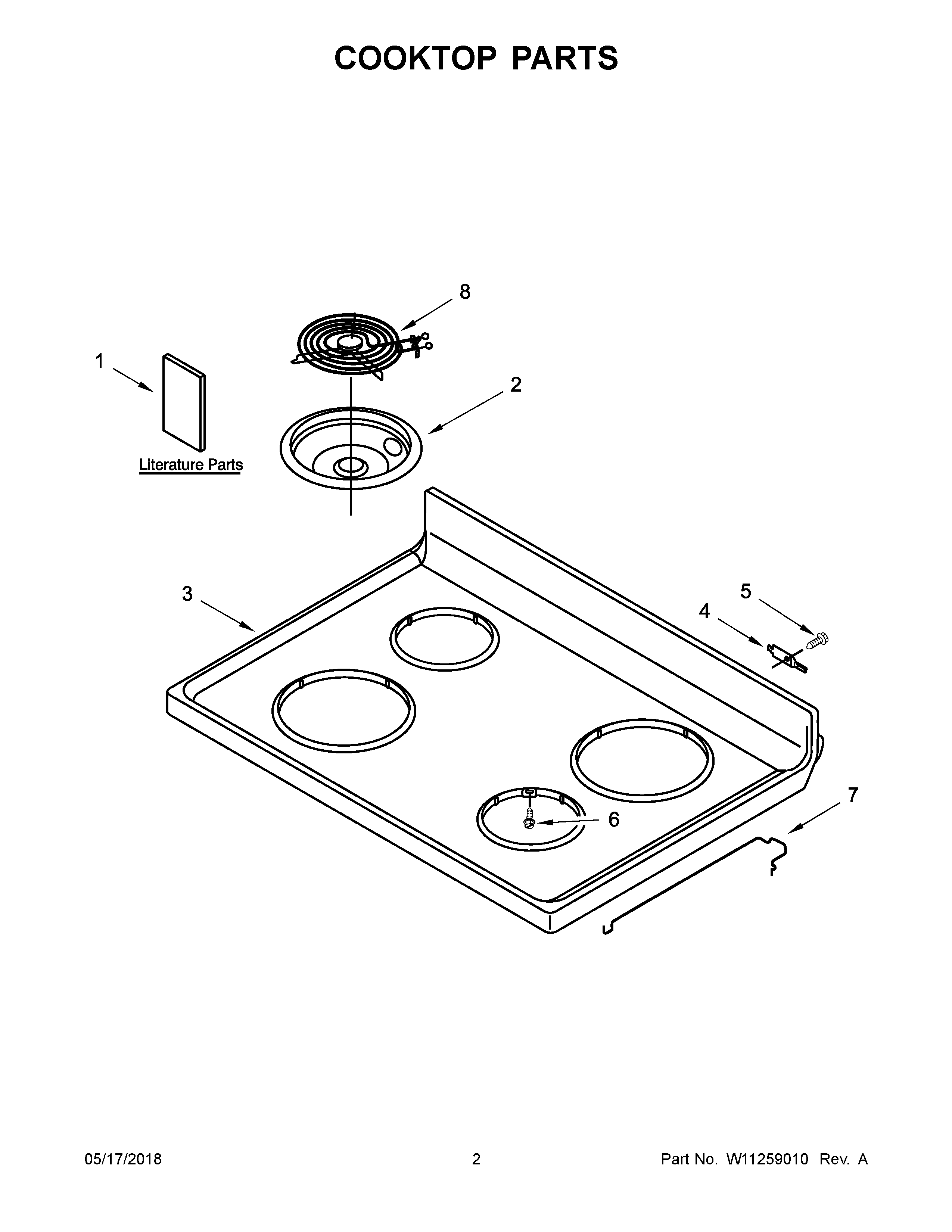

ACR2303MFW2 02 – COOKTOP PARTS

Products

PositionProduct
NIKIT, BARE WIRE ADAPTER BLOCK
NIWIRING HARNESS PARTS, HARNESS, MAIN
NILINER (NOT A SERVICEABLE PART)
NIHARNESS, WIRE (SURFACE UNIT)
1AUSER INSTRUCTIONS
1INSTRUCTIONS, INSTALLATION
1BMAY W11241245
2ABOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR)
2BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR)
3COOKTOP (WHITE)
4HINGE, COOKTOP
5SCREW
6SCREW
7ROD, SUPPORT
8ELEMENT, COIL HEATING (2150W) (LEFT FRONT AND RIGHT REAR)
8ELEMENT, COIL HEATING (1300W) (RIGHT FRONT AND LEFT REAR)
