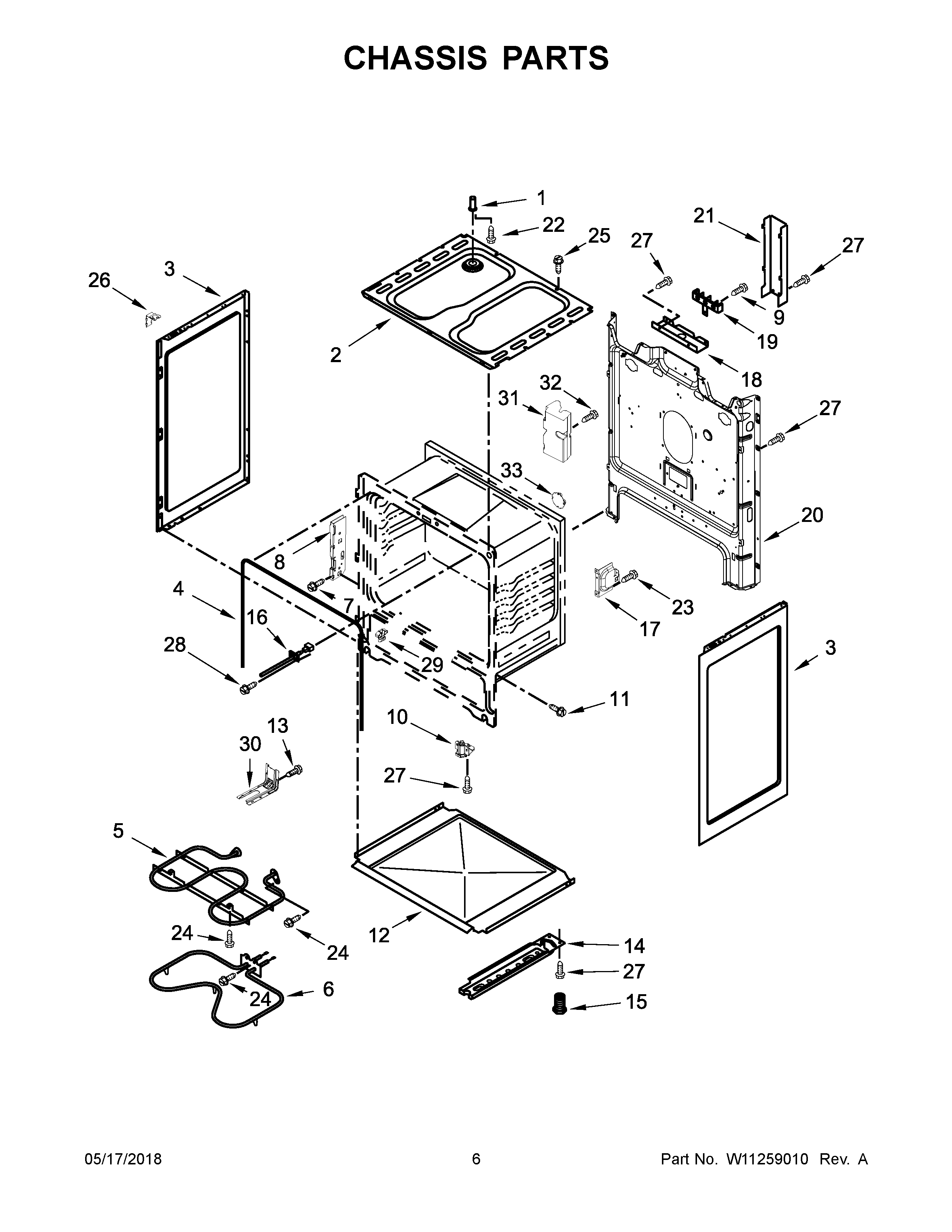

ACR2303MFW2 04 – CHASSIS PARTSadmin2025-04-26T09:13:39+00:00ACR2303MFW2 04 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | INSULATION, WRAP |
| NI | INSULATION, BACK |
| NI | LINER (NOT A SERVICEABLE PART) |
| 1 | TUBE, VENT |
| 2 | BOX, BURNER |
| 3 | PANEL, SIDE (WHITE) |
| 4 | SEAL, DOOR |
| 5 | ELEMENT, BROIL |
| 6 | ELEMENT, BAKE |
| 7 | MAY W10031780 |
| 8 | RECEIVER, HINGE |
| 9 | SCREW |
| 10 | ASSEMBLY, FRONT FOOT |
| 11 | SCREW |
| 12 | RETAINER, INSULATION |
| 13 | SCREW, ANTI-TIP KIT |
| 14A | ASSEMBLY, BASE RAIL (RIGHT) |
| 14 | ASSEMBLY, BASE RAIL (LEFT) |
| 15 | FOOT, LEVELING |
| 16 | SENSOR, OVEN |
| 17 | CLIP, OVEN SUPPORT |
| 18 | BRACKET, SERVICE |
| 19 | BLOCK, TERMINAL |
| 21 | COVER, TERMINAL BLOCK |
| 22 | SCREW |
| 23 | SCREW |
| 24 | SCREW |
| 25 | SCREW |
| 26 | CLIP, PANEL |
| 27 | SCREW |
| 28 | MAY 3400080 |
| 29 | GLIDE, DRAWER FRONT |
| 30 | BRACKET, ANTI-TIP |
| 31 | COUNTERWEIGHT |
| 32 | SCREW |
| 33 | HOLE, COVER LIGHT |
