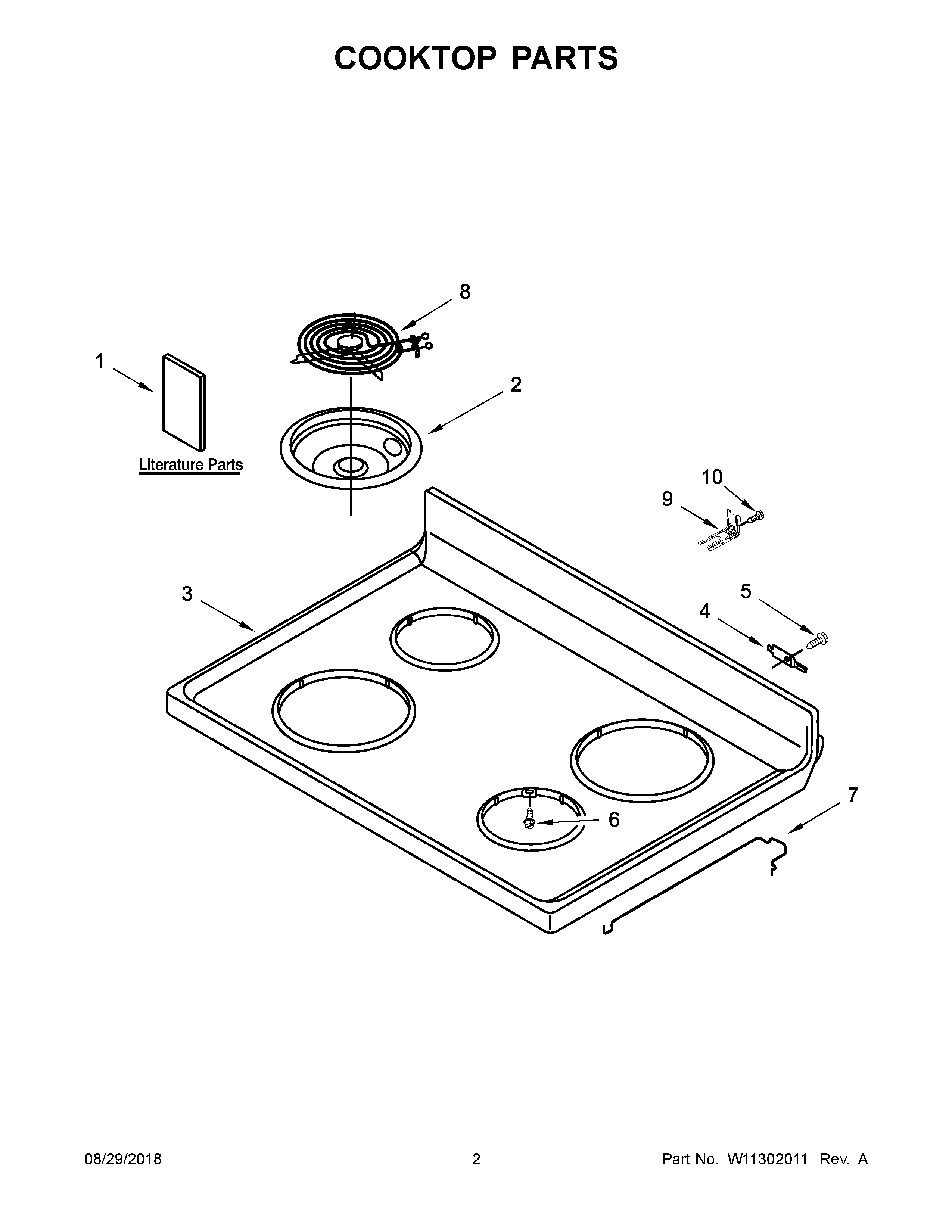

ACR2303MFW3 02 – COOKTOP PARTS

Products

PositionProduct
NIKIT, BARE WIRE ADAPTER BLOCK
NIHARNESS, MAIN
NIHARNESS, COOKTOP
NILINER (NOT A SERVICEABLE PART)
1AUSER INSTRUCTIONS
1INSTRUCTIONS, INSTALLATION
1BMAY W11241245
2ABOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR)
2BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR)
3COOKTOP (WHITE)
4HINGE, COOKTOP
5SCREW
6SCREW
7ROD, SUPPORT
8AELEMENT, COIL HEATING (2150W) (LEFT FRONT AND RIGHT REAR)
8ELEMENT, COIL HEATING (1300W) (RIGHT FRONT AND LEFT REAR)
9BRACKET, ANTI-TIP
10SCREW, ANTI-TIP KIT
