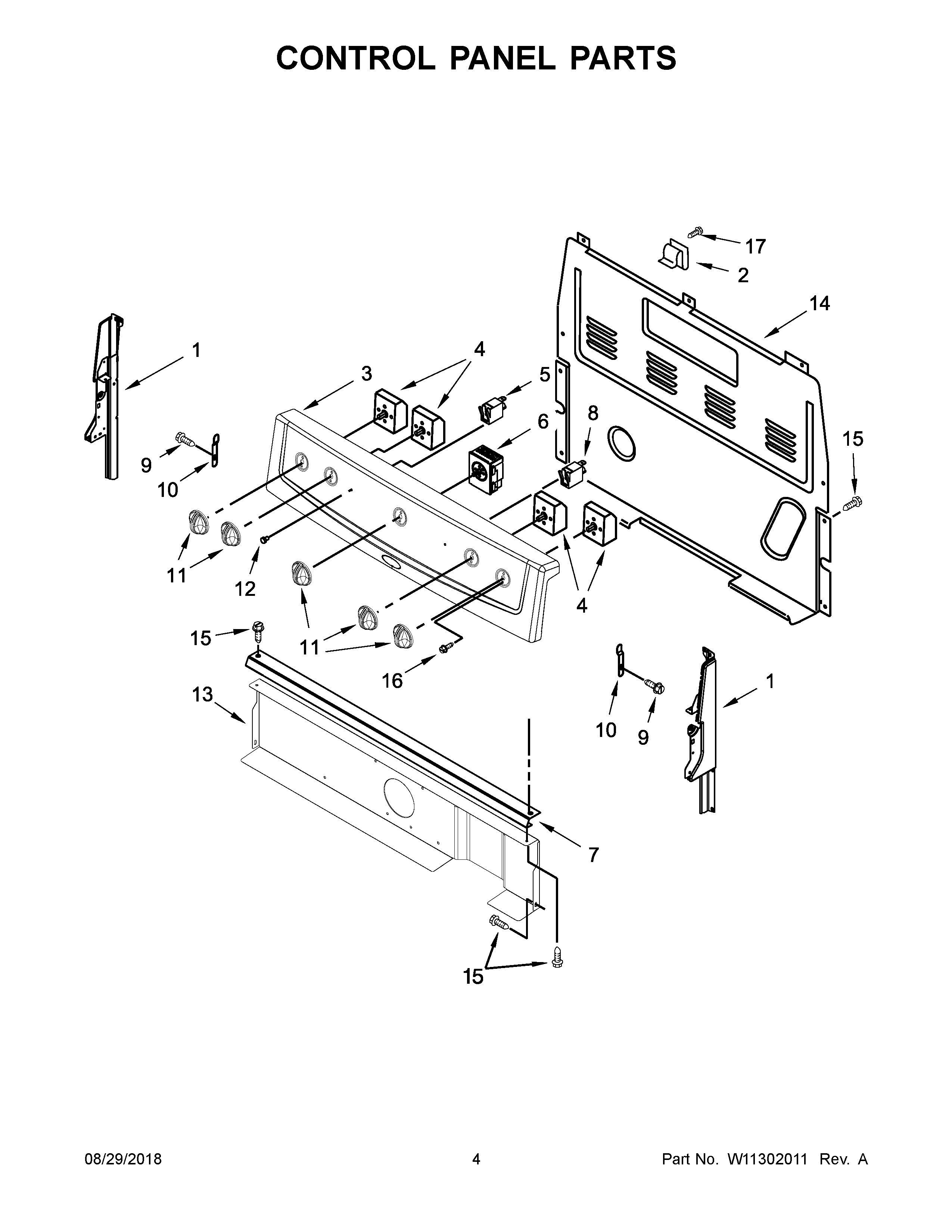

ACR2303MFW3 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AENDCAP (WHITE (RIGHT))
1ENDCAP (WHITE (LEFT))
2MAY 8273564
3PANEL, BACKGUARD (WHITE)
4SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
4ASWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
5MAY 8523265
6CONTROL, ELECTRIC
7BRACKET, CONSOLE MOUNTING
8MAY 8523266
9SCREW
10CLIP, SPRING
11KNOBS (WHITE)
12MAY 3196068
13SHIELD, HEAT
14COVER, UPPER REAR
15SCREW
16SCREW
17SCREW
