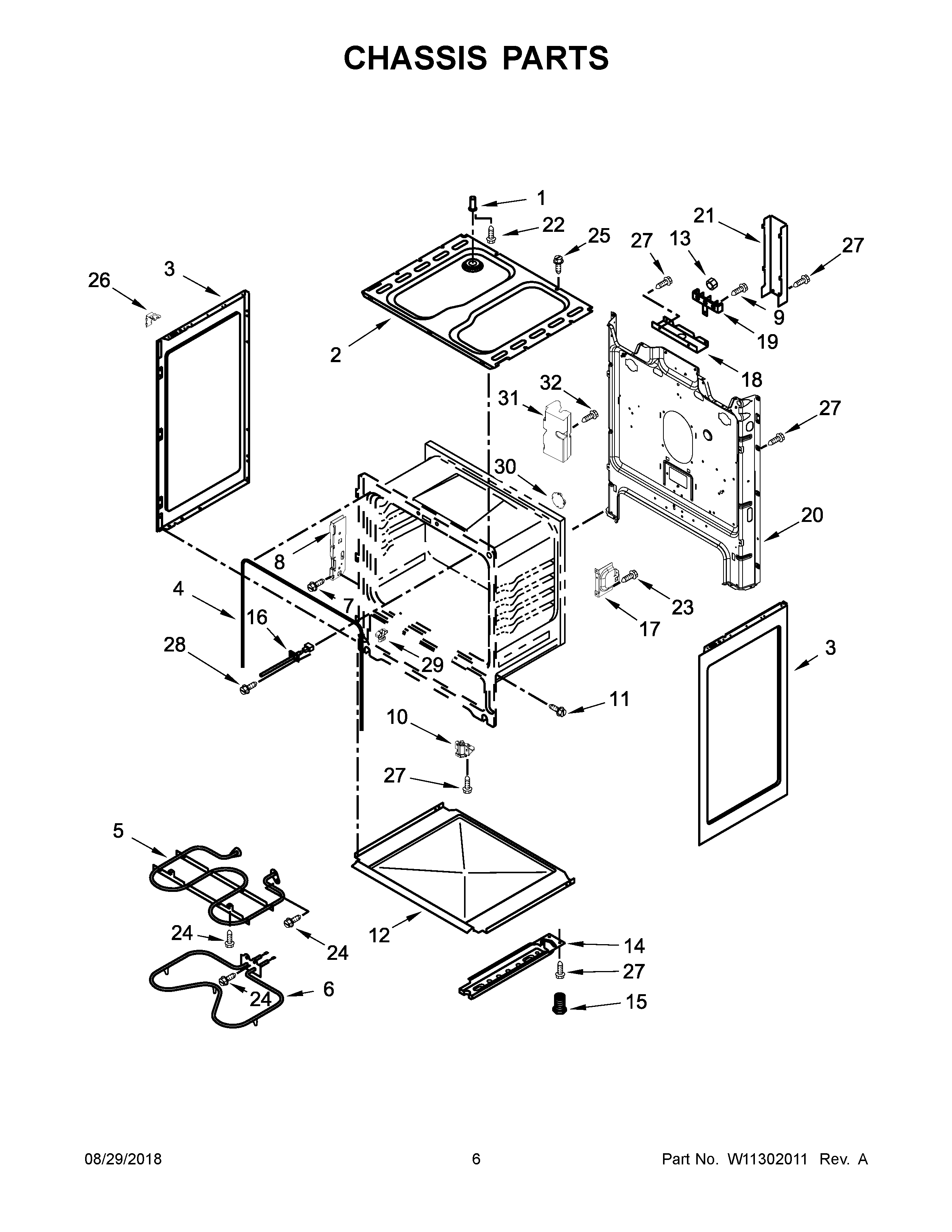

ACR2303MFW3 04 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, WRAP
NI	LINER (NOT A SERVICEABLE PART)
NI	INSULATION, BACK
1	TUBE, VENT
2	BOX, BURNER
3	PANEL, SIDE (WHITE)
4	SEAL, DOOR
5	ELEMENT, BROIL
6	ELEMENT, BAKE
7	MAY W10031780
8	RECEIVER, HINGE
9	SCREW
10	ASSEMBLY, FRONT FOOT
11	SCREW
12	RETAINER, INSULATION
13	NUT
14	ASSEMBLY, BASE RAIL (LEFT)
14A	ASSEMBLY, BASE RAIL (RIGHT)
15	FOOT, LEVELING
16	SENSOR, OVEN
17	CLIP, OVEN SUPPORT
18	BRACKET, SERVICE
19	BLOCK, TERMINAL
21	COVER, TERMINAL BLOCK
22	SCREW
23	SCREW
24	SCREW
25	SCREW
26	CLIP, PANEL
27	SCREW
28	MAY 3400080
29	GLIDE, DRAWER FRONT
30	HOLE, COVER LIGHT
31	COUNTERWEIGHT
32	SCREW
