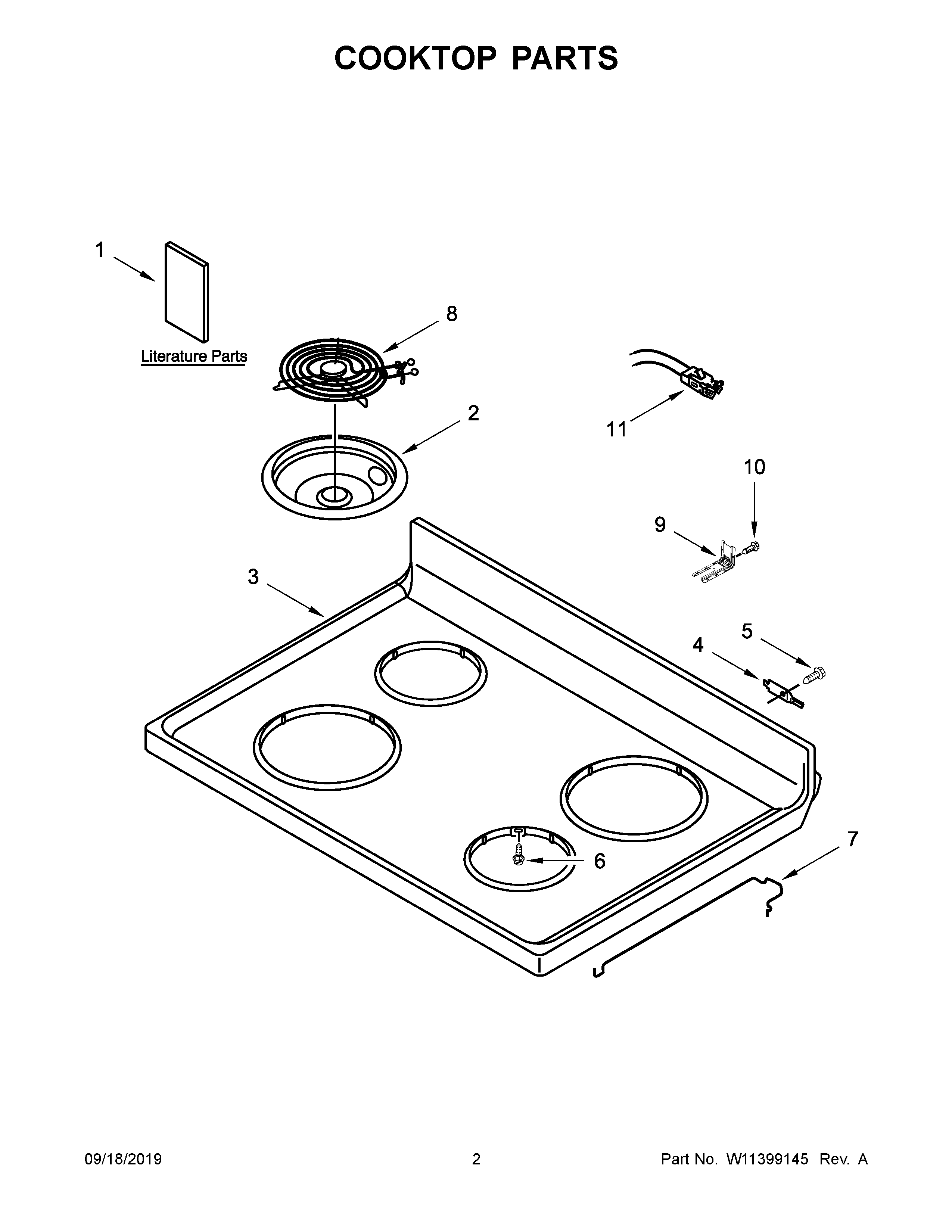

ACR2303MFW4 02 – COOKTOP PARTS

Products

PositionProduct
NIKIT, BARE WIRE ADAPTER BLOCK
NIHARNESS, COOKTOP
NILINER (NOT A SERVICEABLE PART)
NIHARNESS, MAIN
1BMAY W11335894
1AUSER INSTRUCTIONS
1INSTRUCTIONS, INSTALLATION
2BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR)
2ABOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR)
3COOKTOP (WHITE)
4HINGE, COOKTOP
5SCREW
6SCREW
7ROD, SUPPORT
8AELEMENT, COIL HEATING (2400W) (LEFT FRONT AND RIGHT REAR)
8ELEMENT, COIL HEATING (1500W) (RIGHT FRONT AND LEFT REAR)
9BRACKET, ANTI-TIP
10SCREW, ANTI-TIP KIT
11RECEPTACLE, ELEMENT
