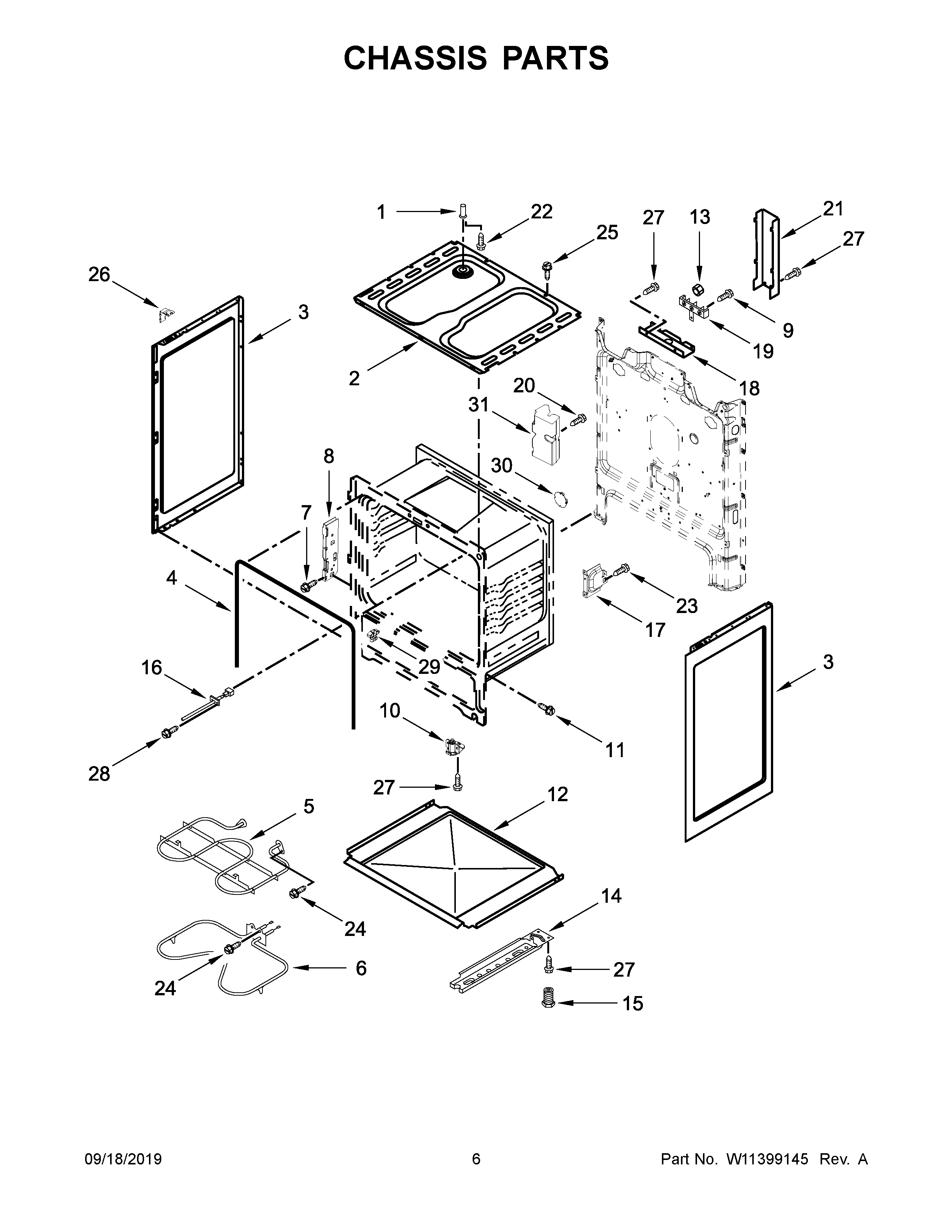

ACR2303MFW4 04 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, WRAP
NI	LINER (NOT A SERVICEABLE PART)
NI	INSULATION, BACK
1	TUBE, VENT
2	BOX, BURNER
3	PANEL, SIDE (WHITE)
4	SEAL, DOOR
5	ELEMENT, BROIL
6	ELEMENT, BAKE
7	MAY W10031780
8	RECEIVER, HINGE
9	SCREW
10	ASSEMBLY, FRONT FOOT
11	SCREW
12	RETAINER, INSULATION
13	NUT
14A	ASSEMBLY, BASE RAIL (RIGHT)
14	ASSEMBLY, BASE RAIL (LEFT)
15	FOOT, LEVELING
16	SENSOR, OVEN
17	CLIP, OVEN SUPPORT
18	BRACKET, SERVICE
19	BLOCK, TERMINAL
20	SCREW
21	COVER, TERMINAL BLOCK
22	SCREW
23	SCREW
24	SCREW
25	SCREW
26	CLIP, PANEL
27	SCREW
28	MAY 3400080
29	GLIDE, DRAWER FRONT
30	HOLE, COVER LIGHT
31	COUNTERWEIGHT
