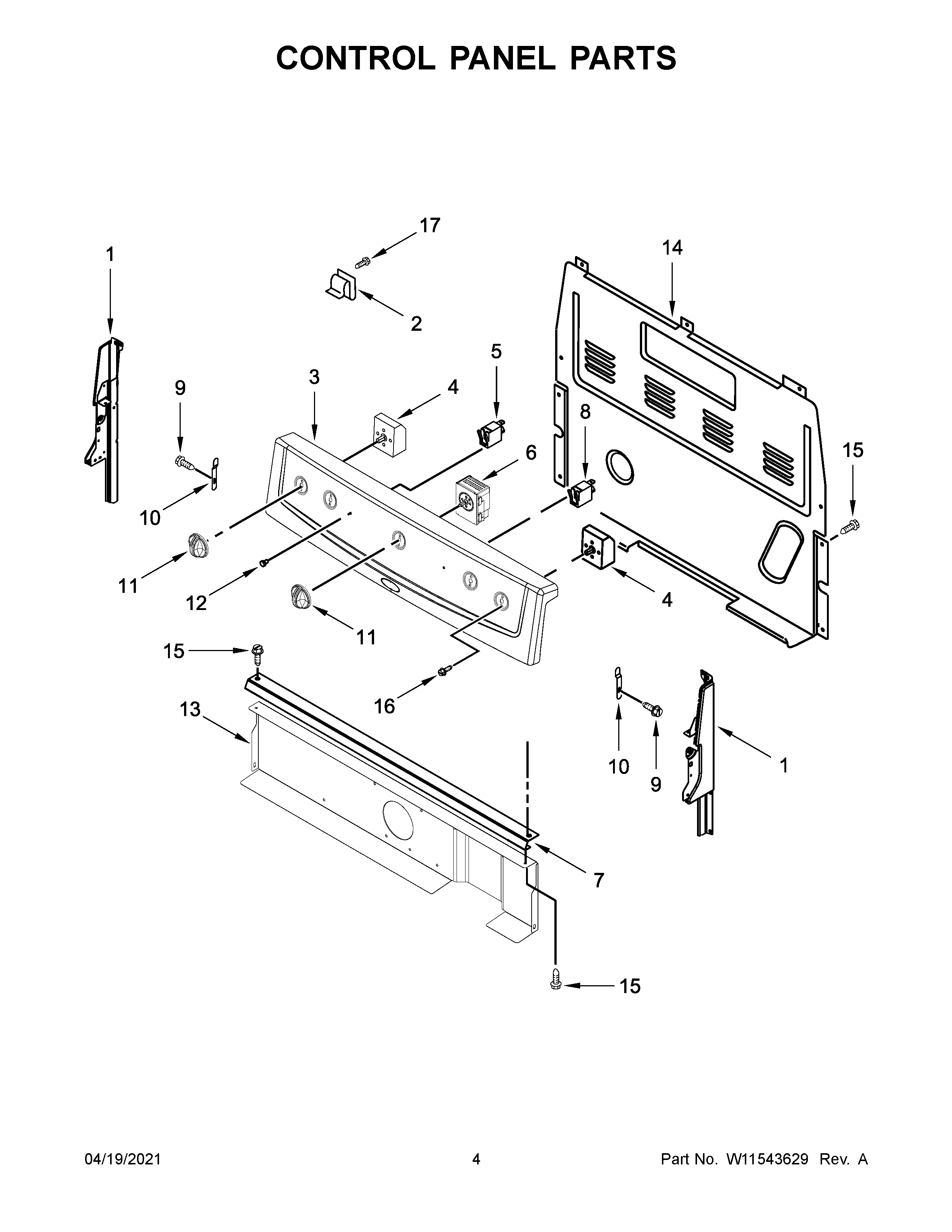

ACR2303MFW5 03 – CONTROL PANEL PARTS

ACR2303MFW5 03 – CONTROL PANEL PARTS

Written by

in

ACR2303MFW5 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AW11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
2WP8273564 Whirlpool Clip
3W11263359 Whirlpool Control Panel
4WP3149400 Whirlpool Oven Infinite Switch
4AWP3148952 Whirlpool Oven Infinite Switch
5WP8523265 Whirlpool Indicator Light
6WP9762215 Whirlpool Oven Switch
7W10525121 Whirlpool Control Bracket
8WP8523266 Whirlpool Indicator Light
9WP3196175 Whirlpool Screw
103196200 Whirlpool Clip
11W11188750 Whirlpool Knob
12WP3196068 Whirlpool Light Lens
13W10134247 Whirlpool Heat Shield
14WP8272473 Whirlpool Rear Cover
15SCREW
16WP3400882 Whirlpool Screw
17WP3196557 Whirlpool Screw
