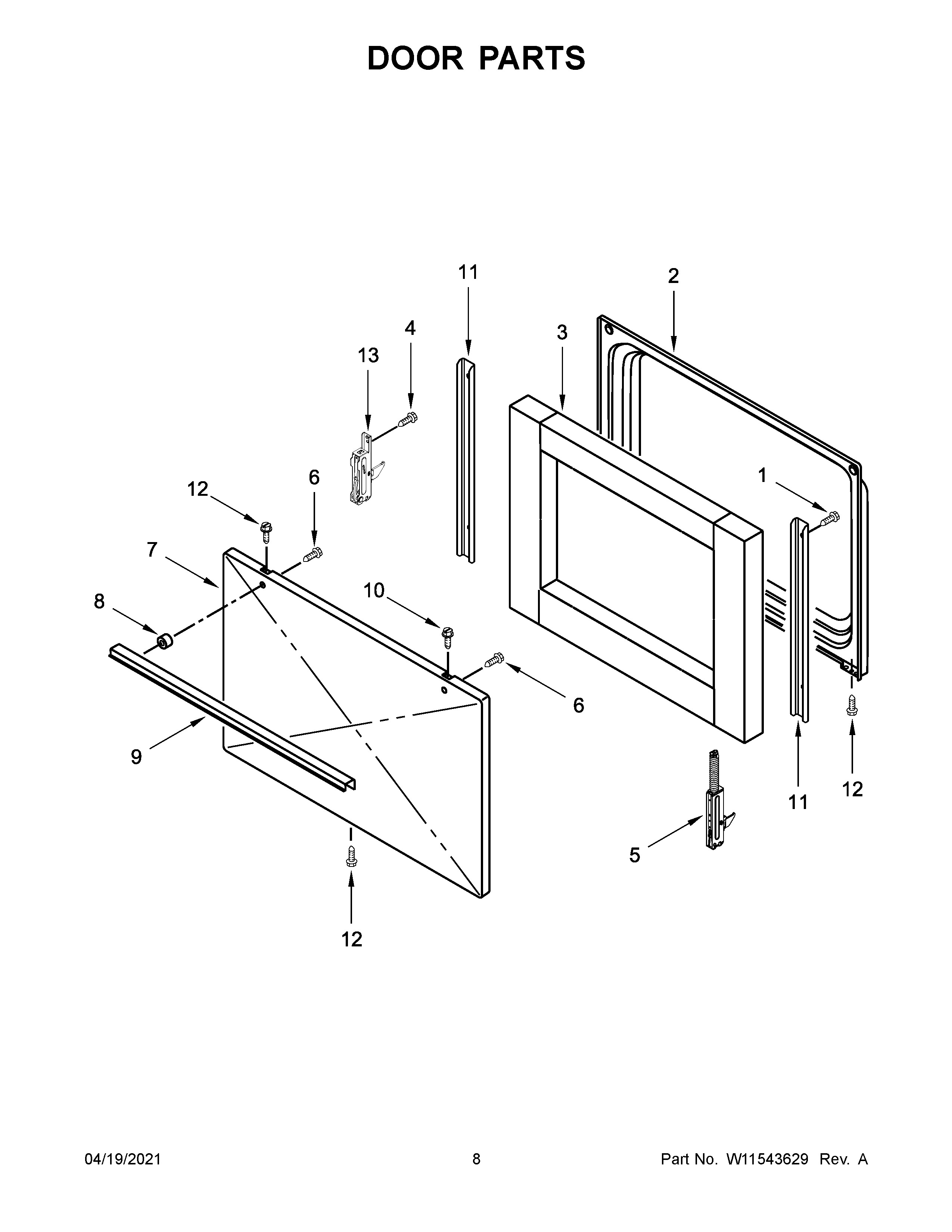

ACR2303MFW5 05 – DOOR PARTS

Products

PositionProduct
1WPW10031790 Whirlpool Screw
29761342 Whirlpool Oven Door Liner
3WPW10278991 Whirlpool Insulation
4W10777162 Whirlpool Screw
5WPW10358157 Whirlpool Door Hinge
6WPW10317886 Whirlpool Screw
7W10903447 Whirlpool Door Panel Assembly
8SPACER, HANDLE
9W10817434 Whirlpool Door Handle
103196558 Whirlpool Oven Screw
11W11699790 Whirlpool Retainer
12WP3196175 Whirlpool Screw
13WPW10299227 Whirlpool Range Door Hinge
