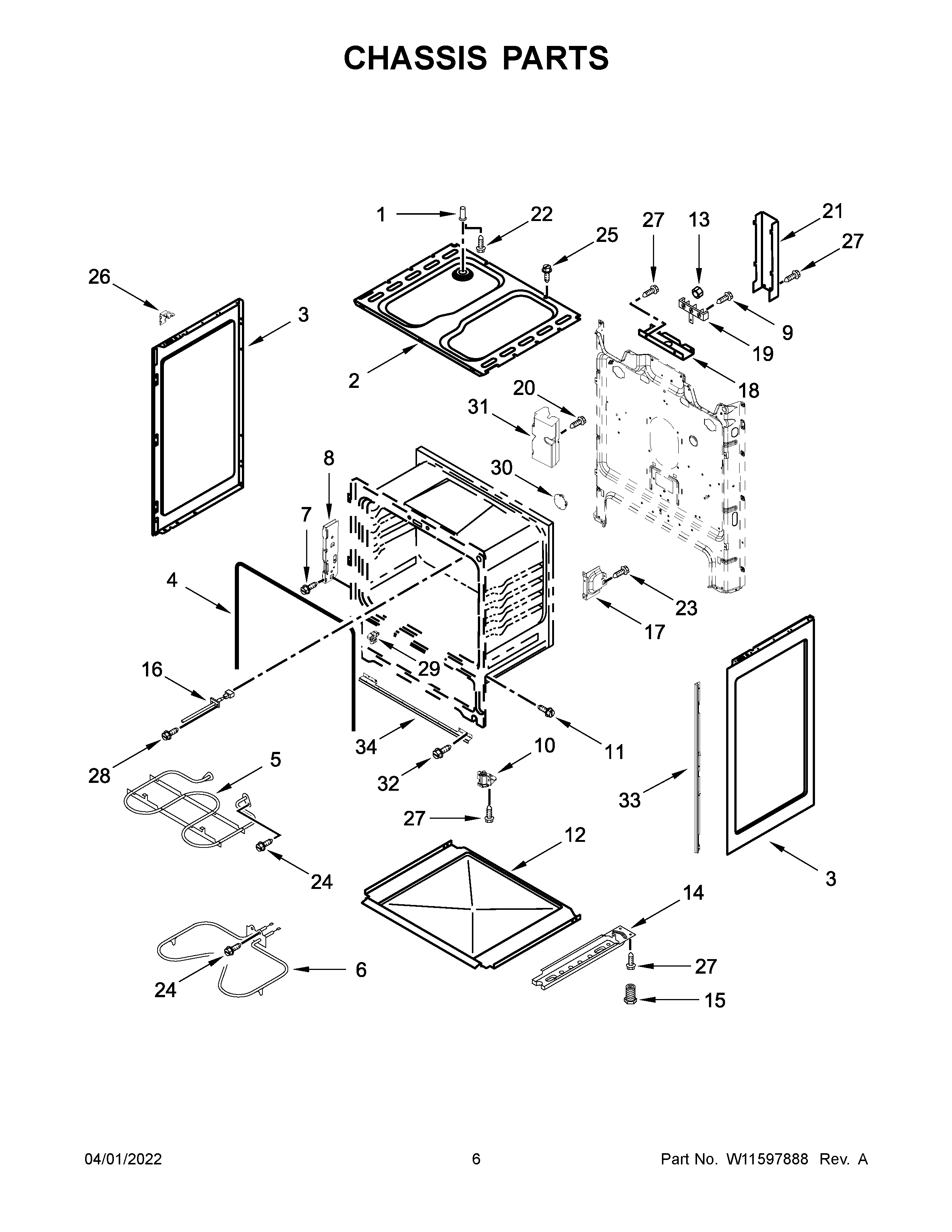

ACR2303MFW7 04 – CHASSIS PARTS

Products

Position	Product
NI	WPW10208653 Whirlpool Insulation
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11311894 Whirlpool Insulation
1	W11253586 Whirlpool Vent Tube
2	W11699791 Whirlpool Burner Box
3	WPW10575396 Whirlpool Side Panel
4	W11542153 Whirlpool Door Gasket
5	W10856603 Whirlpool Broil Element
6	W11182108 Whirlpool Bake Element
7	W10777162 Whirlpool Screw
8	W10647259 Whirlpool Hinge Receiver
9	WP3400016 Whirlpool Screw Assembly
10	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
11	WPW10067840 Whirlpool Screw
12	WP8054068 Whirlpool Retainer
13	WP3400029 Whirlpool Dishwasher Nut
14A	WPW10306546 Whirlpool Base Rail
15	WPW10058460 Whirlpool Appliance Levelling Leg
16	WPW10181986 Whirlpool Oven Sensor
17	W10404688 Whirlpool Bracket Support
18	W11728255 Whirlpool Service Bracket
19	WPW10245259 Whirlpool Terminal Block
20	W11135756 Whirlpool Screw Torx
21	WPW10326122 Whirlpool Black Cover
22	WP3196567 Whirlpool Screw
23	WP3196557 Whirlpool Screw
24	WP3196154 Whirlpool Screw Assembly
25	WP3196175 Whirlpool Screw
26	W10137382 Whirlpool Clip
27	SCREW
28	Screw
29	W10807823 Whirlpool Drawer Glide
30	HOLE, COVER LIGHT
31	W11135752 Whirlpool Anchor Tip
32	W11169708 Whirlpool Screw
33	W11594227 Whirlpool Rail Mounting
34	W11464547 Whirlpool Support Bracket
