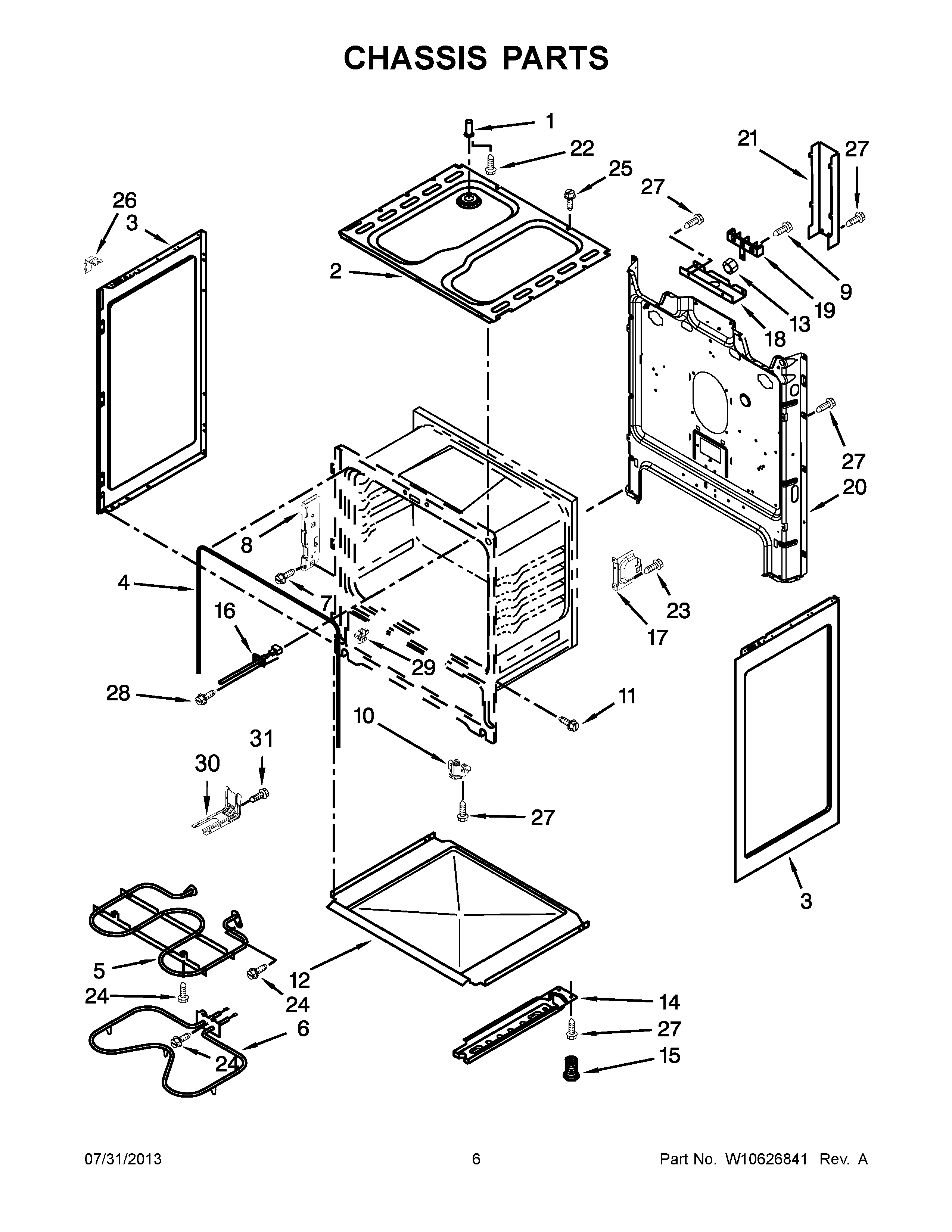

ACR3130BAW0 04 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, WRAP
NI	INSULATION, BACK
1	MAY 3169143
2	BOX, BURNER
3	MAY W10322769
4	SEAL, DOOR
5	ELEMENT, BROIL
6	ELEMENT, BAKE
7	MAY W10031780
8	RECEIVER, HINGE
9	SCREW
10	ASSEMBLY, FRONT FOOT
11	SCREW
12	RETAINER, INSULATION
13	WP7103P027-60 Whirlpool Nut
14A	ASSEMBLY, BASE RAIL (RIGHT)
14	ASSEMBLY, BASE RAIL (LEFT)
15	FOOT, LEVELING
16	SENSOR, OVEN
17	BRACKET, OVEN SUPPORT
18	BRACKET, SERVICE
19	BLOCK, TERMINAL
20	BACK, MAIN
21	COVER, TERMINAL BLOCK
22	SCREW
23	SCREW
24	SCREW
25	SCREW
26	CLIP, PANEL
27	SCREW
28	SCREW
29	GLIDE, DRAWER
30	BRACKET, ANTI-TIP
31	SCREW, ANTI-TIP KIT
