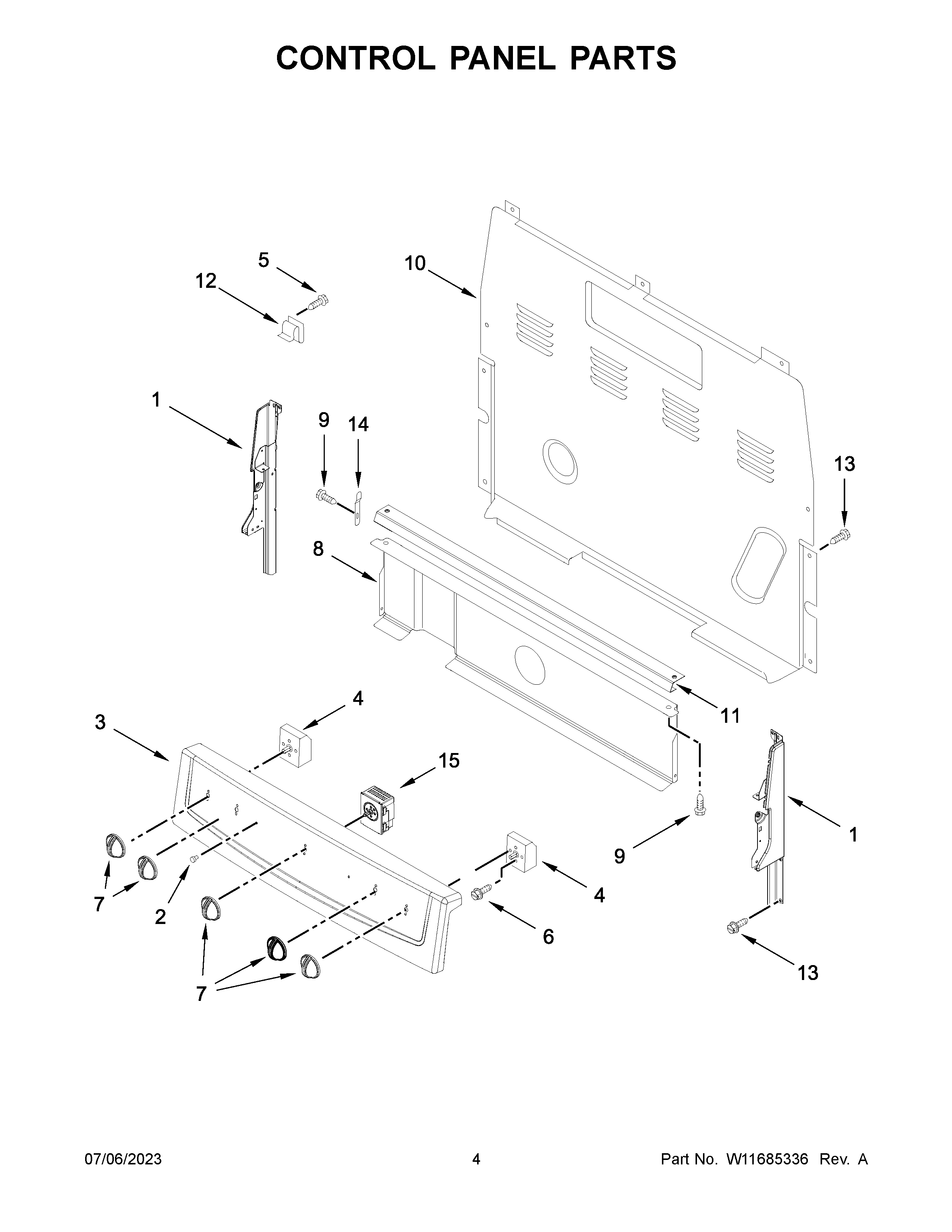

ACR4203MNB0 03 – CONTROL PANEL PARTS

ACR4203MNB0 03 – CONTROL PANEL PARTS

Written by

in

ACR4203MNB0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1CW11219370 Whirlpool Endcap Panel
1BW11219365 Whirlpool Panel Endcap
1AW11219665 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
2WP3196068 Whirlpool Light Lens
3PANEL, CONTROL (BLACK)
3APANEL, CONTROL (WHITE)
4WP3148952 Whirlpool Oven Infinite Switch
4AWP3149400 Whirlpool Oven Infinite Switch
5WP3196557 Whirlpool Screw
6WP3400882 Whirlpool Screw
7W11210997 Whirlpool Knob
7AW11188750 Whirlpool Knob
8W10134247 Whirlpool Heat Shield
9WP3196175 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12WP8273564 Whirlpool Clip
13SCREW
143196200 Whirlpool Clip
15WP9762215 Whirlpool Oven Switch
