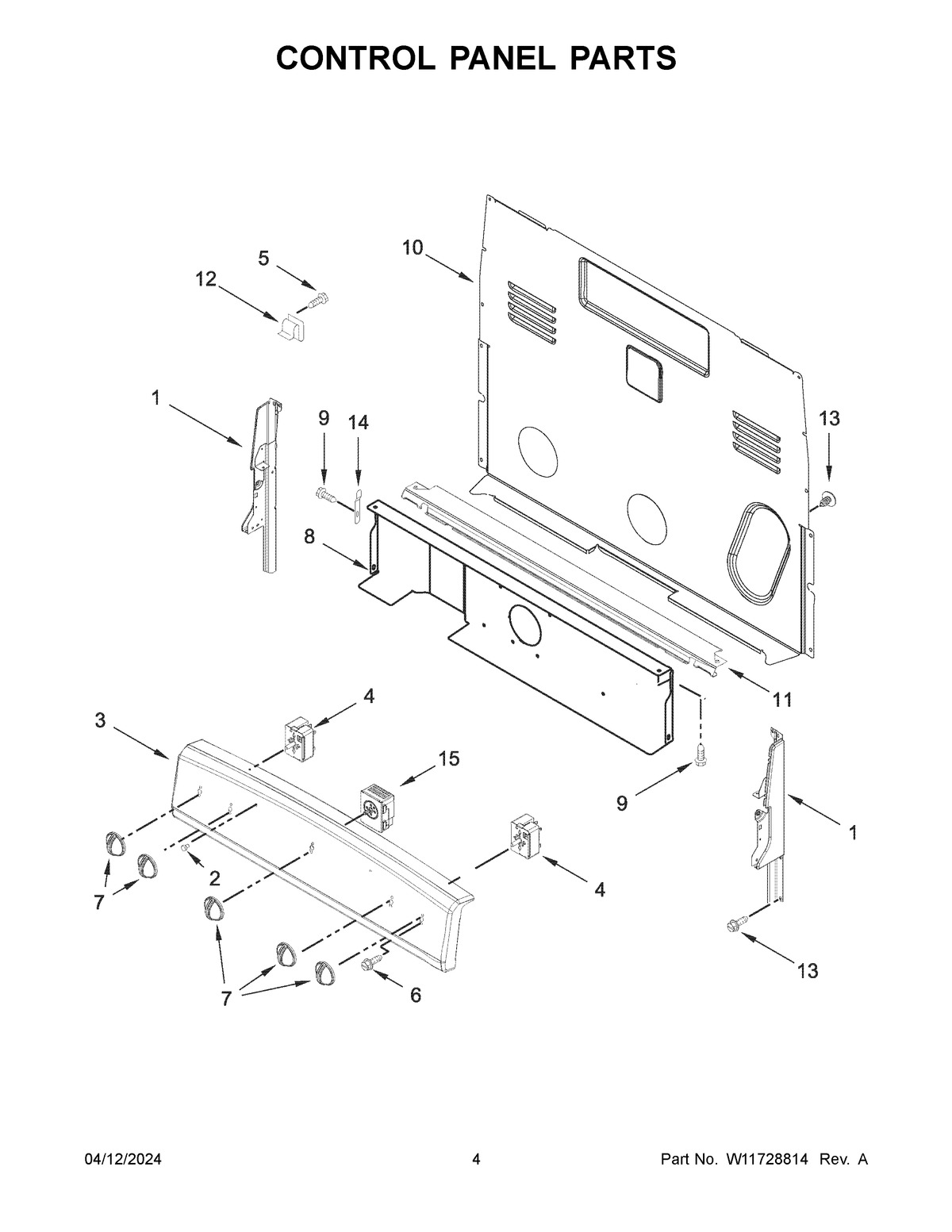

ACR4203MNB1 03 – CONTROL PANEL PARTS

Products

Position	Product
1C	W11219370 Whirlpool Endcap Panel
1B	W11219365 Whirlpool Panel Endcap
1A	W11219665 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
2	WP3196068 Whirlpool Light Lens
3	PANEL, CONTROL (BLACK)
3A	PANEL, CONTROL (WHITE)
4	WP3148952 Whirlpool Oven Infinite Switch
4A	WP3149400 Whirlpool Oven Infinite Switch
5	WP3196557 Whirlpool Screw
6	WP3400882 Whirlpool Screw
7	W11210997 Whirlpool Knob
7A	W11188750 Whirlpool Knob
8	W10134247 Whirlpool Heat Shield
9	WP3196175 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	W10525121 Whirlpool Control Bracket
12	WP8273564 Whirlpool Clip
13	SCREW
14	3196200 Whirlpool Clip
15	WP9762215 Whirlpool Oven Switch
