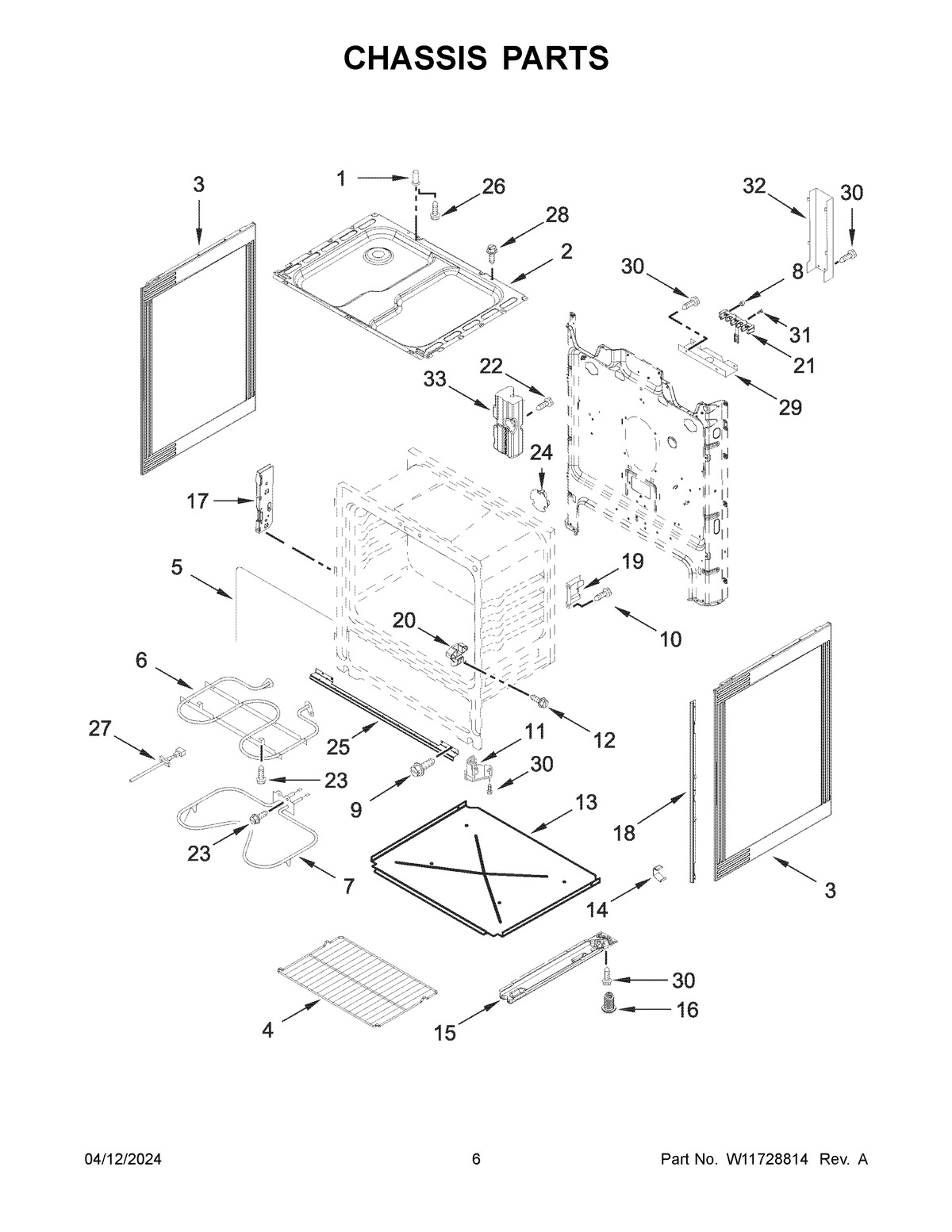

ACR4203MNB1 04 – CHASSIS PARTS

Products

Position	Product
NI	WPW10208653 Whirlpool Insulation
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	W11311894 Whirlpool Insulation
1	W11253586 Whirlpool Vent Tube
2	W11699791 Whirlpool Burner Box
3A	WPW10575396 Whirlpool Side Panel
3	W11730303 Whirlpool Side Panel
4	RACK-OVEN
5	W11542153 Whirlpool Door Gasket
6	W10856603 Whirlpool Broil Element
7	W11182108 Whirlpool Bake Element
8	WP3400029 Whirlpool Dishwasher Nut
9	W11169708 Whirlpool Screw
10	WP3196557 Whirlpool Screw
11	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
12	WPW10067840 Whirlpool Screw
13	WP8054068 Whirlpool Retainer
14	W10137382 Whirlpool Clip
15A	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
17	W10647259 Whirlpool Hinge Receiver
18	W11594227 Whirlpool Rail Mounting
19	W10404688 Whirlpool Bracket Support
20	W10807823 Whirlpool Drawer Glide
21	WPW10245259 Whirlpool Terminal Block
22	W11135756 Whirlpool Screw Torx
23	WP3196174 Whirlpool Screw
24	HOLE, COVER LIGHT
25	W11464547 Whirlpool Support Bracket
26	WP3196567 Whirlpool Screw
27	WPW10181986 Whirlpool Oven Sensor
28	WP3196175 Whirlpool Screw
29	W11728255 Whirlpool Service Bracket
30	SCREW
31	WP3400016 Whirlpool Screw Assembly
32	WPW10326122 Whirlpool Black Cover
33	W11135752 Whirlpool Anchor Tip
