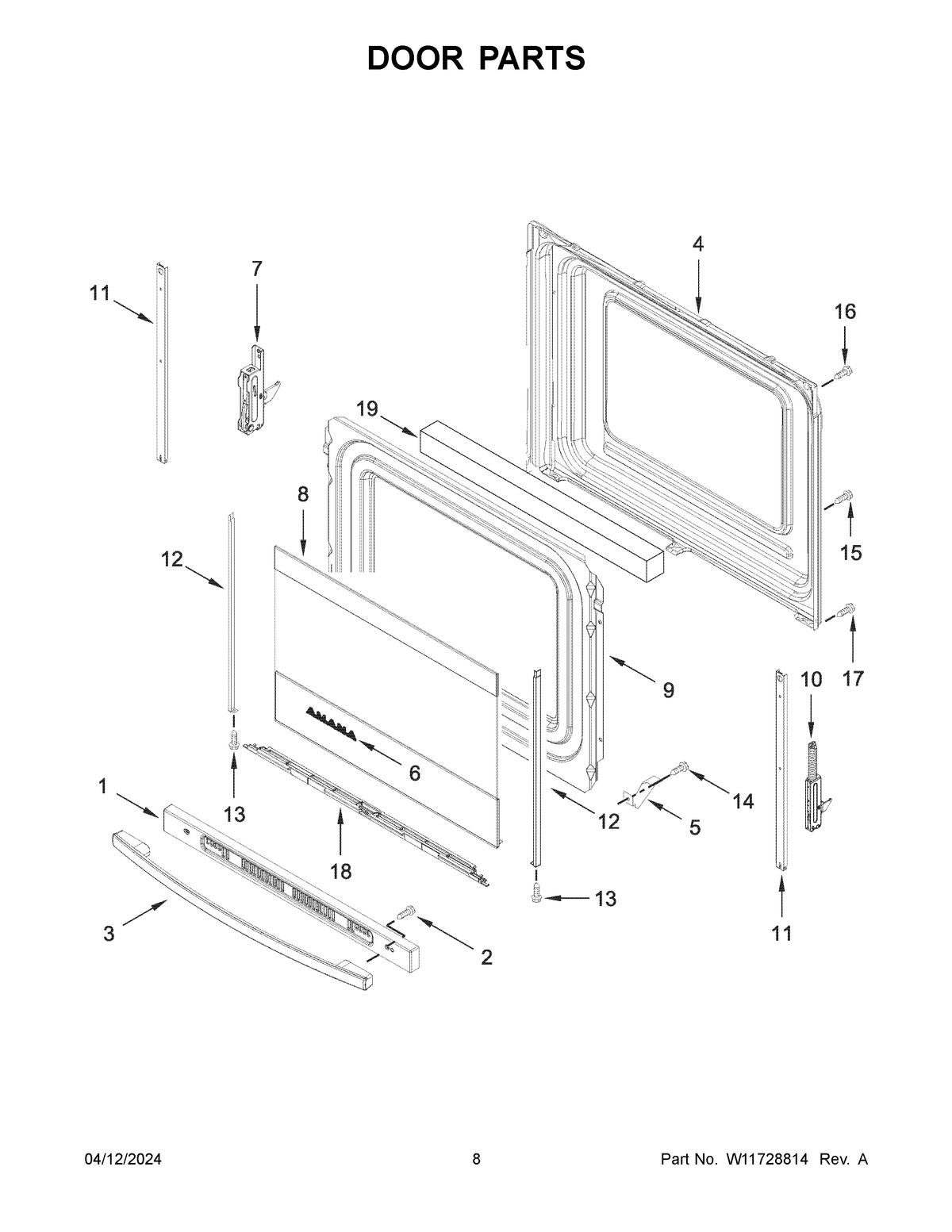

ACR4203MNB1 05 – DOOR PARTS

Products

Position	Product
1A	W10817433 Whirlpool Vent Trim
1	TRIM-VENT
2	W10817436 Whirlpool Screw
3A	W10817434 Whirlpool Door Handle
3	WPW10323589 Whirlpool Door Handle
4	9761342 Whirlpool Oven Door Liner
5	W10137382 Whirlpool Clip
6	WPW10299227 Whirlpool Range Door Hinge
7	HINGE, DOOR (PASSIVE
8	W11686860 Whirlpool Door Glass
8A	W11688547 Whirlpool Glass Door
9	W11699790 Whirlpool Retainer
10	WPW10299225 Whirlpool Door Hinge
11	W11502236 Whirlpool Door Trim
12A	W10761014 Whirlpool Right Door Trim
12C	WP8523166 Whirlpool Door Trim
12B	WP8523172 Whirlpool Left Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
13	WP355214 Whirlpool Screw
14	WP3196175 Whirlpool Screw
15	WPW10031790 Whirlpool Screw
16	WPW10200660 Whirlpool Range Oven Door Handle Screw
17	W10777162 Whirlpool Screw
18	W11569689 Whirlpool Door Trim
18A	W11594186 Whirlpool Door Trim
19B	W10849465 Whirlpool Nameplate
19A	W10846751 Whirlpool Nameplate
19	WPW10278991 Whirlpool Insulation
