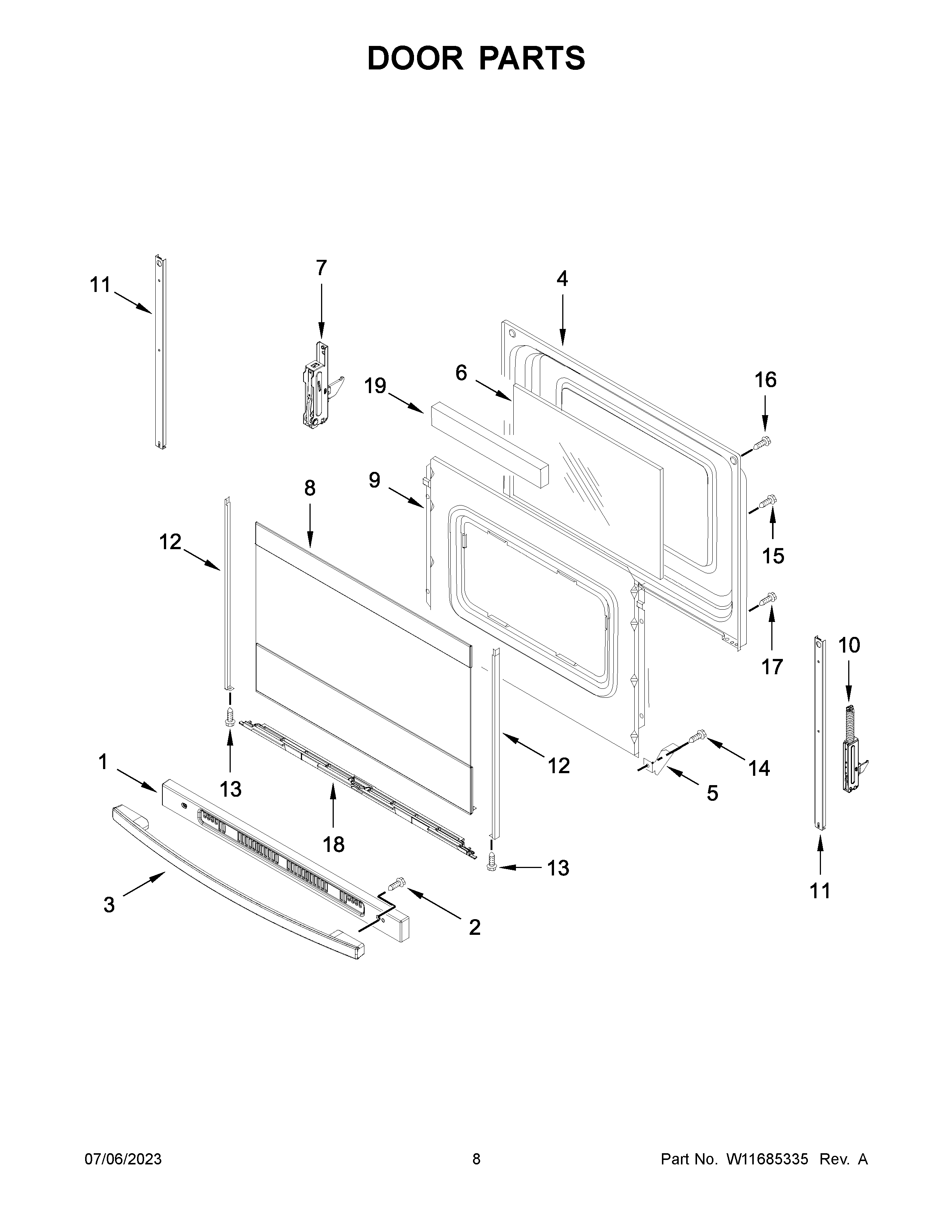

ACR4203MNS0 05 – DOOR PARTS

Products

Position	Product
1	TRIM-VENT
2	W10817436 Whirlpool Screw
3	WPW10323589 Whirlpool Door Handle
4	9761342 Whirlpool Oven Door Liner
5	W10137382 Whirlpool Clip
6	W11399628 Whirlpool Door Glass
7	WPW10299227 Whirlpool Range Door Hinge
8	W11686860 Whirlpool Door Glass
9	W11699790 Whirlpool Retainer
10	WPW10299225 Whirlpool Door Hinge
11	W11502236 Whirlpool Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
12A	W10761014 Whirlpool Right Door Trim
13	WP355214 Whirlpool Screw
14	WP3196175 Whirlpool Screw
15	WPW10031790 Whirlpool Screw
16	WPW10200660 Whirlpool Range Oven Door Handle Screw
17	W10777162 Whirlpool Screw
18	W11440159 Whirlpool Mounting Bracket
19	WPW10278991 Whirlpool Insulation
