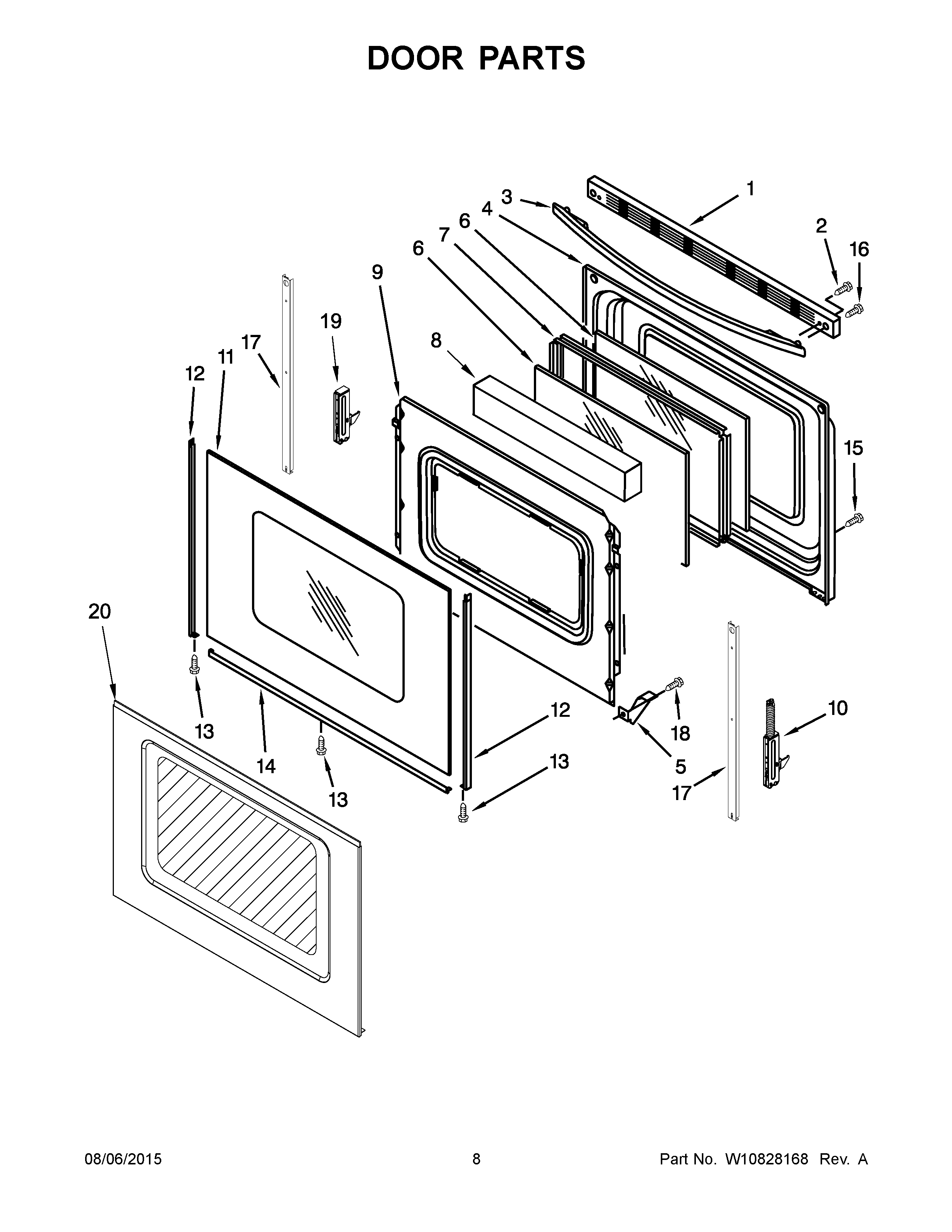

ACR4303MES0 05 – DOOR PARTS

Products

Position	Product
1A	TRIM, TOP (BLACK)
1	TRIM, TOP (WHITE)
2	SCREW
3A	HANDLE, DOOR (BLACK)
3B	HANDLE, DOOR (STAINLESS)
3	HANDLE, DOOR (WHITE)
4	LINER, DOOR
5	CLIP, PANEL
6	GLASS, INNER
7	FRAME, GLASS
8	INSULATION, DOOR STRIP
9	RETAINER, INSULATION
10	HINGE, ACTIVE
11	Glass, Outer (White)
11A	GLASS, OUTER (BLACK)
12	TRIM, SIDE (WHITE (RIGHT))
12B	TRIM, SIDE (BLACK (RIGHT))
12C	TRIM, SIDE (BLACK (LEFT))
12A	TRIM, SIDE (WHITE (LEFT))
13	MAY 3196160
14A	TRIM, LOWER (BLACK)
14	TRIM, LOWER (WHITE)
15	SCREW
16	SCREW
17	STRAP, DOOR
18	SCREW
19	HINGE, DOOR (PASSIVE)
20	GLASS, OUTER (STAINLESS)
