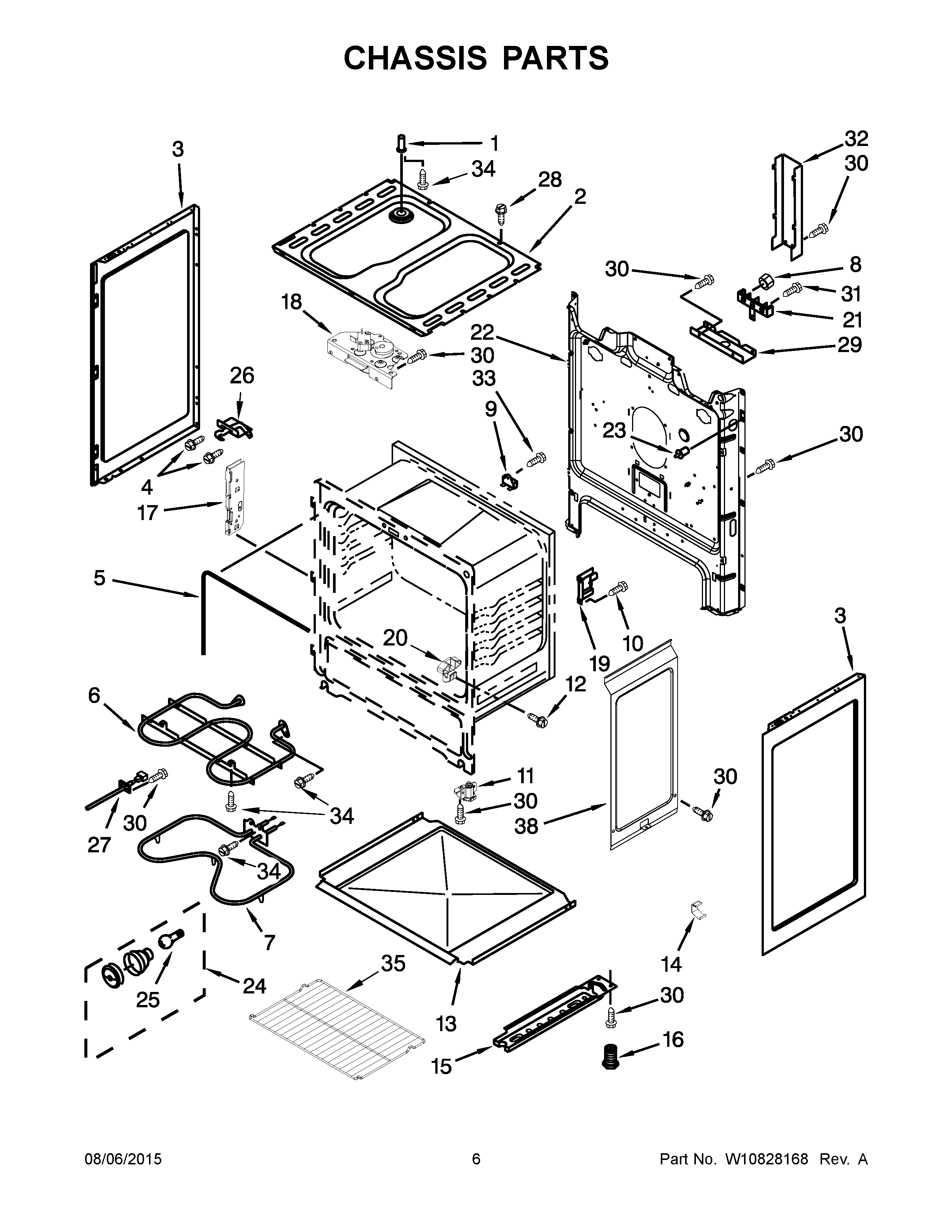

ACR4303MEW0 04 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, BACK
NI	INSULATION, WRAP
1	MAY 3169143
2	BOX, BURNER
3	PANEL, SIDE (WHITE)
3A	PANEL, SIDE (BLACK)
4	SCREW
5	SEAL, DOOR
6	ELEMENT, BROIL
7	ELEMENT, BAKE
8	NUT
9	FUSE, THERMAL
10	SCREW
11	ASSEMBLY, FRONT FOOT
12	SCREW
13	RETAINER, INSULATION
14	CLIP, PANEL
15A	ASSEMBLY, BASE RAIL (RIGHT)
15	ASSEMBLY, BASE RAIL (LEFT)
16	FOOT, LEVELING
17	RECEIVER, HINGE
18	ASSEMBLY, DOOR LATCH (REAR)
19	CLIP, OVEN SUPPORT
20	GLIDE, DRAWER FRONT
21	BLOCK, TERMINAL
22	BACK, MAIN
23	SCREW
24	ASSEMBLY, LIGHT
25	BULB, OVEN LIGHT
26	ASSEMBLY, DOOR LATCH (FRONT)
27	SENSOR, OVEN
28	SCREW
29	BRACKET, SERVICE
30	SCREW
31	SCREW
32	COVER, TERMINAL BLOCK
33	SCREW
34	SCREW
35	RACK, OVEN
