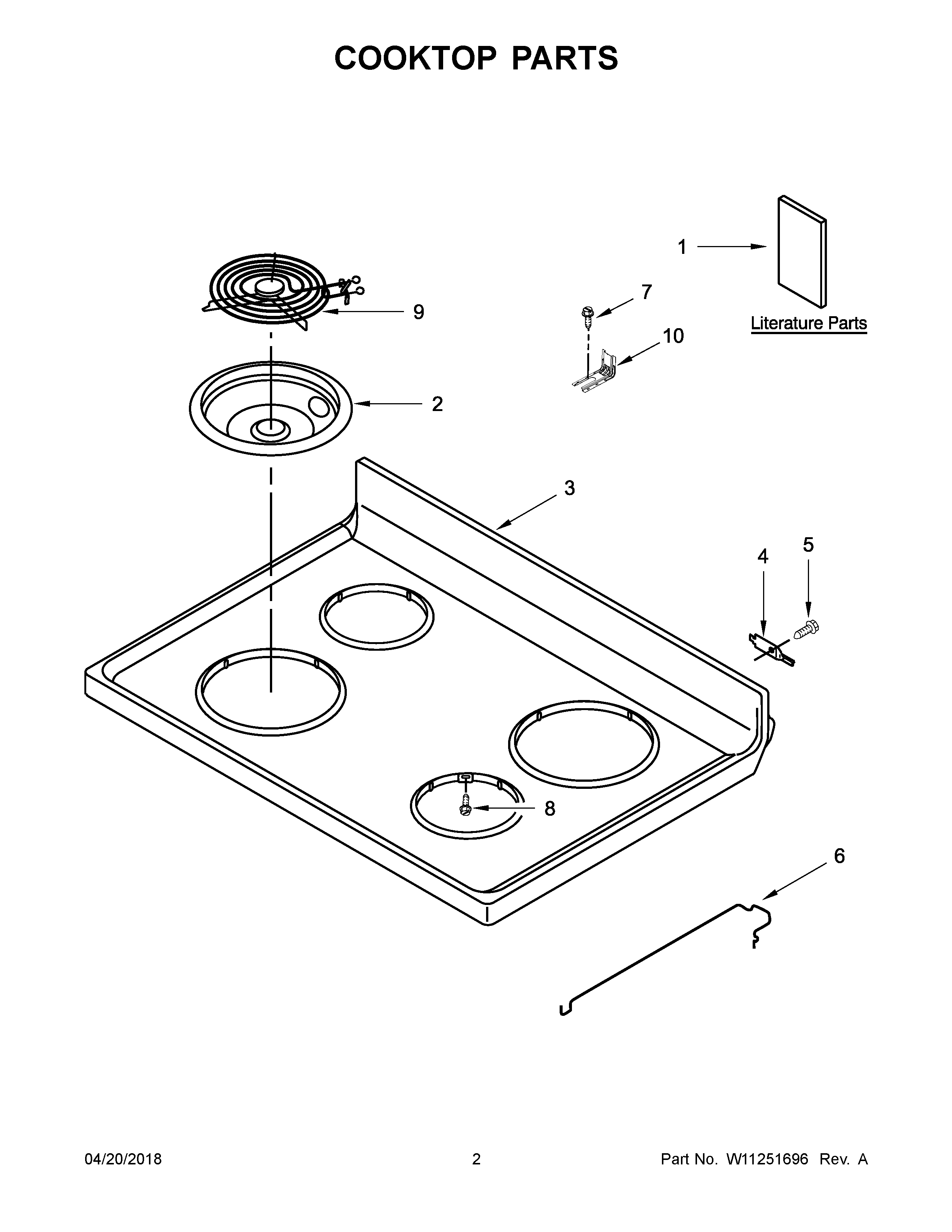

ACR4303MFB2 02 – COOKTOP PARTS

Products

PositionProduct
NIKIT, BARE WIRE ADAPTER BLOCK
NIHARNESS, MAIN
NILINER (NOT A SERVICEABLE PART)
NIHARNESS, WIRE (SURFACE UNIT)
1USER INSTRUCTIONS
1BINSTRUCTIONS, INSTALLATION
1AWIRING DIAGRAM
2ABOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR)
2BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR)
3ACOOKTOP (WHITE)
3COOKTOP (BLACK)
4HINGE, COOKTOP
5SCREW
6ROD, SUPPORT
7SCREW, ANTI-TIP KIT
8SCREW
9ELEMENT, COIL HEATING (1300W) (RIGHT FRONT AND LEFT REAR)
9AELEMENT, COIL HEATING (2150W) (LEFT FRONT AND RIGHT REAR)
10BRACKET, ANTI-TIP
