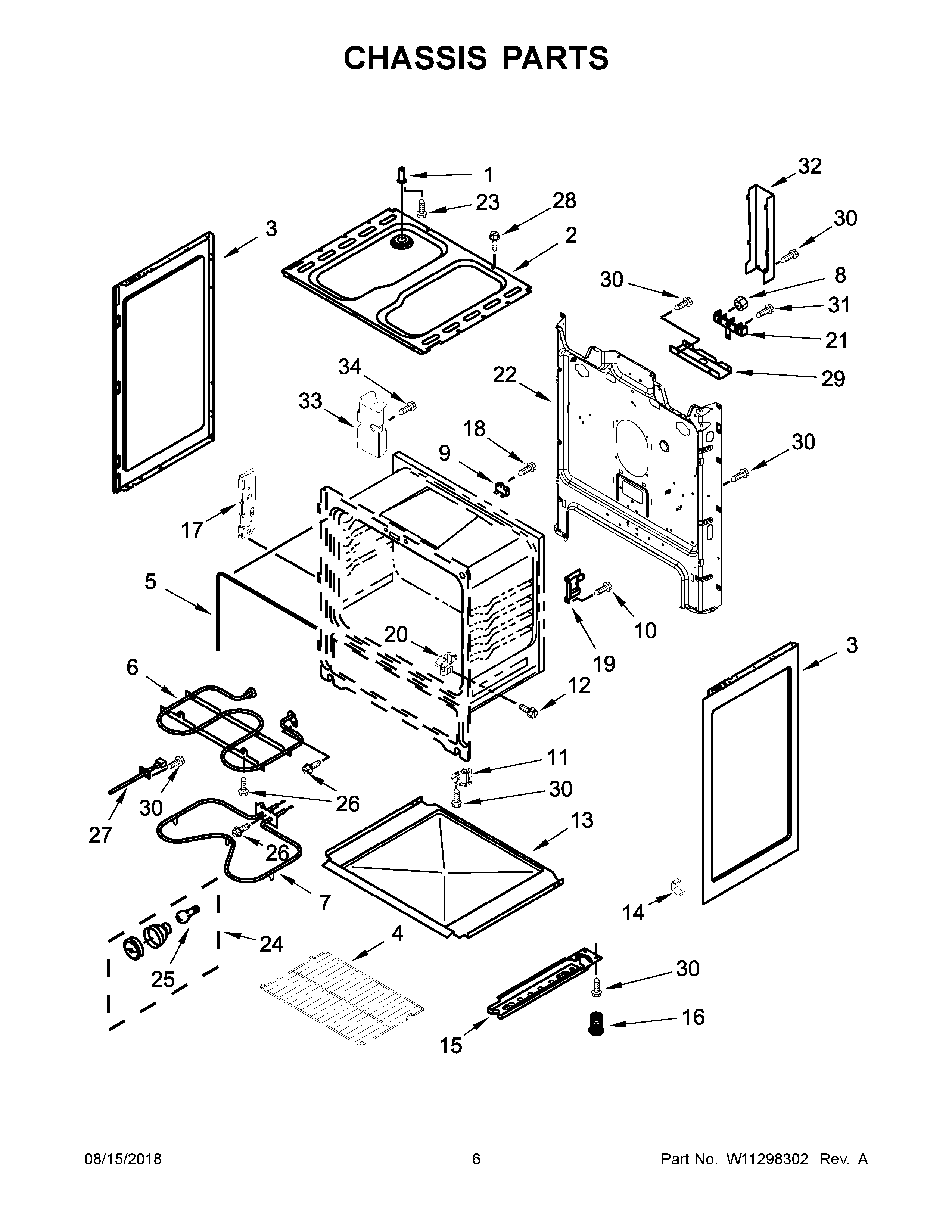

ACR4303MFB3 04 – CHASSIS PARTS

ACR4303MFB3 04 – CHASSIS PARTS

Written by

in

ACR4303MFB3 04 – CHASSIS PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	INSULATION, WRAP
NI	INSULATION, BACK
1	TUBE, VENT
2	BOX, BURNER
3A	PANEL, SIDE (WHITE)
3	PANEL, SIDE (BLACK)
4	RACK, OVEN
5	SEAL, DOOR
6	ELEMENT, BROIL
7	ELEMENT, BAKE
8	NUT
9	FUSE, THERMAL
10	SCREW
11	ASSEMBLY, FRONT FOOT
12	SCREW
13	RETAINER, INSULATION
14	CLIP, PANEL
15A	ASSEMBLY, BASE RAIL (RIGHT)
15	ASSEMBLY, BASE RAIL (LEFT)
16	FOOT, LEVELING
17	RECEIVER, HINGE
18	SCREW
19	CLIP, OVEN SUPPORT
20	GLIDE, DRAWER FRONT
21	BLOCK, TERMINAL
23	SCREW
24	MAY W11175594
25	BULB, HALOGEN 40 WATTS
26	SCREW
27	SENSOR, OVEN
28	SCREW
29	BRACKET, SERVICE
30	SCREW
31	SCREW
32	COVER, TERMINAL BLOCK
33	COUNTERWEIGHT
34	SCREW
