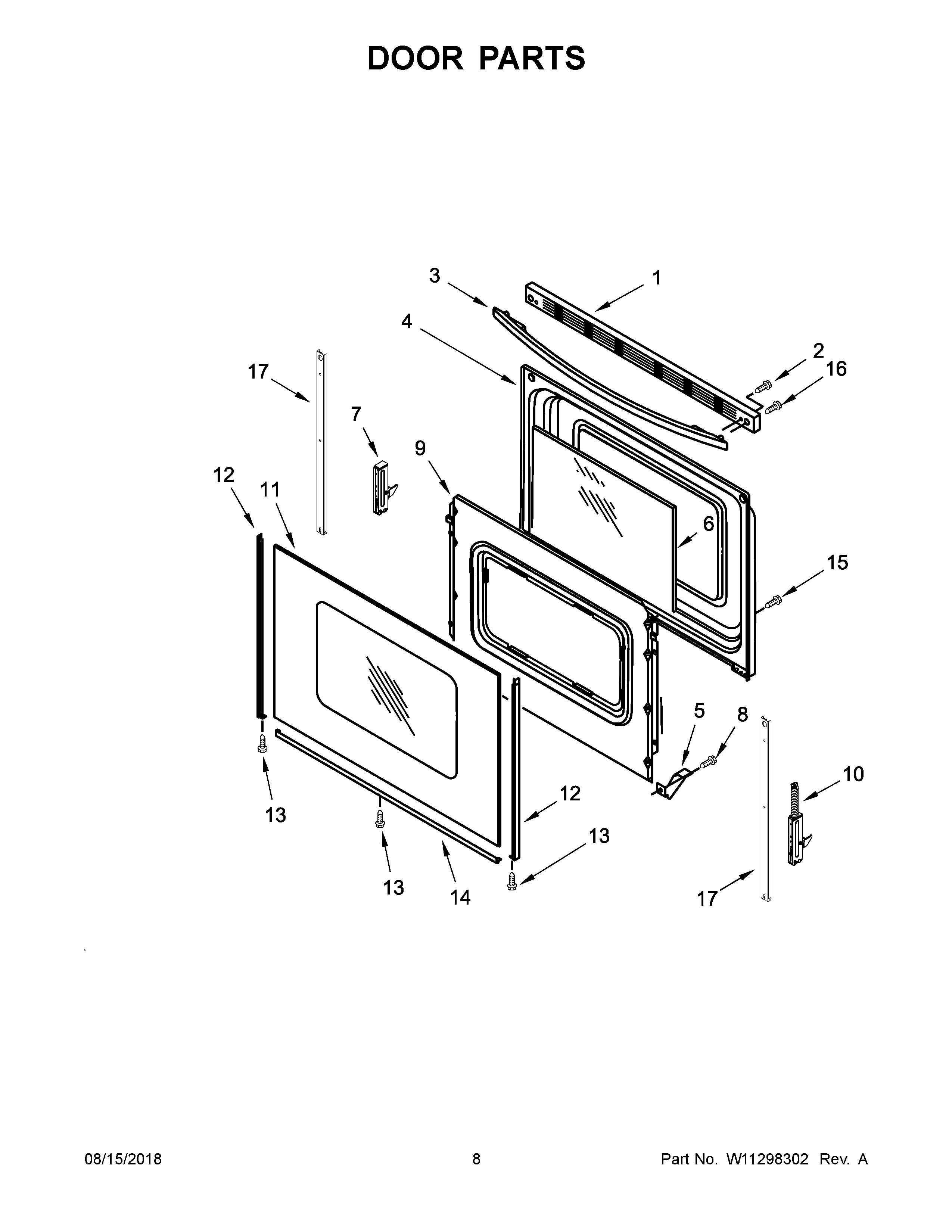

ACR4303MFB3 05 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (BLACK)
1A	TRIM, TOP (WHITE)
2	SCREW
3	HANDLE, DOOR (BLACK)
3A	HANDLE, DOOR (WHITE)
4	LINER, DOOR
5	CLIP, PANEL
6	GLASS, INNER
7	HINGE, DOOR (PASSIVE)
8	SCREW
9	RETAINER, INSULATION
10	HINGE, ACTIVE
11A	GLASS, OUTER (WHITE)
11	GLASS, OUTER (BLACK)
12B	TRIM, SIDE (WHITE (RIGHT))
12A	TRIM, SIDE (BLACK (LEFT))
12	TRIM, SIDE (BLACK (RIGHT))
12C	TRIM, SIDE (WHITE (LEFT))
13	SCREW
14A	TRIM, LOWER (WHITE)
14	TRIM, LOWER (BLACK)
15	SCREW
16	SCREW
17	STRAP, DOOR
