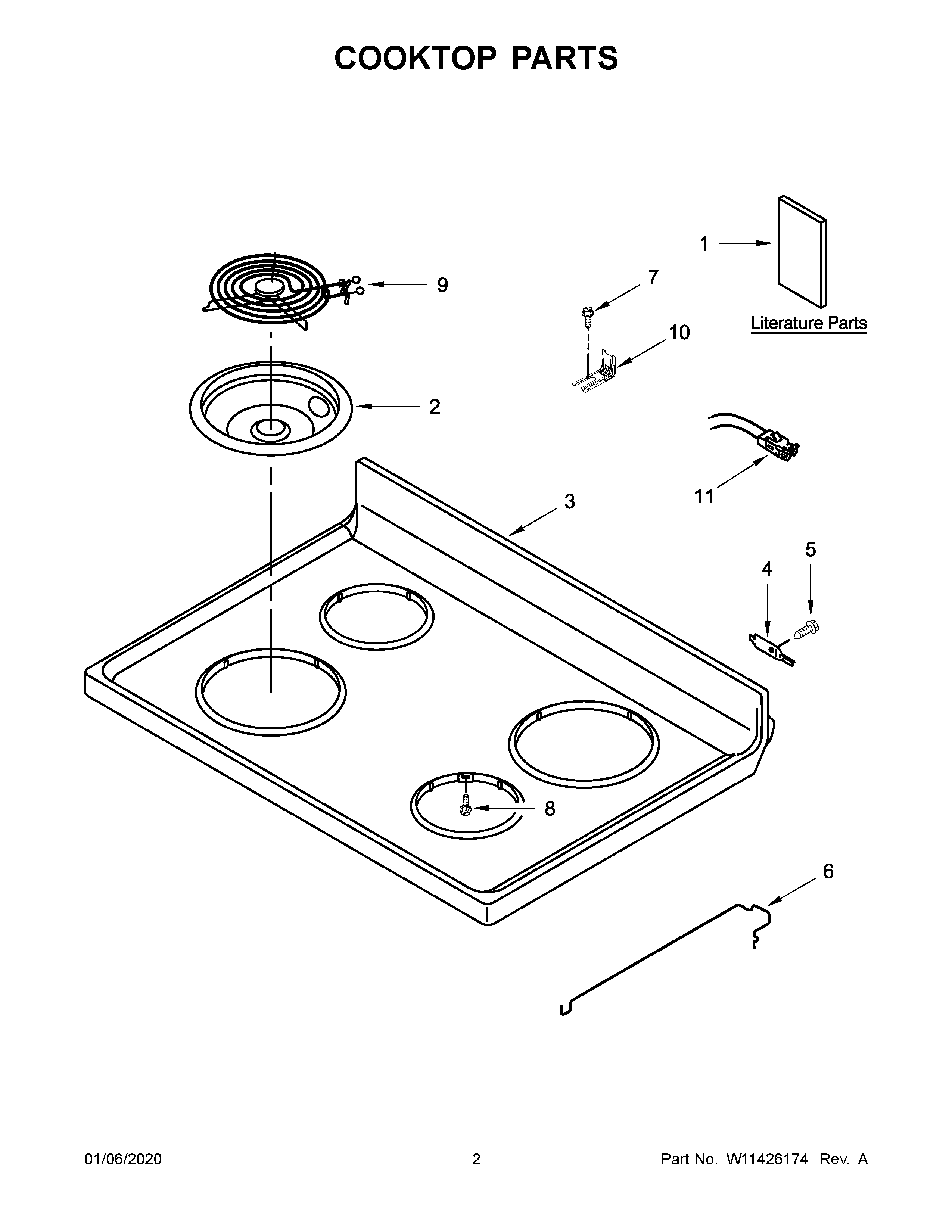

ACR4303MFB4 02 – COOKTOP PARTS

Products

PositionProduct
NIKIT, BARE WIRE ADAPTER BLOCK
NIHARNESS, MAIN
NIHARNESS, COOKTOP
NILINER (NOT A SERVICEABLE PART)
1USER INSTRUCTIONS
1BINSTRUCTIONS, INSTALLATION
1AMAY W11335893
2BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR)
2ABOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR)
3ACOOKTOP (WHITE)
3COOKTOP (BLACK)
4HINGE, COOKTOP
5SCREW
6ROD, SUPPORT
7SCREW, ANTI-TIP KIT
8SCREW
9AELEMENT, COIL HEATING (1500W) (RIGHT FRONT AND LEFT REAR)
9ELEMENT, COIL HEATING (2400W) (LEFT FRONT AND RIGHT REAR)
10ANTI-TIP BRACKET
11RECEPTACLE, ELEMENT
