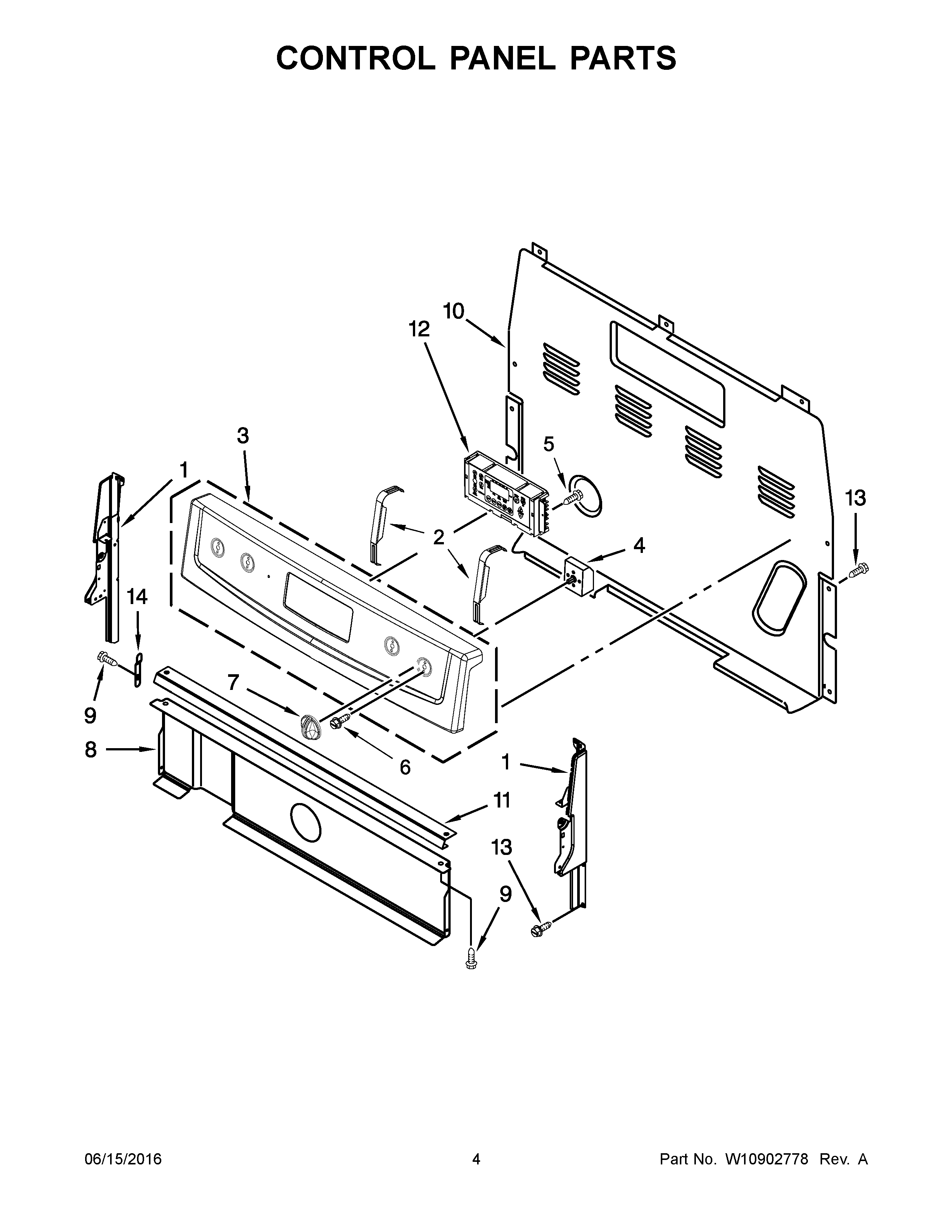

ACR4303MFS0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1CENDCAP (WHITE (RIGHT))
1ENDCAP (BLACK (LEFT))
1AENDCAP (BLACK (RIGHT))
1BENDCAP (WHITE (LEFT))
2BRACKET, CONTROL
3PANEL, CONTROL (BLACK)
3APANEL, CONTROL (WHITE)
3BPANEL, CONTROL (STAINLESS)
4ASWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
5SCREW
6SCREW
7AKNOBS (WHITE)
7KNOBS (BLACK)
8SHIELD, HEAT
9SCREW
10COVER, UPPER REAR
11BRACKET, CONSOLE MOUNTING
12ACONTROL, LCC180 (WHITE)
12CONTROL, LCC180 (BLACK)
13SCREW
14CLIP, SPRING
