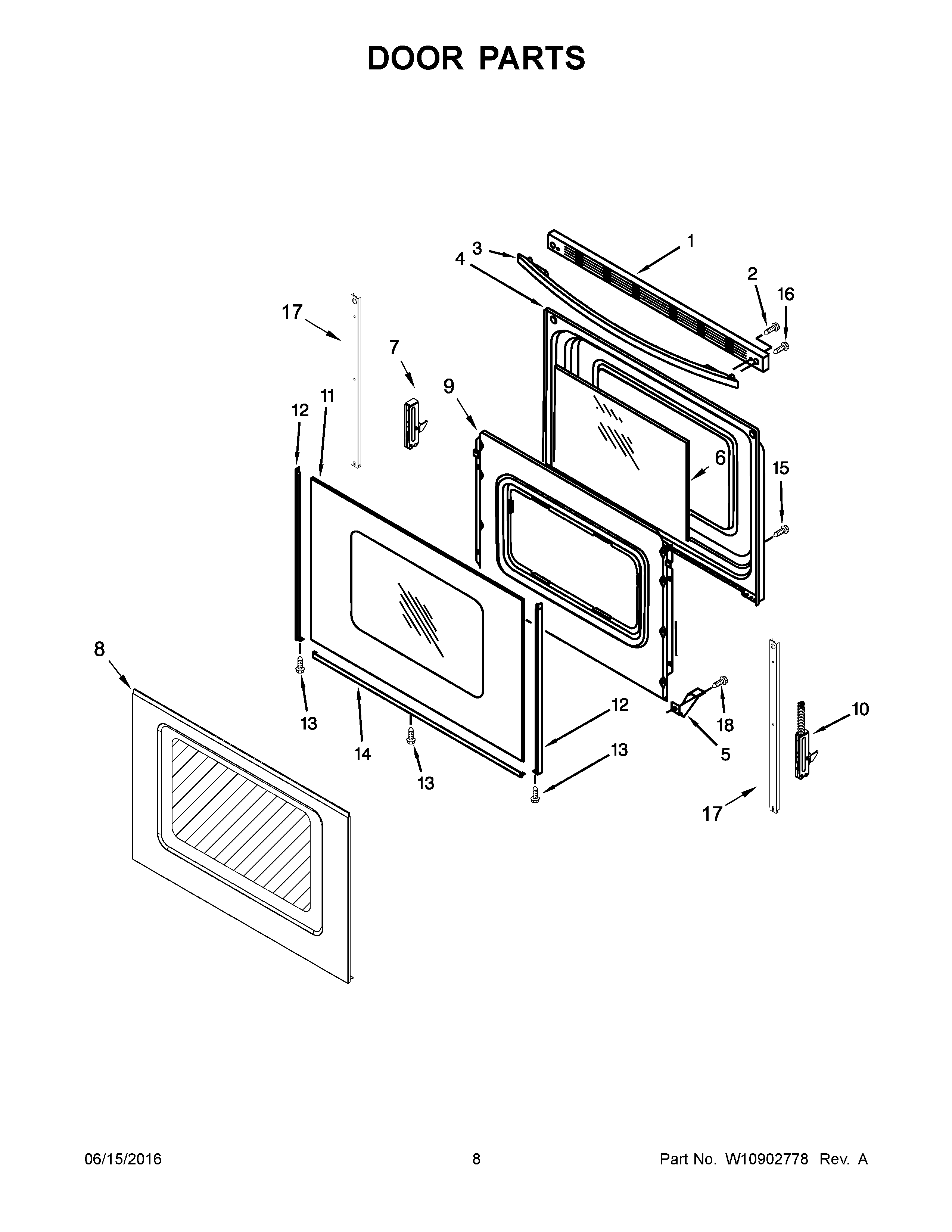

ACR4303MFS0 05 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (BLACK)
1A	TRIM, TOP (WHITE)
2	SCREW
3	HANDLE, DOOR (BLACK)
3B	HANDLE, DOOR (STAINLESS)
3A	HANDLE, DOOR (WHITE)
4	LINER, DOOR
5	CLIP, PANEL
6	GLASS, INNER
7	HINGE, DOOR (PASSIVE)
8	DOOR, OUTER GLASS ASSEMBLY (STAINLESS)
9	RETAINER, INSULATION
10	HINGE, ACTIVE
11A	GLASS, OUTER (WHITE)
11	GLASS, OUTER (BLACK)
12	TRIM, SIDE (BLACK (RIGHT))
12A	TRIM, SIDE (BLACK (LEFT))
12C	TRIM, SIDE (WHITE (LEFT))
12B	TRIM, SIDE (WHITE (RIGHT))
13	SCREW
14A	TRIM, LOWER (WHITE)
14	TRIM, LOWER (BLACK)
15	SCREW
16	SCREW
17	STRAP, DOOR
18	SCREW
