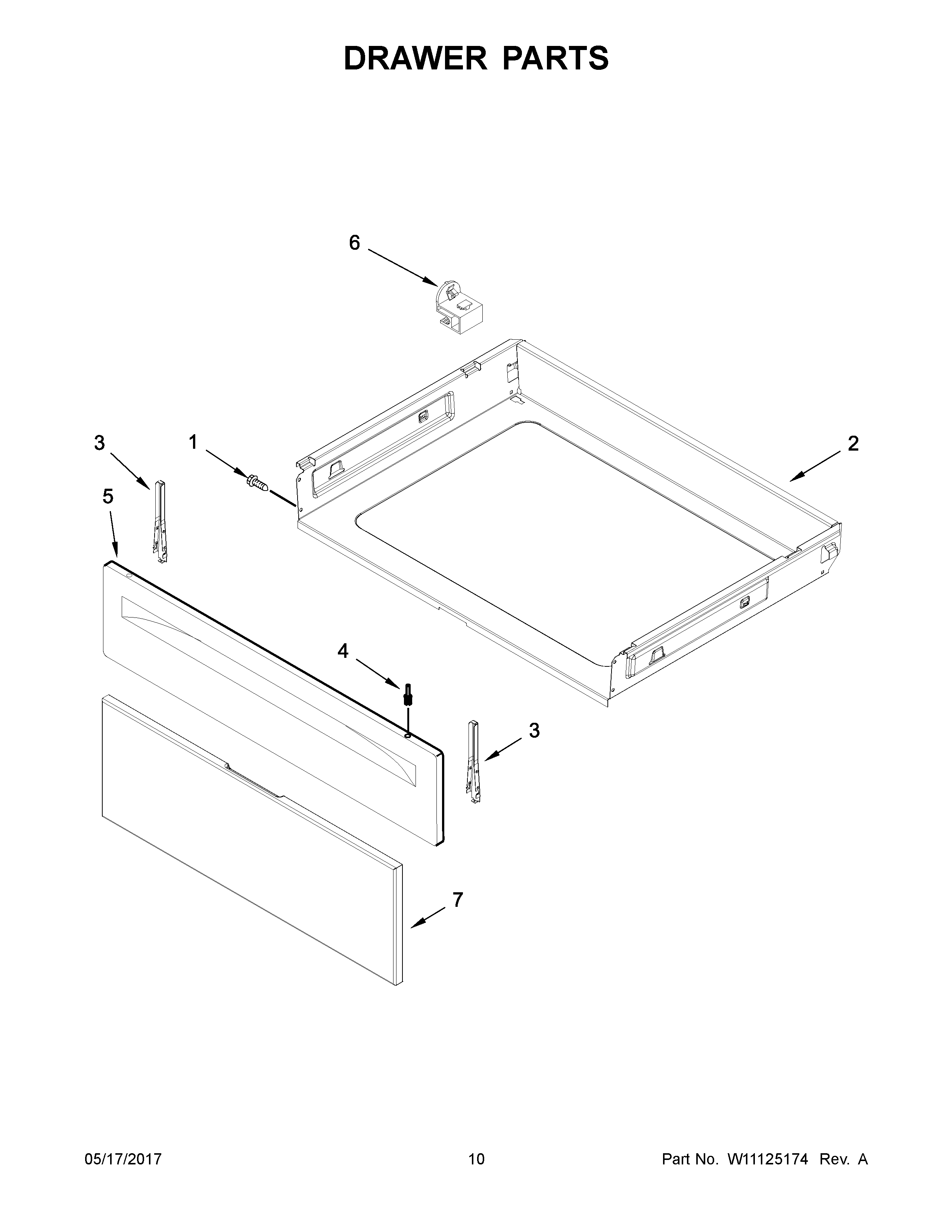

ACR4303MFS1 06 – DRAWER PARTS

Written by

Products

Position	Product
1	SCREW
2	DRAWER, STORAGE
3	BRACKET, MOUNTING DRAWER
3A	BRACKET, MOUNTING DRAWER
4A	RIVET, PUSH (WHITE)
4	RIVET, PUSH (BLACK)
5	PANEL, DRAWER FRONT (BLACK)
5A	PANEL, DRAWER FRONT (WHITE)
6	GLIDE, DRAWER REAR
7	PANEL, DRAWER FRONT (STAINLESS)
