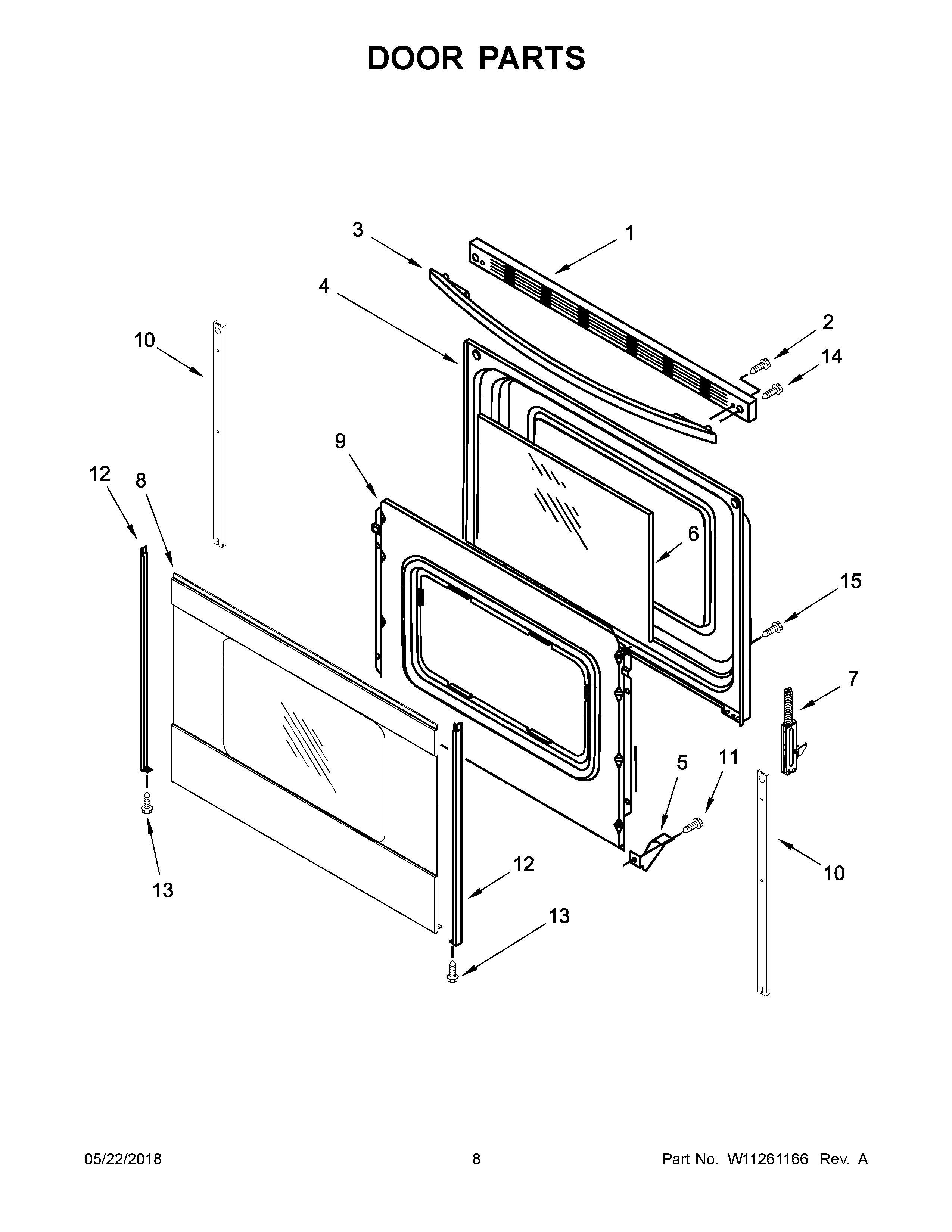

ACR4303MFS2 05 – DOOR PARTSadmin2025-04-26T09:13:39+00:00ACR4303MFS2 05 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | TRIM, TOP (BLACK) |
| 2 | SCREW |
| 3 | HANDLE, DOOR (STAINLESS) |
| 4 | LINER, DOOR |
| 5 | CLIP, PANEL |
| 6 | GLASS, INNER |
| 7 | HINGE, ACTIVE |
| 7A | HINGE, DOOR (PASSIVE) |
| 8 | DOOR, OUTER GLASS ASSEMBLY (STAINLESS) |
| 9 | RETAINER, INSULATION |
| 10 | STRAP, DOOR |
| 11 | SCREW |
| 12 | TRIM, SIDE (BLACK (RIGHT)) |
| 12A | TRIM, SIDE (BLACK (LEFT)) |
| 13 | SCREW |
| 14 | SCREW |
| 15 | SCREW |
