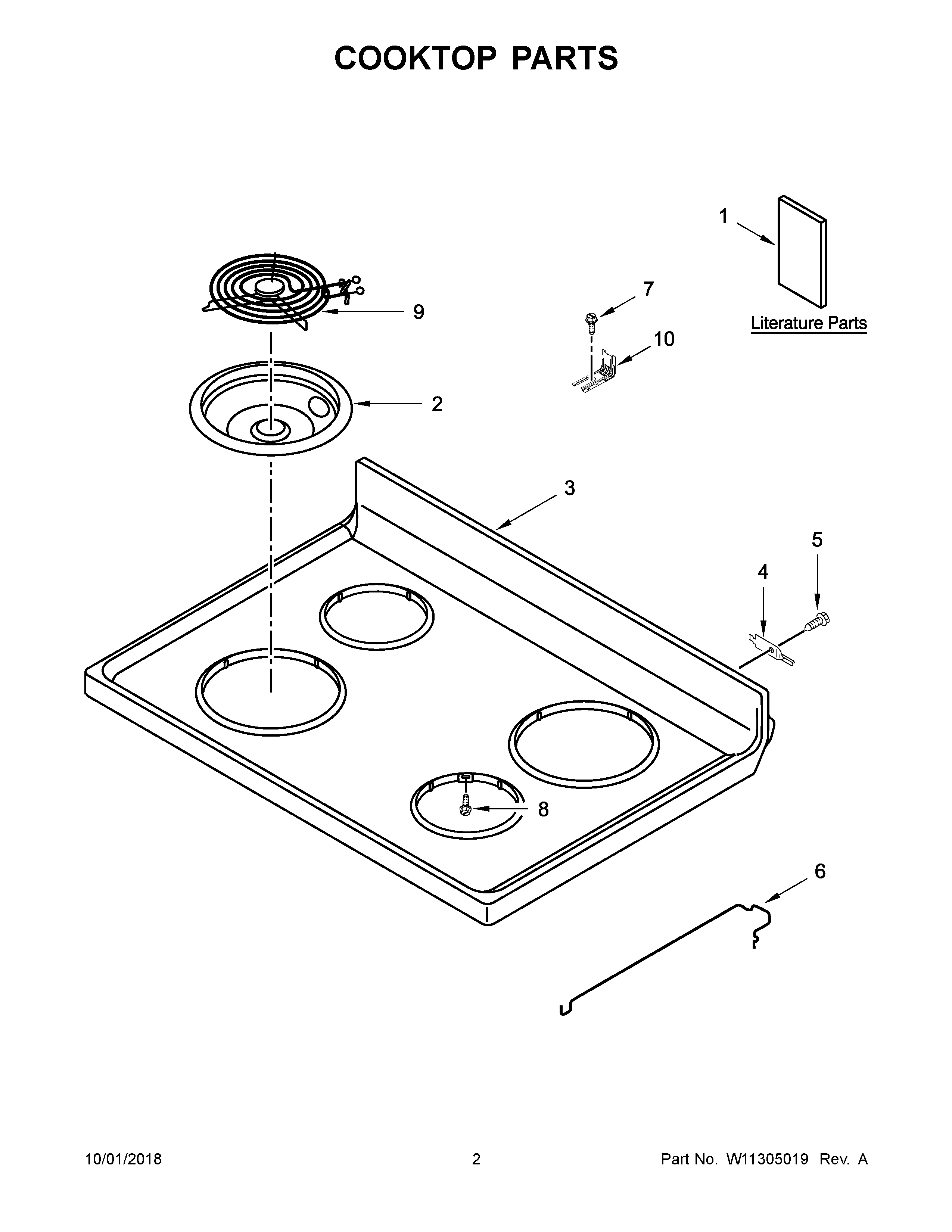

ACR4303MFS3 02 – COOKTOP PARTS

Products

Position	Product
NI	KIT, BARE WIRE ADAPTER BLOCK
NI	HARNESS, COOKTOP
NI	LINER (NOT A SERVICEABLE PART)
NI	SCREW
NI	HARNESS, MAIN
1A	WIRING DIAGRAM
1	USER INSTRUCTIONS
1B	INSTRUCTIONS, INSTALLATION
2A	BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR)
2	BOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR)
3	COOKTOP (BLACK)
4	HINGE, COOKTOP
5	SCREW
6	ROD, SUPPORT
7	SCREW, ANTI-TIP KIT
8	SCREW
9A	ELEMENT, COIL HEATING (1300W) (RIGHT FRONT AND LEFT REAR)
9	ELEMENT, COIL HEATING (2150W) (LEFT FRONT AND RIGHT REAR)
10	BRACKET, ANTI-TIP
