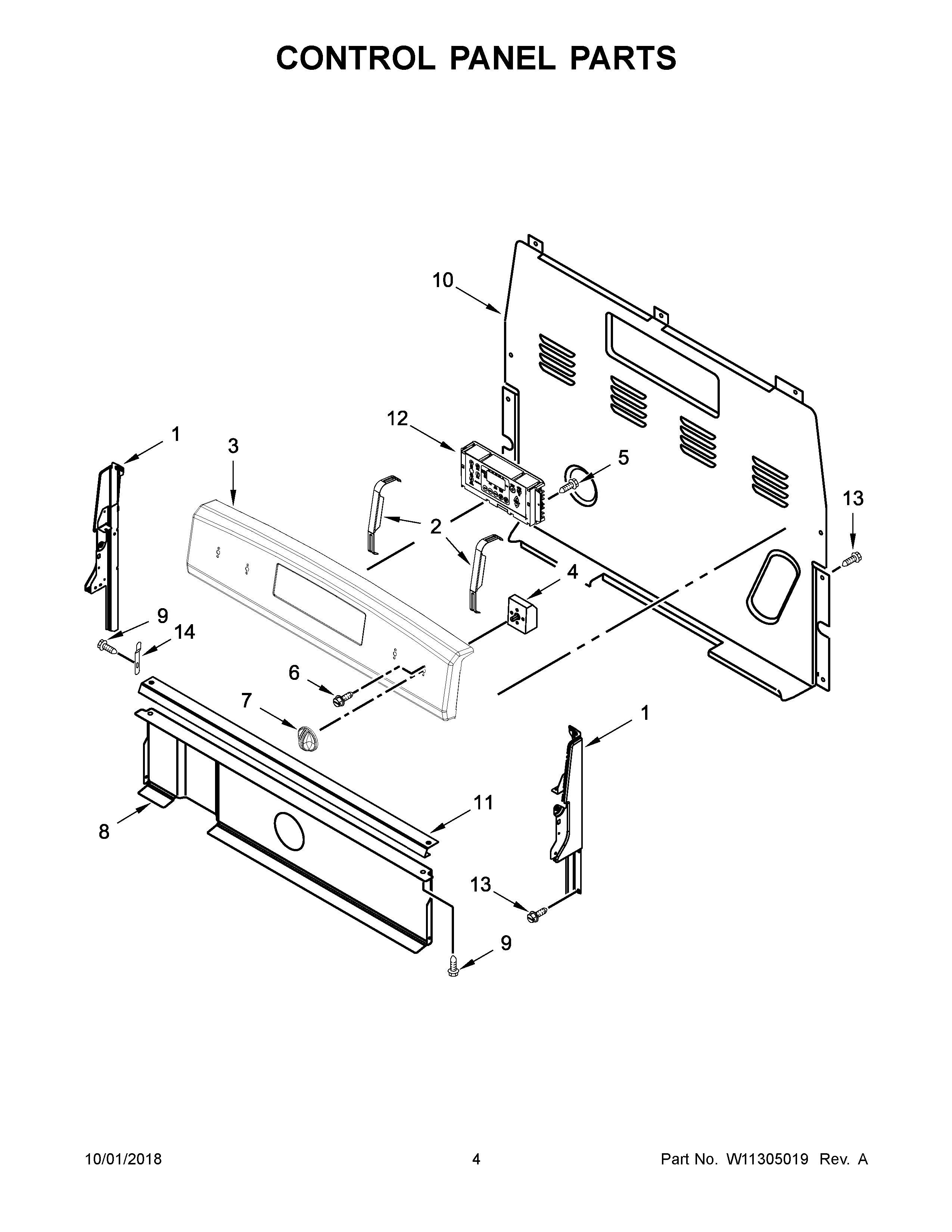

ACR4303MFS3 03 – CONTROL PANEL PARTS

Products

Position	Product
1A	ENDCAP (BLACK (RIGHT))
1	ENDCAP (BLACK (LEFT))
2	BRACKET, CONTROL
3	PANEL, CONTROL (STAINLESS)
4	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4A	SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
5	SCREW
6	SCREW
7	KNOBS (STAINLESS)
8	SHIELD, HEAT
9	SCREW
10	COVER, UPPER REAR
11	BRACKET, CONSOLE MOUNTING
12	CONTROL (LCC95) (BLACK)
13	SCREW
14	CLIP, SPRING
