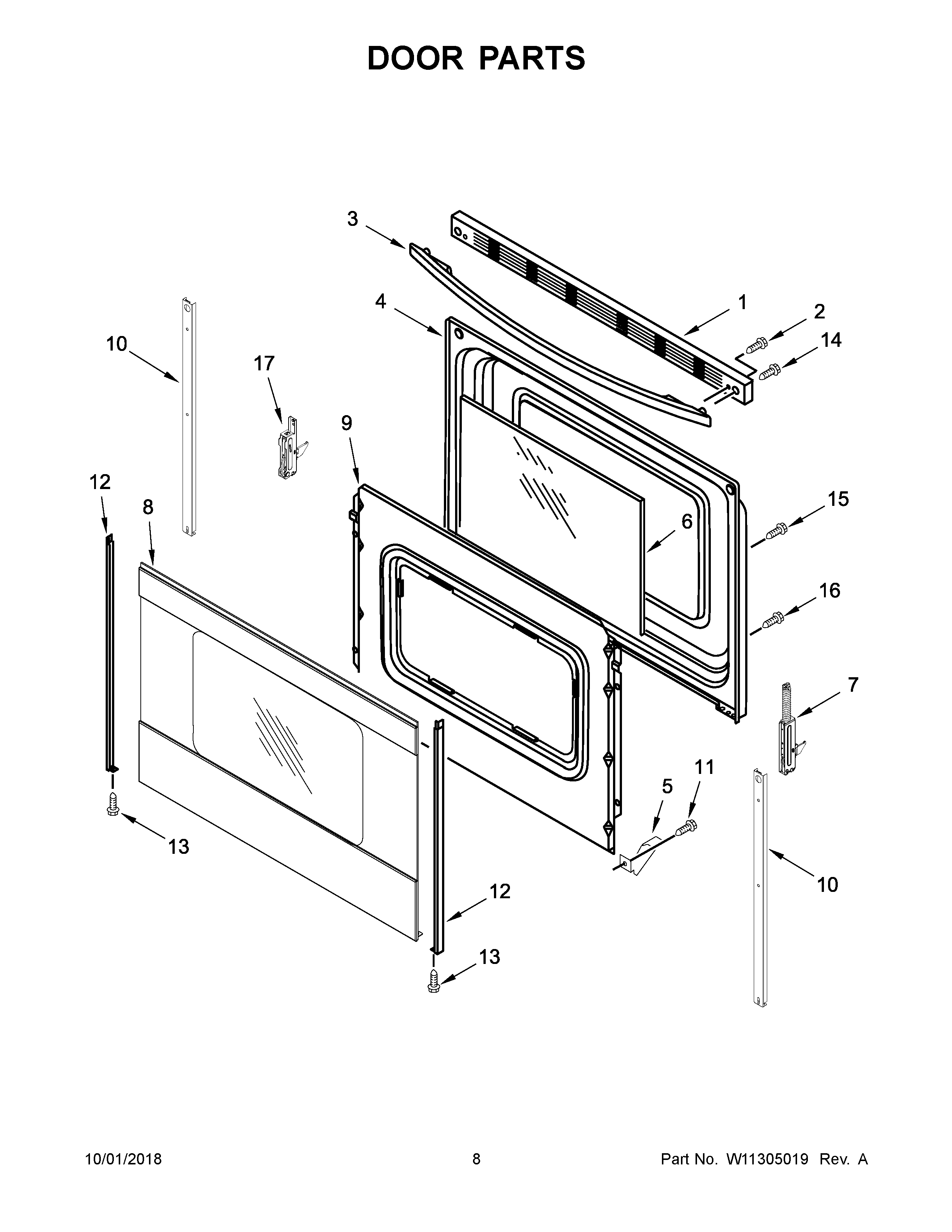

ACR4303MFS3 05 – DOOR PARTS

Written by

Products

Position	Product
1	TRIM, TOP (BLACK)
2	SCREW
3	HANDLE, DOOR (STAINLESS)
4	LINER, DOOR
5	CLIP, PANEL
6	GLASS, INNER
7	HINGE, ACTIVE
8	DOOR, OUTER GLASS ASSEMBLY (STAINLESS)
9	RETAINER, INSULATION
10	STRAP, DOOR
11	SCREW
12A	TRIM, SIDE (BLACK (RIGHT))
12	TRIM, SIDE (BLACK (LEFT))
13	SCREW
14	SCREW
15	SCREW
16	MAY W10031780
17	HINGE, DOOR (PASSIVE)
