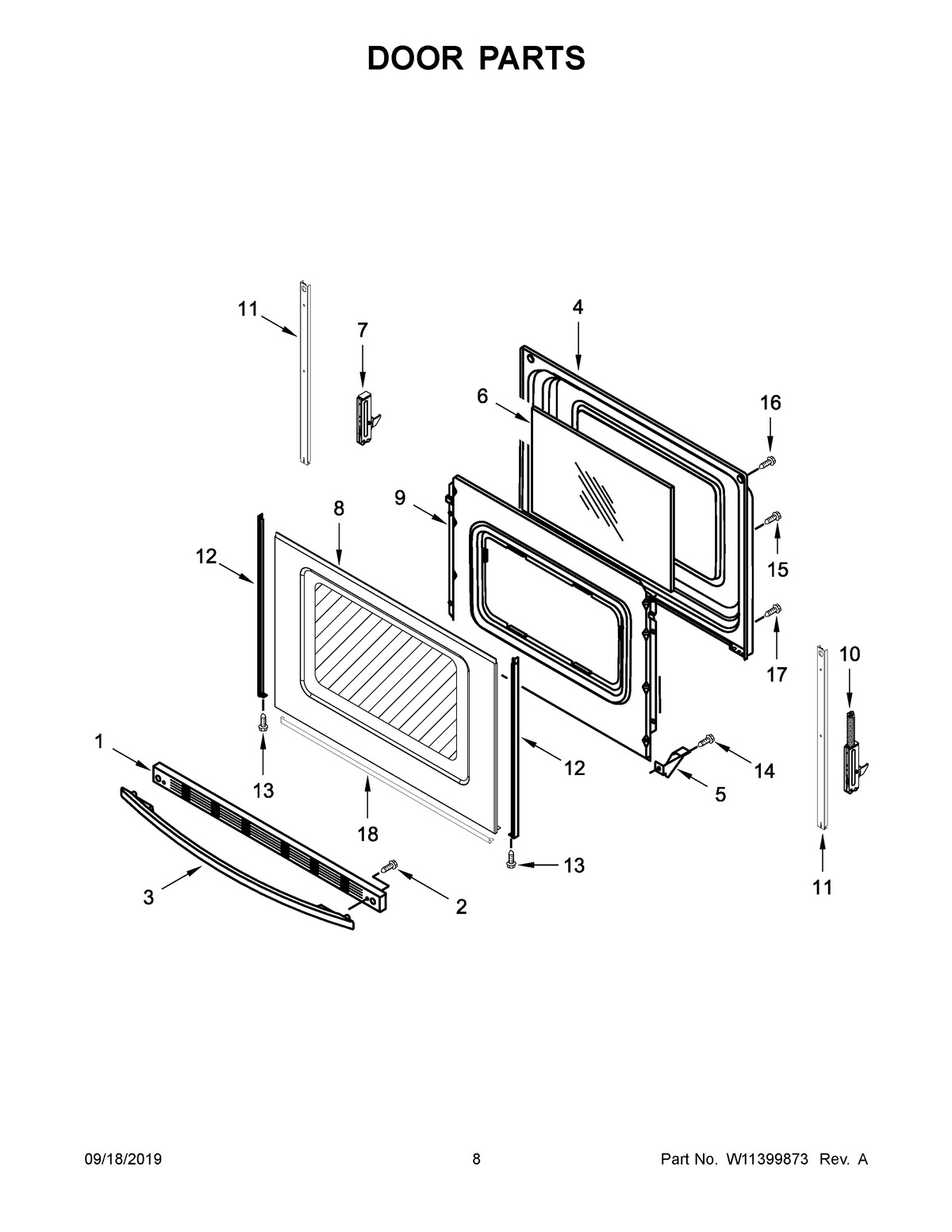

ACR4303MFS4 05 – DOOR PARTS

ACR4303MFS4 05 – DOOR PARTS

Written by

in

ACR4303MFS4 05 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (BLACK)
2	SCREW
3	HANDLE, DOOR (BLACK)
4	LINER, DOOR
5	CLIP, PANEL
6	MAY W11367326
7	HINGE, DOOR (PASSIVE)
8	GLASS, OUTER (BLACK)
9	RETAINER, INSULATION
10	HINGE, ACTIVE
11	STRAP, DOOR
12	TRIM, SIDE (BLACK (LEFT))
12A	TRIM, SIDE (BLACK (RIGHT))
13	SCREW
14	SCREW
15	SCREW
16	SCREW
17	MAY W10031780
18	TRIM, LOWER (BLACK)
