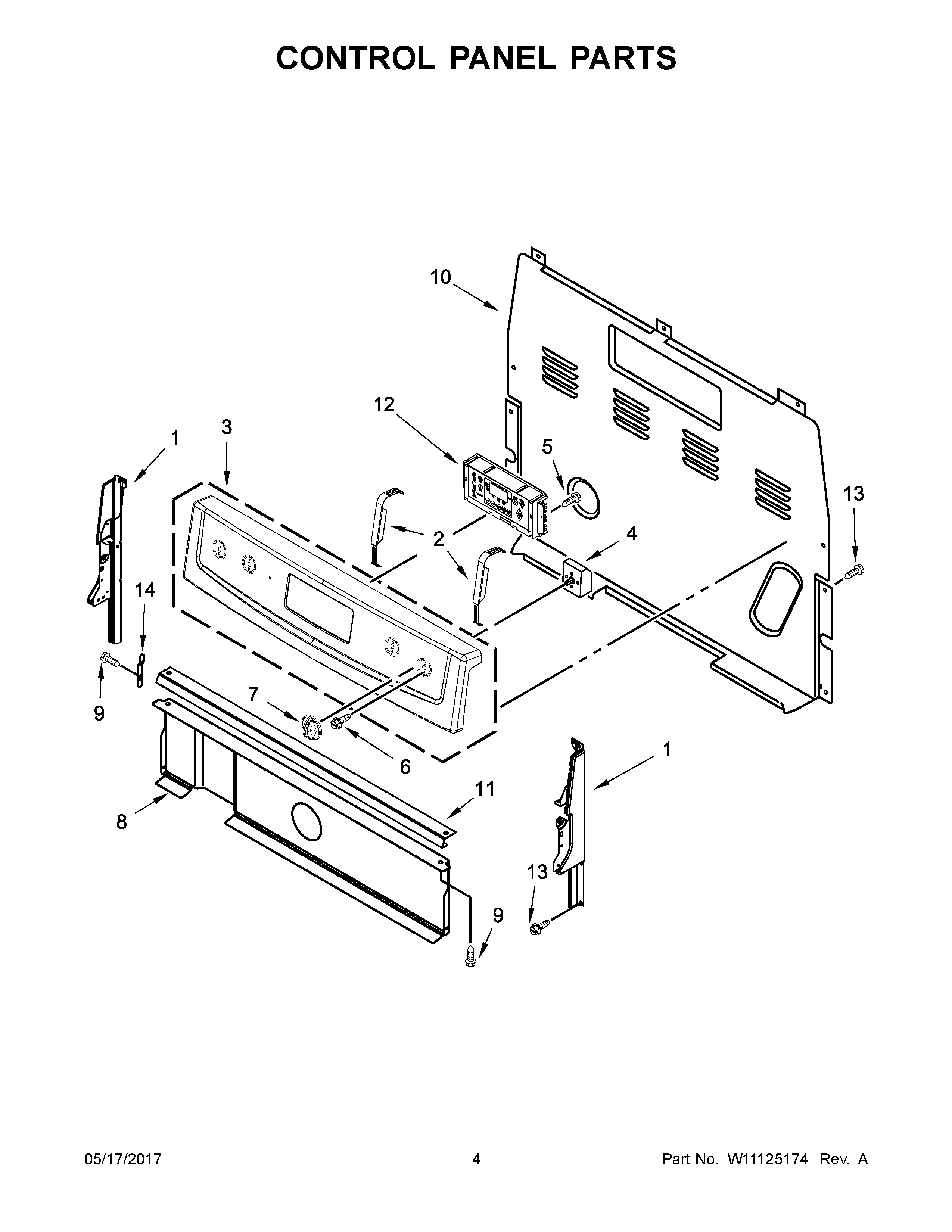

ACR4303MFW1 03 – CONTROL PANEL PARTSadmin2025-04-26T09:12:54+00:00ACR4303MFW1 03 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1C | ENDCAP (WHITE (RIGHT)) |
| 1 | ENDCAP (BLACK (LEFT)) |
| 1A | ENDCAP (BLACK (RIGHT)) |
| 1B | ENDCAP (WHITE (LEFT)) |
| 2 | BRACKET, CONTROL |
| 3 | PANEL, CONTROL (BLACK) |
| 3A | PANEL, CONTROL (WHITE) |
| 3B | PANEL, CONTROL (STAINLESS) |
| 4A | SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR) |
| 4 | SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR) |
| 5 | SCREW |
| 6 | SCREW |
| 7A | KNOBS (WHITE) |
| 7B | KNOBS (STAINLESS) |
| 7 | KNOBS (BLACK) |
| 8 | SHIELD, HEAT |
| 9 | SCREW |
| 10 | COVER, UPPER REAR |
| 11 | BRACKET, CONSOLE MOUNTING |
| 12A | CONTROL, LCC180 (WHITE) |
| 12 | CONTROL, LCC180 (BLACK) |
| 13 | SCREW |
| 14 | CLIP, SPRING |
