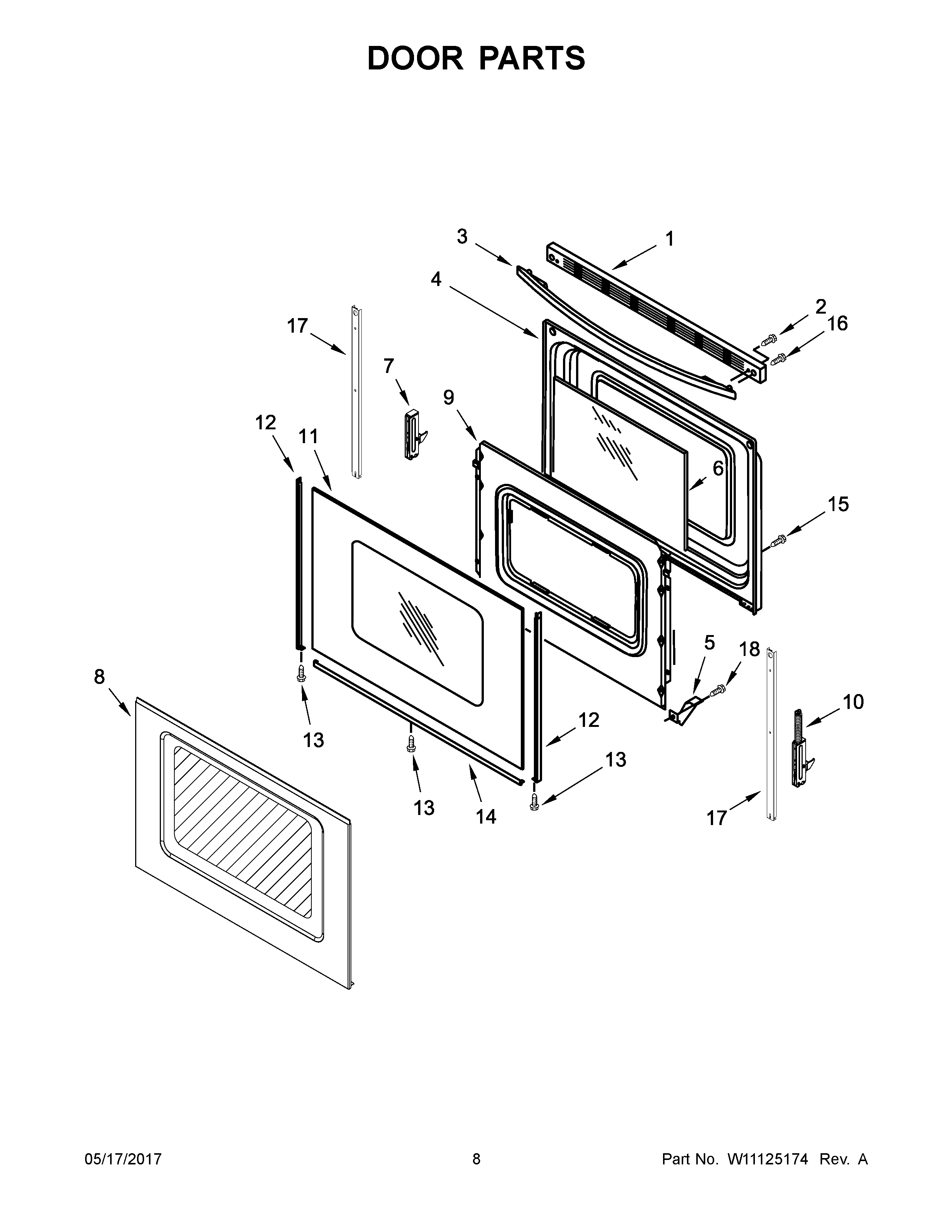

ACR4303MFW1 05 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (BLACK)
1A	TRIM, TOP (WHITE)
2	SCREW
3	HANDLE, DOOR (BLACK)
3B	HANDLE, DOOR (STAINLESS)
3A	HANDLE, DOOR (WHITE)
4	LINER, DOOR
5	CLIP, PANEL
6	GLASS, INNER
7A	HINGE, ACTIVE
7	HINGE, DOOR (PASSIVE)
8	DOOR, OUTER GLASS ASSEMBLY (STAINLESS)
9	RETAINER, INSULATION
10	HINGE, ACTIVE
11	GLASS, OUTER (BLACK)
11A	GLASS, OUTER (WHITE)
12B	TRIM, SIDE (WHITE (RIGHT))
12C	TRIM, SIDE (WHITE (LEFT))
12	TRIM, SIDE (BLACK (RIGHT))
12A	TRIM, SIDE (BLACK (LEFT))
13	SCREW
14A	TRIM, LOWER (WHITE)
14	TRIM, LOWER (BLACK)
15	SCREW
16	SCREW
17	STRAP, DOOR
18	SCREW
