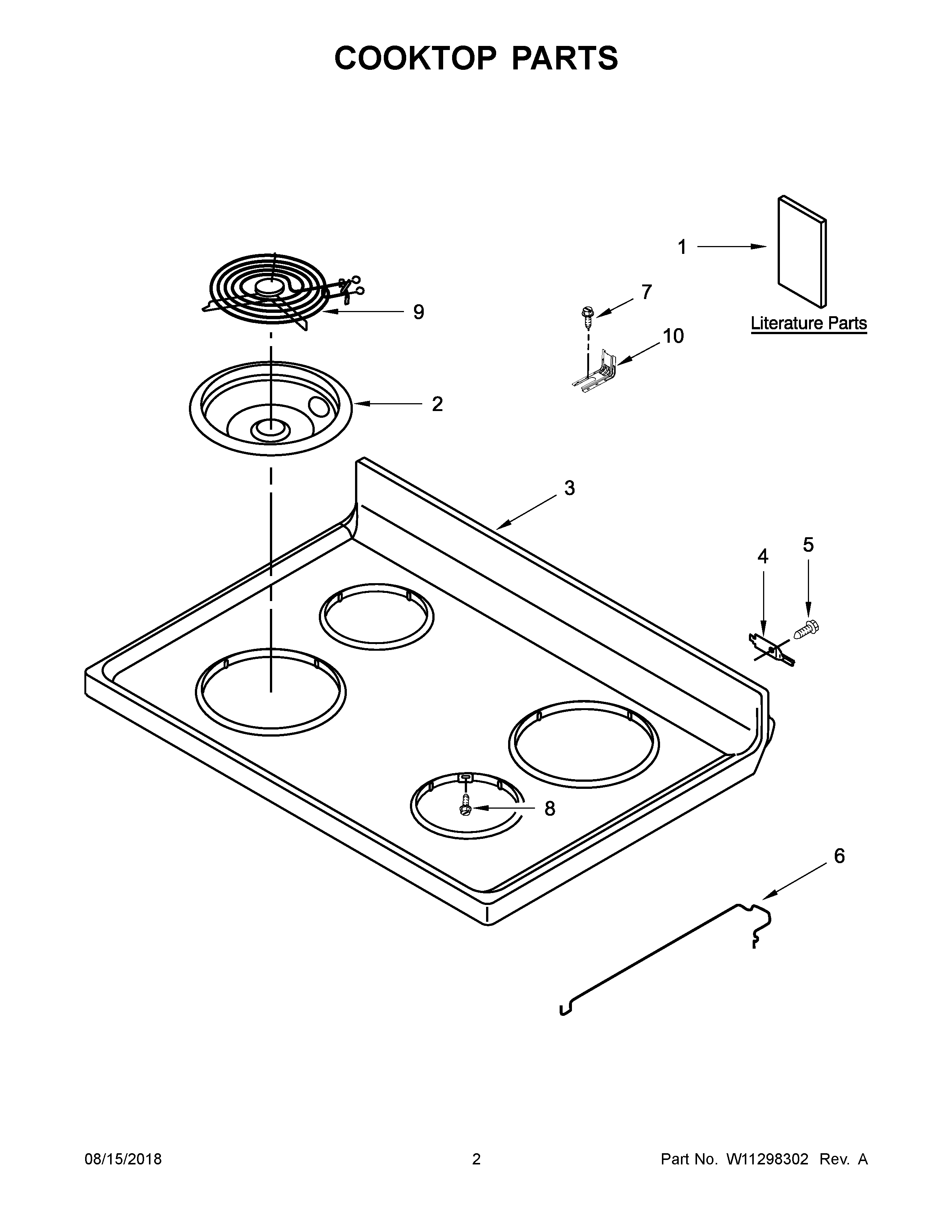

ACR4303MFW3 02 – COOKTOP PARTS

Products

PositionProduct
NIKIT, BARE WIRE ADAPTER BLOCK
NIHARNESS, COOKTOP
NILINER (NOT A SERVICEABLE PART)
NIHARNESS, MAIN
1AWIRING DIAGRAM
1USER INSTRUCTIONS
1BINSTRUCTIONS, INSTALLATION
2BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR)
2ABOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR)
3COOKTOP (BLACK)
3ACOOKTOP (WHITE)
4HINGE, COOKTOP
5SCREW
6ROD, SUPPORT
7SCREW, ANTI-TIP KIT
8SCREW
9AELEMENT, COIL HEATING (2150W) (LEFT FRONT AND RIGHT REAR)
9ELEMENT, COIL HEATING (1300W) (RIGHT FRONT AND LEFT REAR)
10BRACKET, ANTI-TIP
