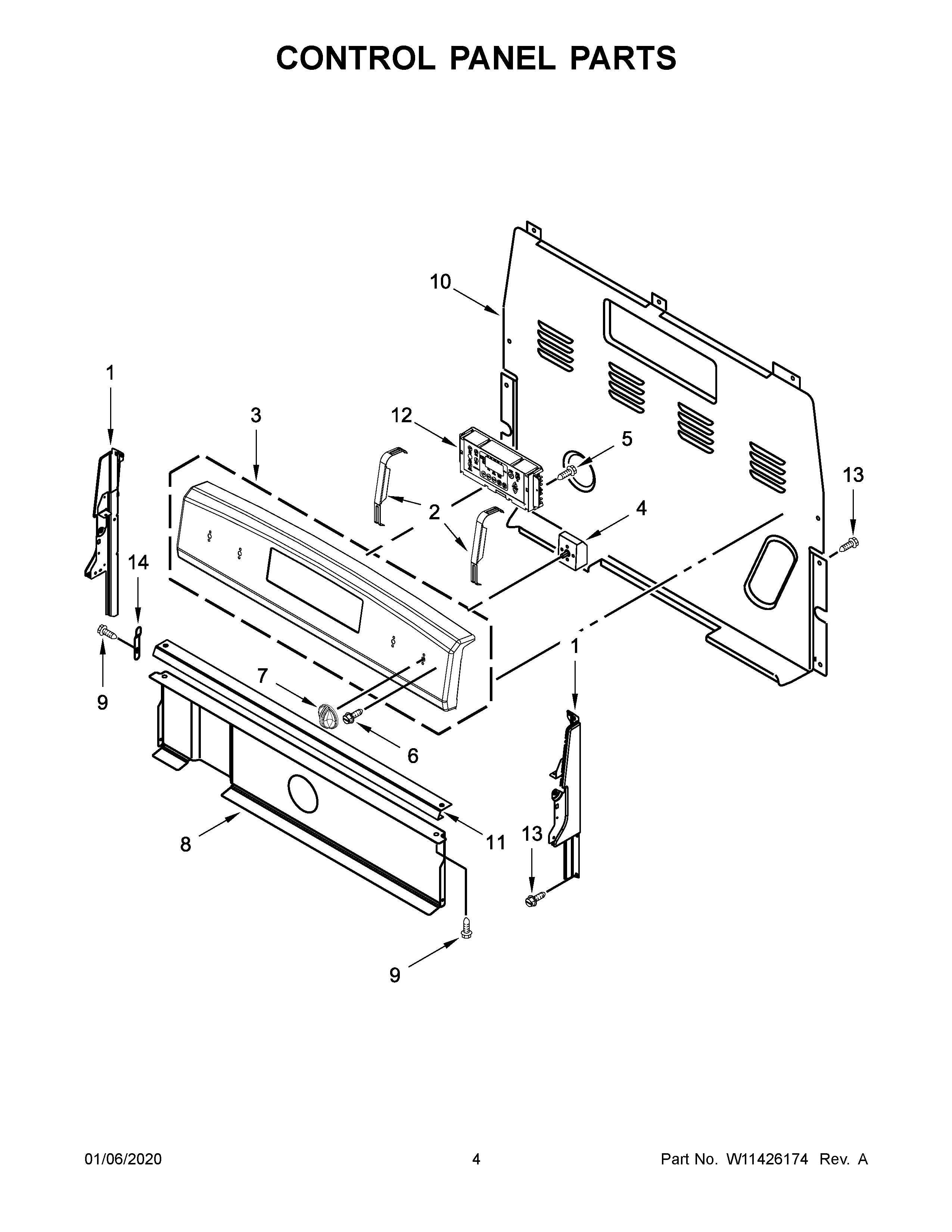

ACR4303MFW4 03 – CONTROL PANEL PARTS

Products

PositionProduct
1CENDCAP (WHITE (RIGHT))
1BENDCAP (WHITE (LEFT))
1ENDCAP (BLACK (LEFT))
1AENDCAP (BLACK (RIGHT))
2BRACKET, CONTROL
3APANEL, CONTROL (WHITE)
3PANEL, CONTROL (BLACK)
4SWITCH, INFINITE (YELLOW) (RIGHT FRONT AND LEFT REAR)
4ASWITCH, INFINITE (ORANGE) (LEFT FRONT AND RIGHT REAR)
5SCREW
6SCREW
7AKNOBS (WHITE)
7KNOBS (BLACK)
8SHIELD, HEAT
9SCREW
10COVER, UPPER REAR
11BRACKET, CONSOLE MOUNTING
12CONTROL (LCC95) (BLACK)
12ACONTROL, ELECTRONIC (WHITE)
13SCREW
14CLIP, SPRING
