ACR4303MFW4 05 – DOOR PARTS

ACR4303MFW4 05 – DOOR PARTS

Written by

in

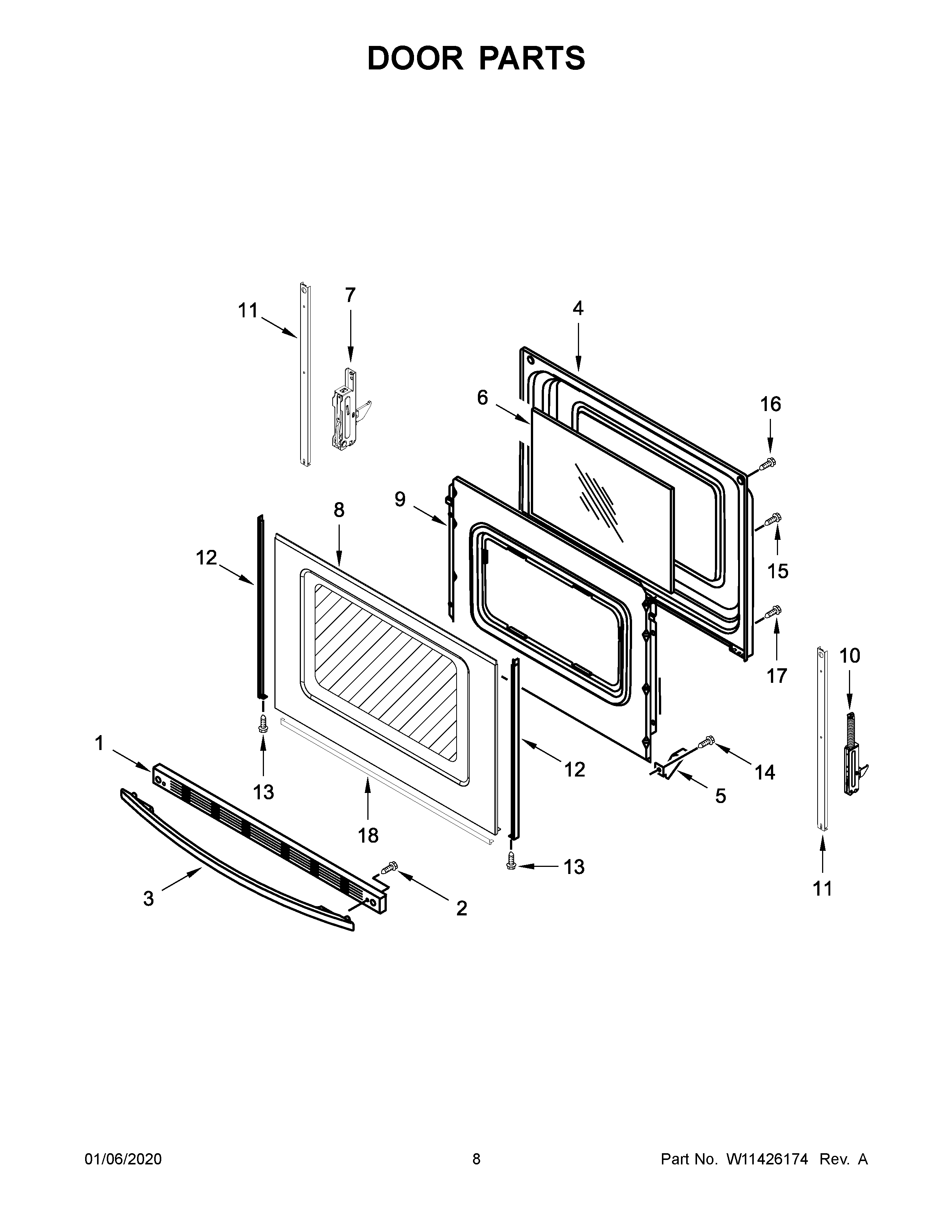

ACR4303MFW4 05 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (BLACK)
1A	TRIM, TOP (WHITE)
2	SCREW
3	HANDLE, DOOR (BLACK)
3A	HANDLE, DOOR (WHITE)
4	LINER, DOOR
5	CLIP, PANEL
6	MAY W11367326
7	HINGE, DOOR (PASSIVE)
8A	GLASS, OUTER (WHITE)
8	GLASS, OUTER (BLACK)
9	RETAINER, INSULATION
10	HINGE, ACTIVE
11	DOOR STRAP
12A	TRIM, SIDE (BLACK (RIGHT))
12	TRIM, SIDE (BLACK (LEFT))
12B	TRIM, SIDE (WHITE (LEFT))
12C	TRIM, SIDE (WHITE (RIGHT))
13	SCREW
14	SCREW
15	SCREW
16	SCREW
17	MAY W10031780
18A	TRIM, LOWER (WHITE)
18	TRIM, LOWER (BLACK)
