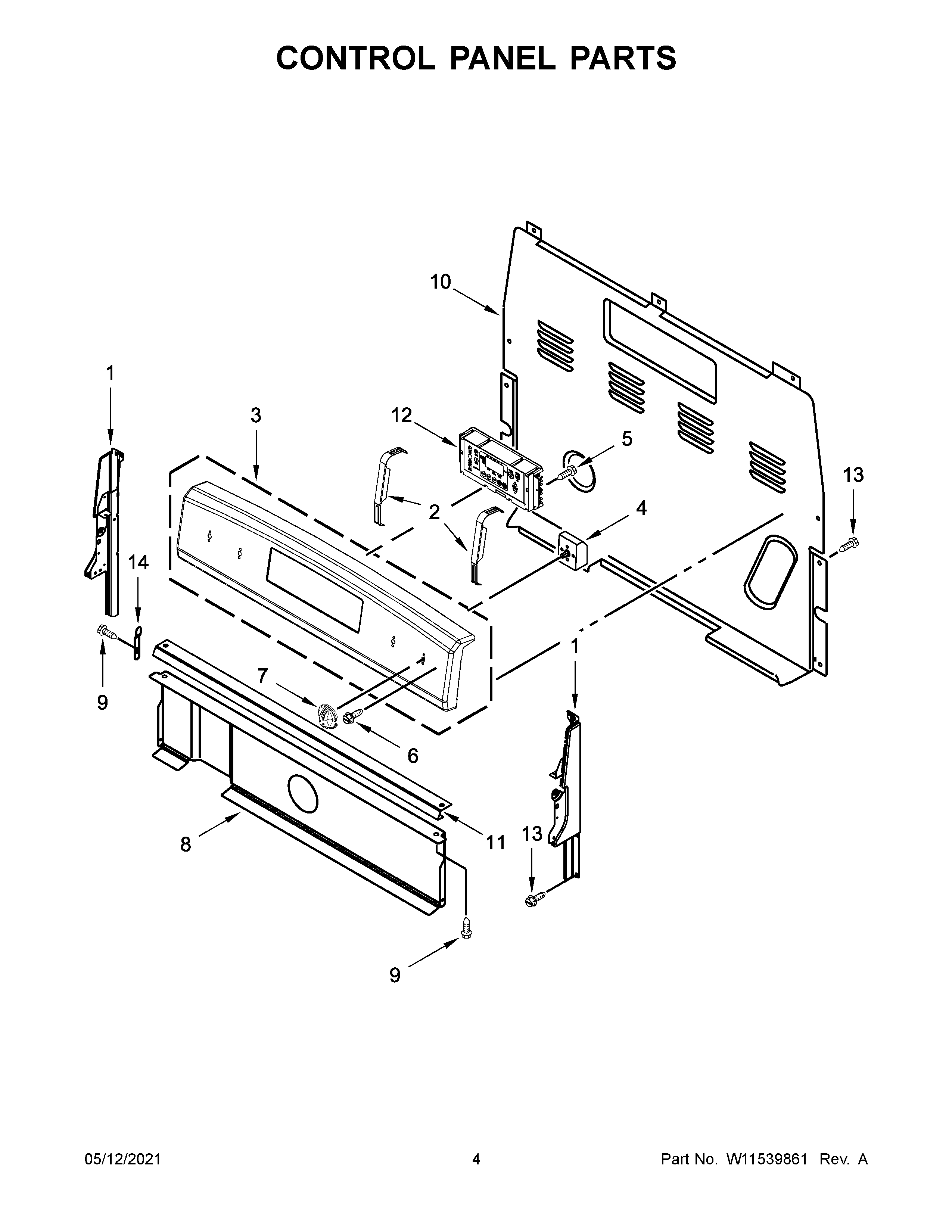

ACR4303MFW5 03 – CONTROL PANEL PARTS

Products

Position	Product
1C	W11219370 Whirlpool Endcap Panel
1B	W11219365 Whirlpool Panel Endcap
1A	W11219665 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
2	W11230932 Whirlpool Bracket Mounting
3A	W11231950 Whirlpool Control Panel
3	W11231949 Whirlpool Control Panel
4A	WP3149400 Whirlpool Oven Infinite Switch
4	WP3148952 Whirlpool Oven Infinite Switch
5	WP3196557 Whirlpool Screw
6	WP3400882 Whirlpool Screw
7	W11210997 Whirlpool Knob
7A	W11188750 Whirlpool Knob
8	W10134247 Whirlpool Heat Shield
9	WP3196175 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	W10525121 Whirlpool Control Bracket
12A	W11536795-includeCORE Whirlpool W11536795 Electronic Control Board + Core
12	CNTRL-ELEC + CORE
13	SCREW
14	3196200 Whirlpool Clip
