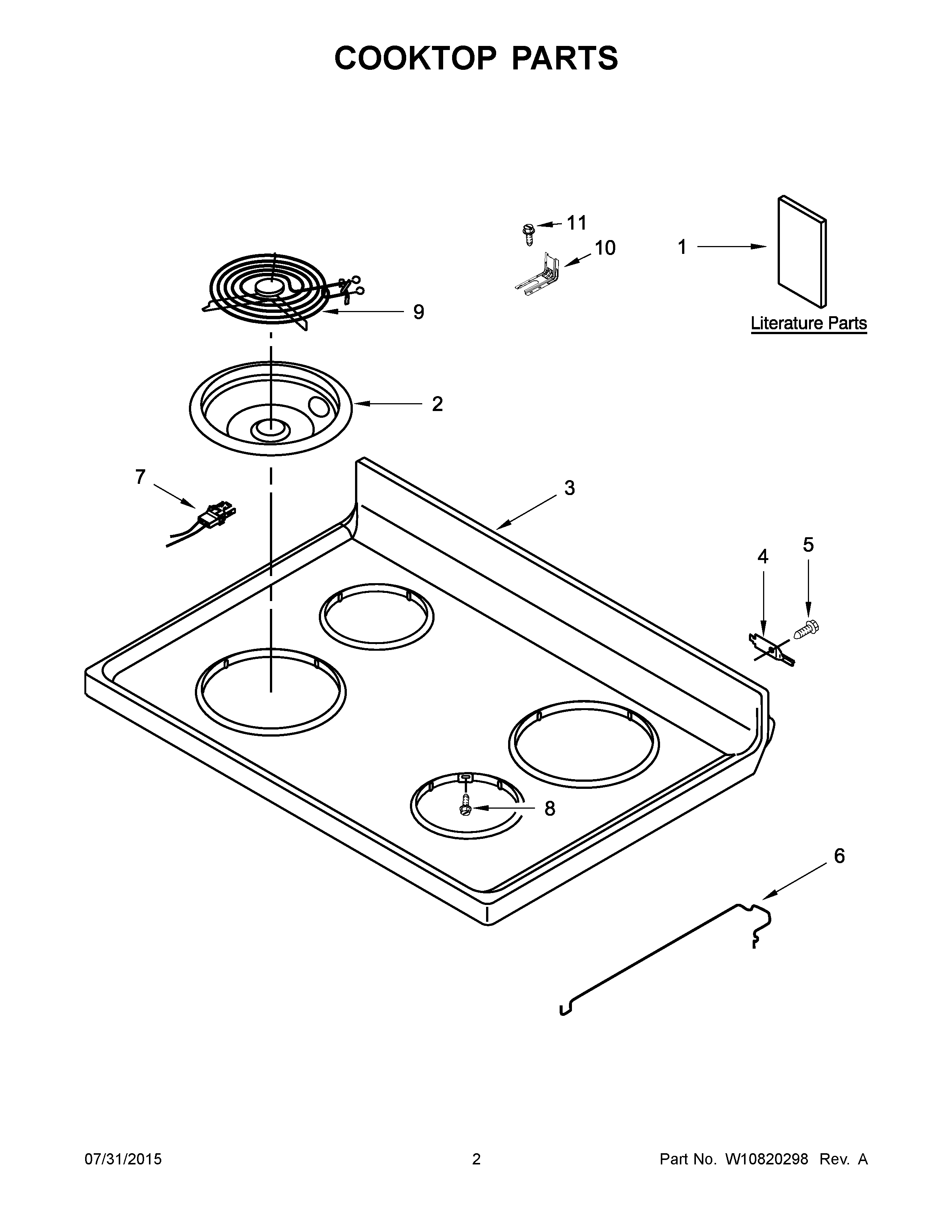

ACR4503SEB0 02 – COOKTOP PARTS

Products

Position	Product
NI	MAY W10251772
NI	HARNESS, WIRE (SURFACE UNIT)
NI	MAY W10084660
NI	LINER (NOT A SERVICEABLE PART)
1A	SHEET, TECH (ENGLISH)
1B	MAY W10403811
1	MAY W10572534
1C	TIPS, SAFE COOKING (ENGLISH)
2A	BOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR)
2	BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR)
3	COOKTOP (WHITE)
3A	COOKTOP (BLACK)
4	HINGE, COOKTOP
5	SCREW
6	ROD, SUPPORT
7	MAY 9760411
8	SCREW
9A	ELEMENT, SURFACE (8") (LEFT FRONT AND RIGHT REAR)
9	ELEMENT, SURFACE (6") (RIGHT FRONT AND LEFT REAR)
10	BRACKET, ANTI-TIP
11	SCREW, ANTI-TIP KIT
