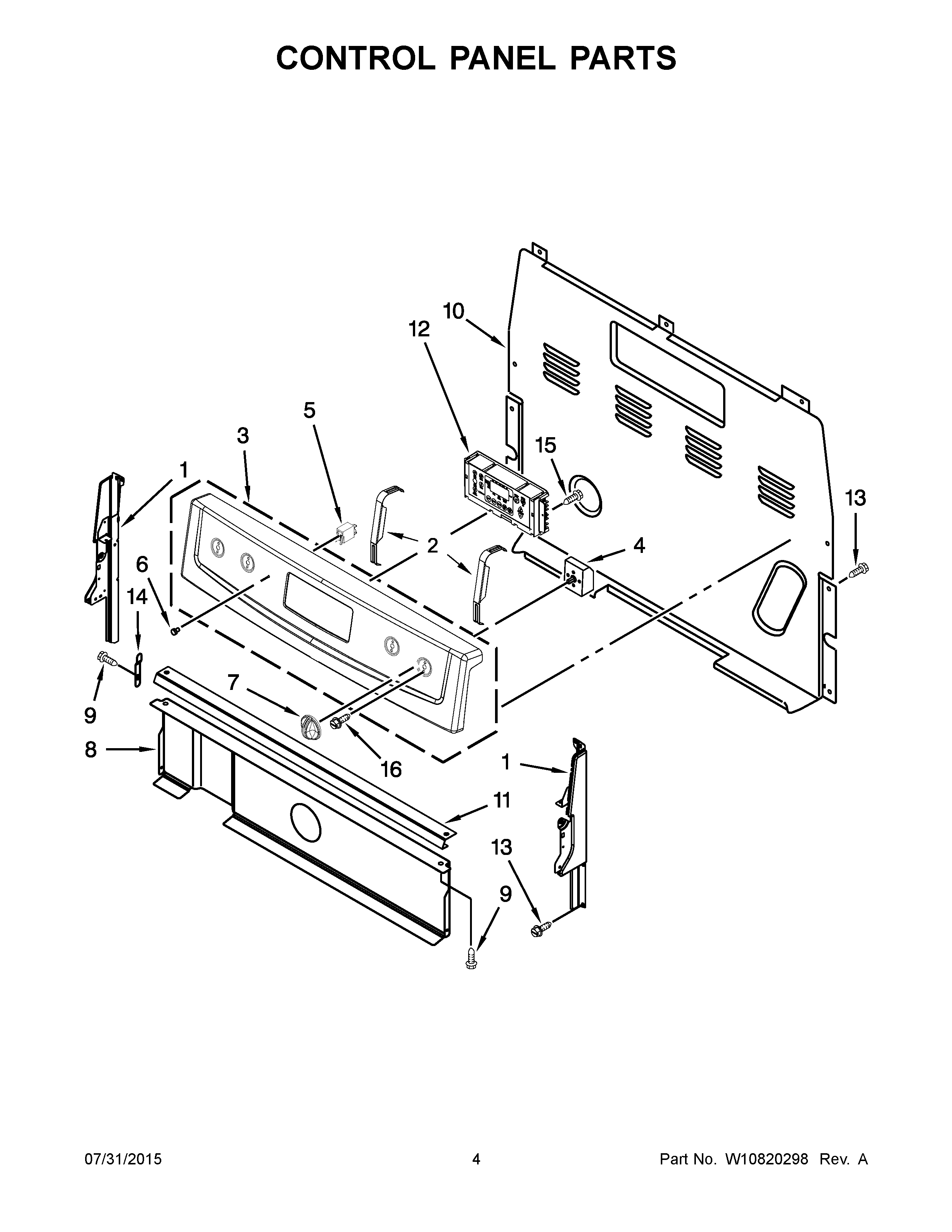

ACR4503SEB0 03 – CONTROL PANEL PARTS

Products

Position	Product
1C	ENDCAP (BLACK (RIGHT))
1B	ENDCAP (BLACK (LEFT))
1	ENDCAP (WHITE (LEFT))
1A	ENDCAP (WHITE (RIGHT))
2	BRACKET, CONTROL
3	MAY W10572560
3A	MAY W10572562
4A	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4	SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
5	MAY 8523265
6	MAY 3196068
7A	KNOB, INFINITE (BLACK)
7	KNOB, INFINITE (WHITE)
8	SHIELD, HEAT
9	SCREW
10	COVER, UPPER REAR
11	BRACKET, CONSOLE MOUNTING
12	MAY W10626961
12A	MAY W10626962
13	SCREW
14	CLIP, SPRING
15	SCREW
16	SCREW
