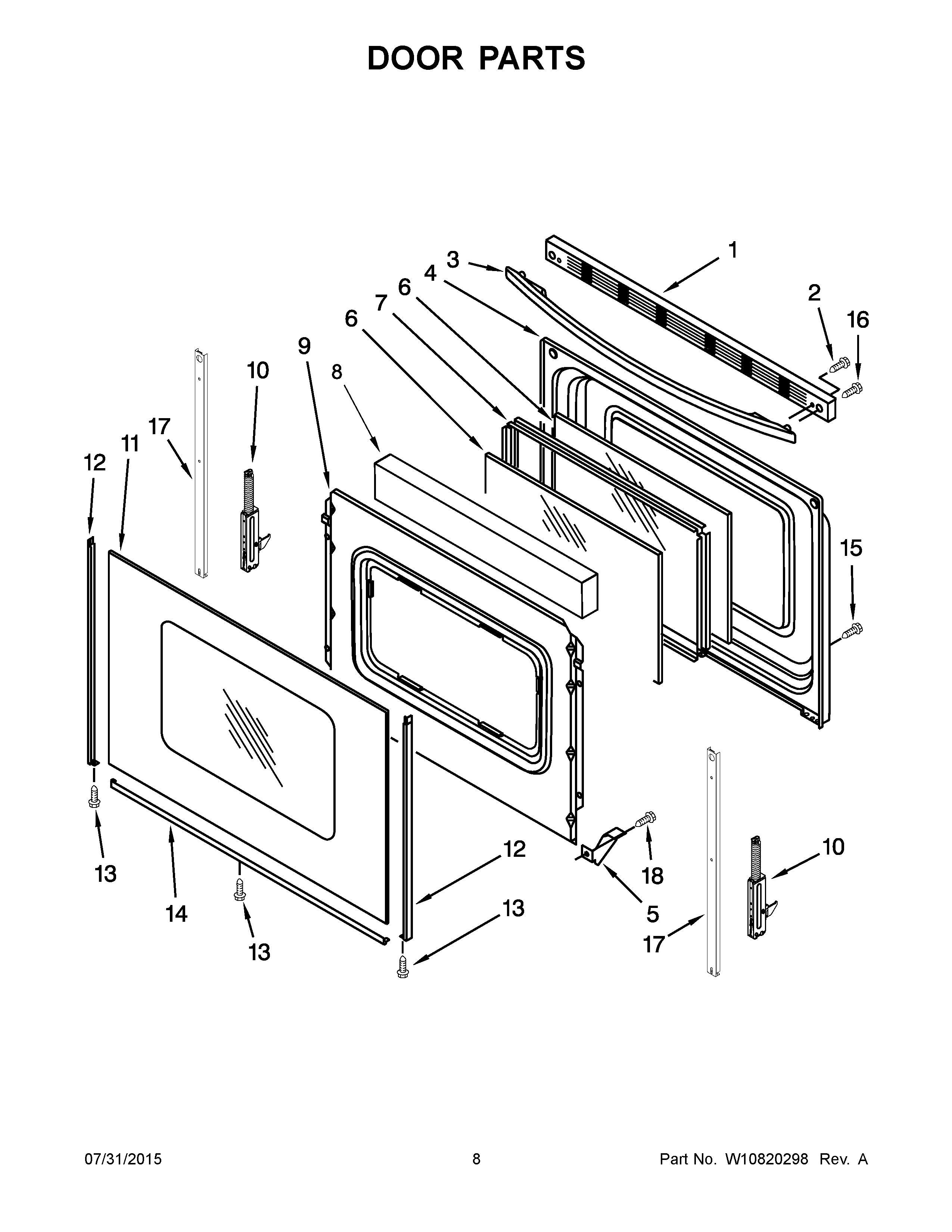

ACR4503SEB0 05 – DOOR PARTS

Products

Position	Product
1A	TRIM, TOP (BLACK)
1	TRIM, TOP (WHITE)
2	SCREW
3A	HANDLE, DOOR (BLACK)
3B	HANDLE, DOOR (STAINLESS)
3	HANDLE, DOOR (WHITE)
4	LINER, DOOR
5	CLIP, PANEL
6	GLASS, INNER
7	FRAME, GLASS
8	INSULATION, DOOR STRIP
9	RETAINER, INSULATION
10	HINGE, ACTIVE (WITH SPRING)
10A	HINGE, DOOR (PASSIVE)
11A	Glass, Outer (Black)
11	Glass, Outer (White)
12	TRIM, SIDE (WHITE (RIGHT))
12A	TRIM, SIDE (WHITE (LEFT))
12C	TRIM, SIDE (BLACK (LEFT))
12B	TRIM, SIDE (BLACK (RIGHT))
13	MAY 3196160
14	TRIM, LOWER (WHITE)
14A	TRIM, LOWER (BLACK)
15	SCREW
16	SCREW
17	STRAP, DOOR
18	SCREW
