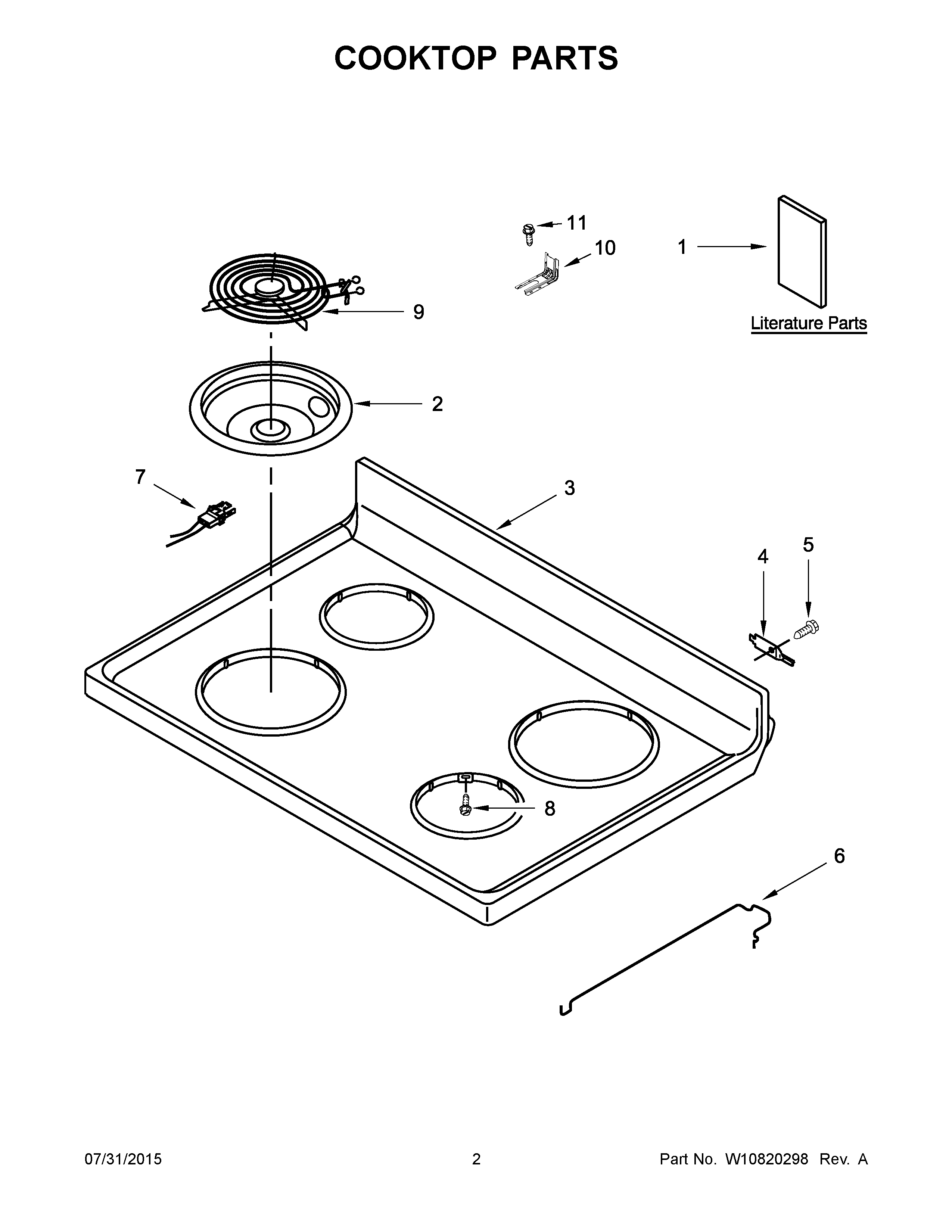

ACR4503SEW0 02 – COOKTOP PARTS

Products

PositionProduct
NIMAY W10251772
NIHARNESS, WIRE (SURFACE UNIT)
NIMAY W10084660
NILINER (NOT A SERVICEABLE PART)
1ASHEET, TECH (ENGLISH)
1BMAY W10403811
1MAY W10572534
1CTIPS, SAFE COOKING (ENGLISH)
2ABOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR)
2BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR)
3COOKTOP (WHITE)
3ACOOKTOP (BLACK)
4HINGE, COOKTOP
5SCREW
6ROD, SUPPORT
7MAY 9760411
8SCREW
9AELEMENT, SURFACE (8") (LEFT FRONT AND RIGHT REAR)
9ELEMENT, SURFACE (6") (RIGHT FRONT AND LEFT REAR)
10BRACKET, ANTI-TIP
11SCREW, ANTI-TIP KIT
