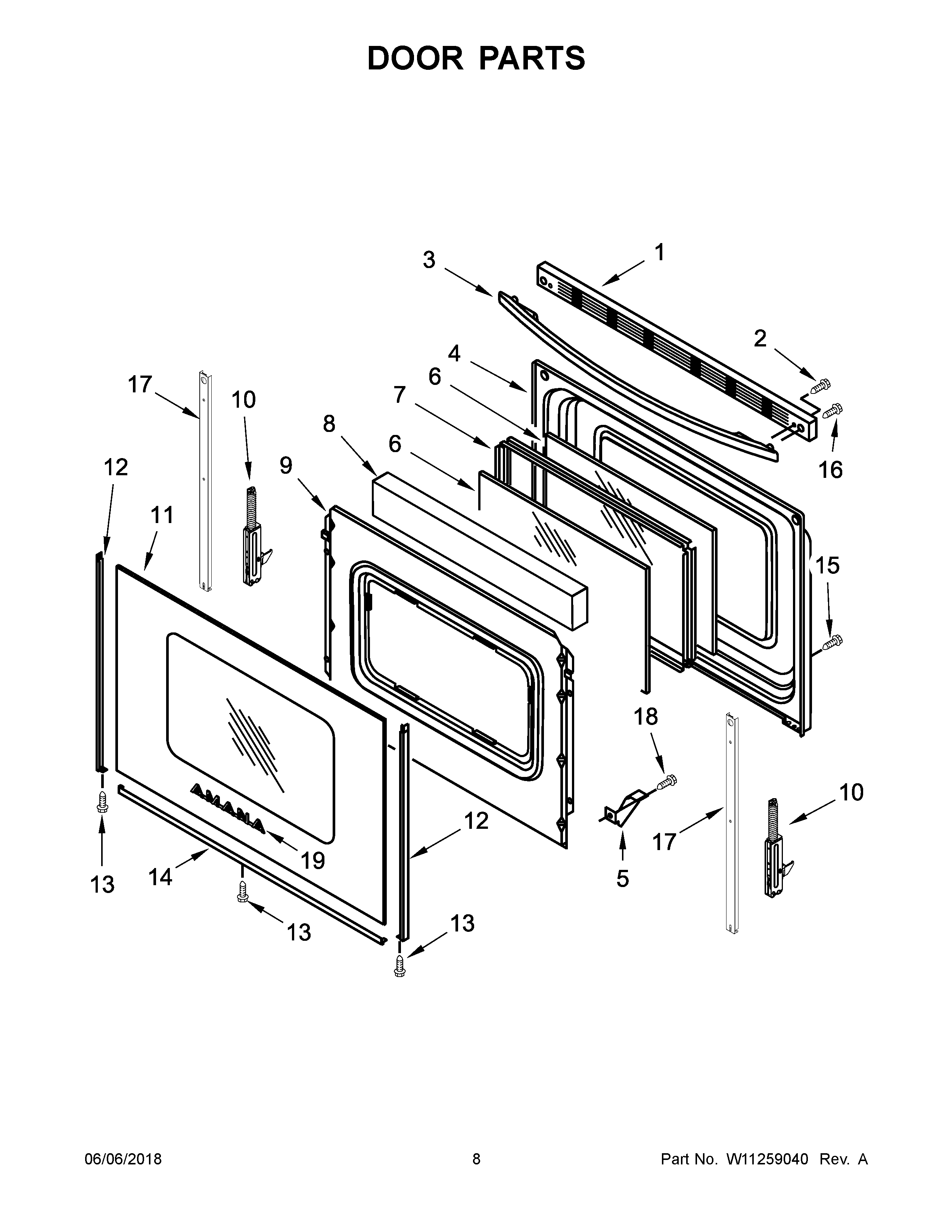

ACR4503SFB2 05 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (BLACK)
1A	TRIM, TOP (WHITE)
2	SCREW
3	HANDLE, DOOR (BLACK)
3A	HANDLE, DOOR (WHITE)
4	LINER, DOOR
5	CLIP, PANEL
6	GLASS, INNER
7	FRAME, GLASS
8	INSULATION, DOOR STRIP
9	RETAINER, INSULATION
10	HINGE, ACTIVE
10A	HINGE, DOOR (PASSIVE)
11	GLASS, OUTER (BLACK)
11A	GLASS, OUTER (WHITE)
12C	TRIM, SIDE (WHITE (LEFT))
12B	TRIM, SIDE (WHITE (RIGHT))
12A	TRIM, SIDE (BLACK (LEFT))
12	TRIM, SIDE (BLACK (RIGHT))
13	SCREW
14	TRIM, LOWER (BLACK)
14A	TRIM, LOWER (WHITE)
15	SCREW
16	SCREW
17	STRAP, DOOR
18	SCREW
19	BADGE (WHITE)
