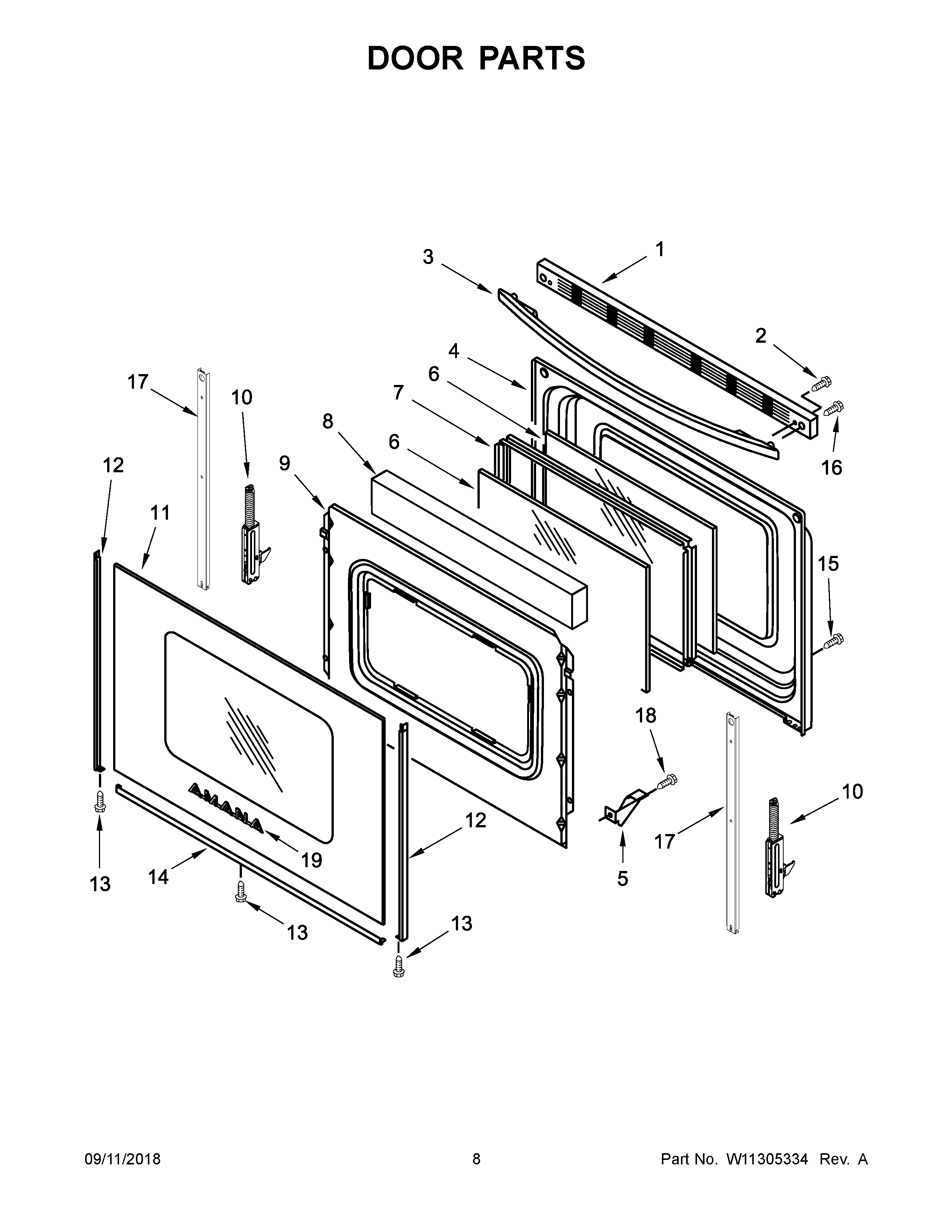

ACR4503SFB3 05 – DOOR PARTS

Products

PositionProduct
1TRIM, TOP (BLACK)
1ATRIM, TOP (WHITE)
2SCREW
3HANDLE, DOOR (BLACK)
3AHANDLE, DOOR (WHITE)
4LINER, DOOR
5CLIP, PANEL
6GLASS, INNER
7FRAME, GLASS
8INSULATION, DOOR STRIP
9RETAINER, INSULATION
10HINGE, ACTIVE
10AHINGE, DOOR (PASSIVE)
11AGLASS, OUTER (WHITE)
11GLASS, OUTER (BLACK)
12ATRIM, SIDE (BLACK (LEFT))
12TRIM, SIDE (BLACK (RIGHT))
12CTRIM, SIDE (WHITE (LEFT))
12BTRIM, SIDE (WHITE (RIGHT))
13SCREW
14ATRIM, LOWER (WHITE)
14TRIM, LOWER (BLACK)
15SCREW
16SCREW
17STRAP, DOOR
18SCREW
19ABADGE (WHITE)
19BADGE (BLACK)
