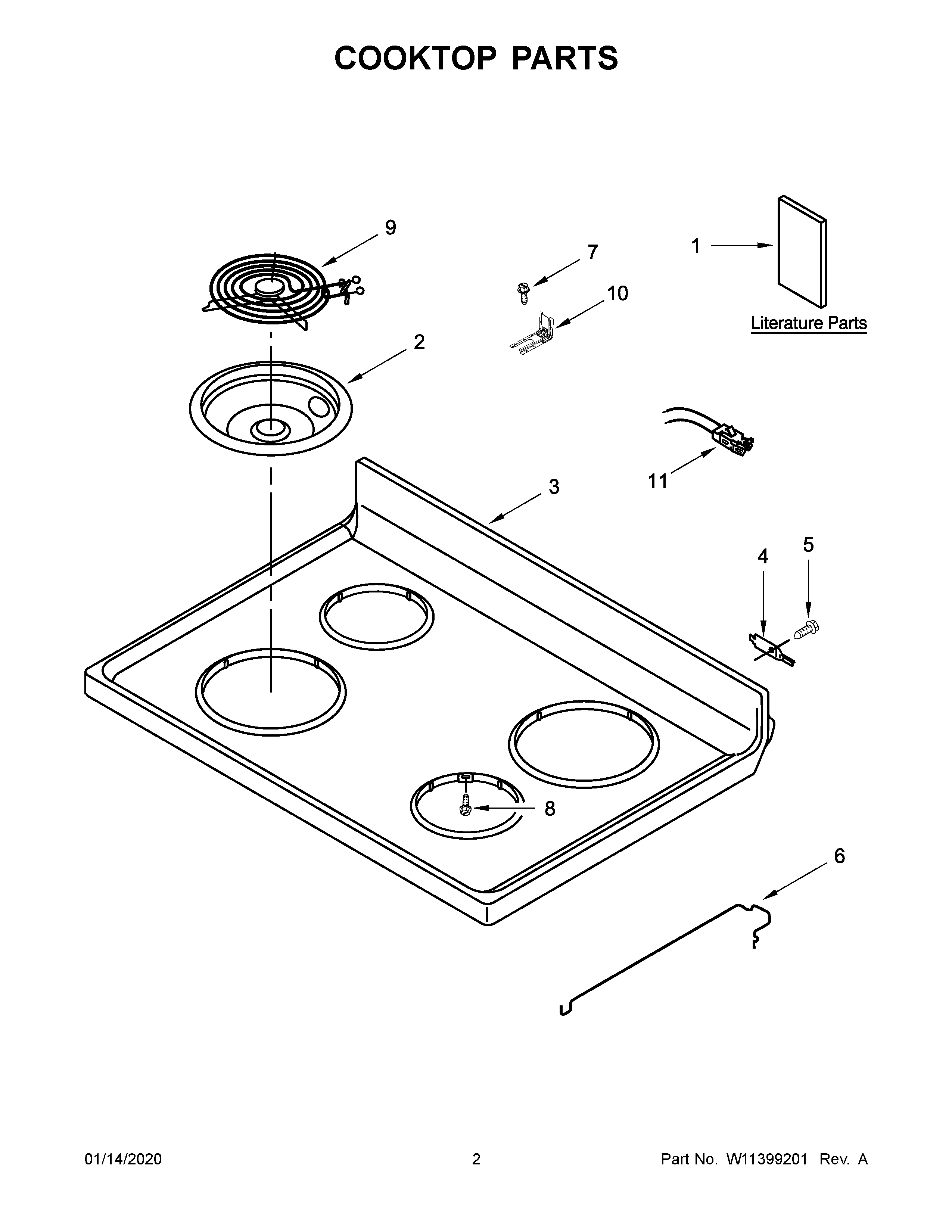

ACR4503SFB4 02 – COOKTOP PARTS

Products

PositionProduct
NIHARNESS, WIRE (MAIN)
NILINER (NOT A SERVICEABLE PART)
NIHARNESS, COOKTOP
1MAY W11235905
1AMAY W11335863
1BINSTRUCTIONS, INSTALLATION
2ABOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR)
2BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR)
3ACOOKTOP (WHITE)
3COOKTOP (BLACK)
4HINGE, COOKTOP
5SCREW
6ROD, SUPPORT
7SCREW, ANTI-TIP KIT
8SCREW
9AELEMENT, COIL HEATING (2400W) (LEFT FRONT AND RIGHT REAR)
9ELEMENT, COIL HEATING (1500W) (RIGHT FRONT AND LEFT REAR)
10ANTI-TIP BRACKET
11RECEPTACLE, ELEMENT
