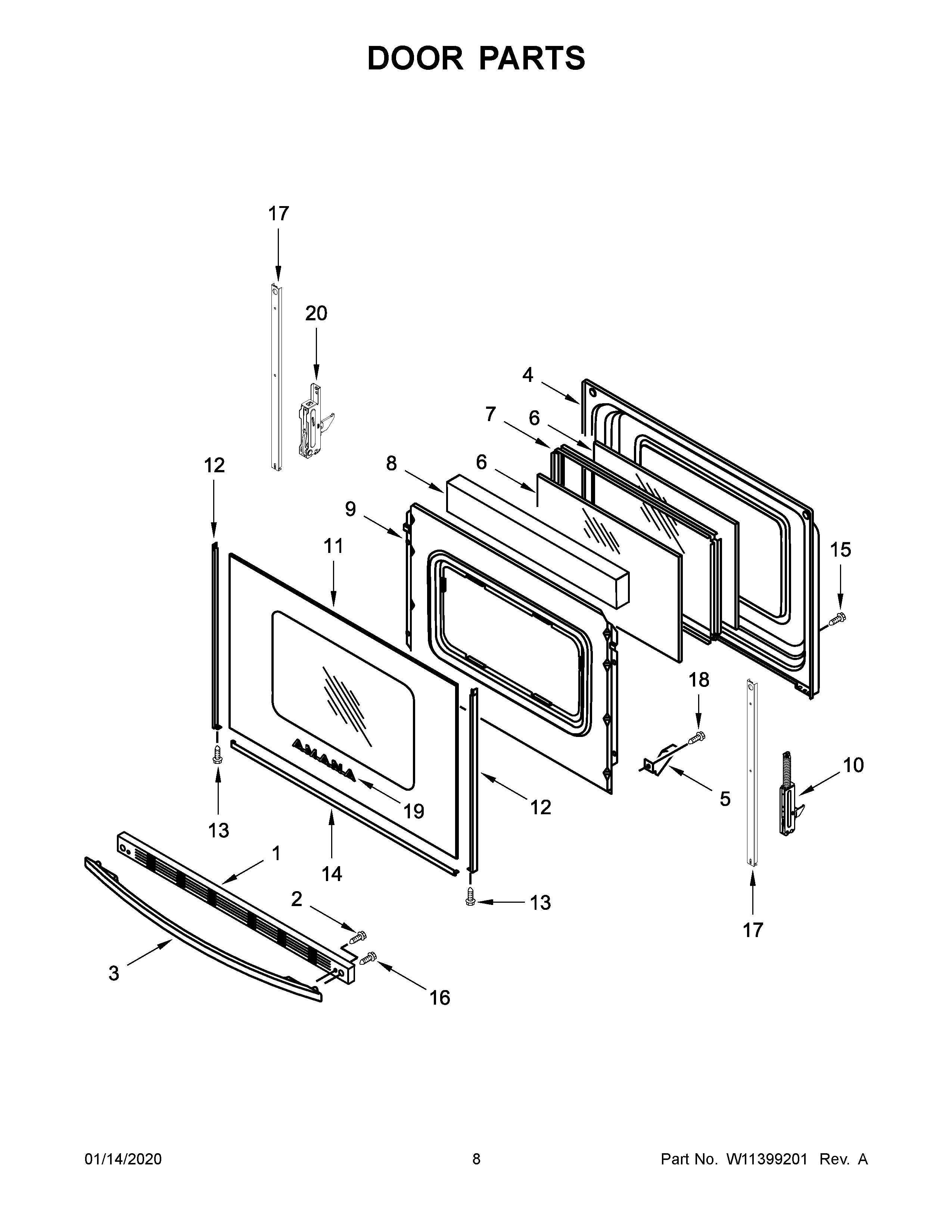

ACR4503SFB4 05 – DOOR PARTS

Products

Position	Product
1A	TRIM, TOP (WHITE)
1	TRIM, TOP (BLACK)
2	SCREW
3	HANDLE, DOOR (BLACK)
3A	HANDLE, DOOR (WHITE)
4	LINER, DOOR
5	CLIP, PANEL
6	GLASS, INNER
7	FRAME, GLASS
8	INSULATION, DOOR STRIP
9	RETAINER, INSULATION
10	HINGE, ACTIVE
11A	GLASS, OUTER (WHITE)
11	GLASS, OUTER (BLACK)
12A	TRIM, SIDE (BLACK (LEFT))
12	TRIM, SIDE (BLACK (RIGHT))
12C	TRIM, SIDE (WHITE (LEFT))
12B	TRIM, SIDE (WHITE (RIGHT))
13	SCREW
14	TRIM, LOWER (BLACK)
14A	TRIM, LOWER (WHITE)
15	SCREW
16	SCREW
17	DOOR STRAP
18	SCREW
19A	BADGE (WHITE)
19	BADGE (BLACK)
20	HINGE, DOOR (PASSIVE)
