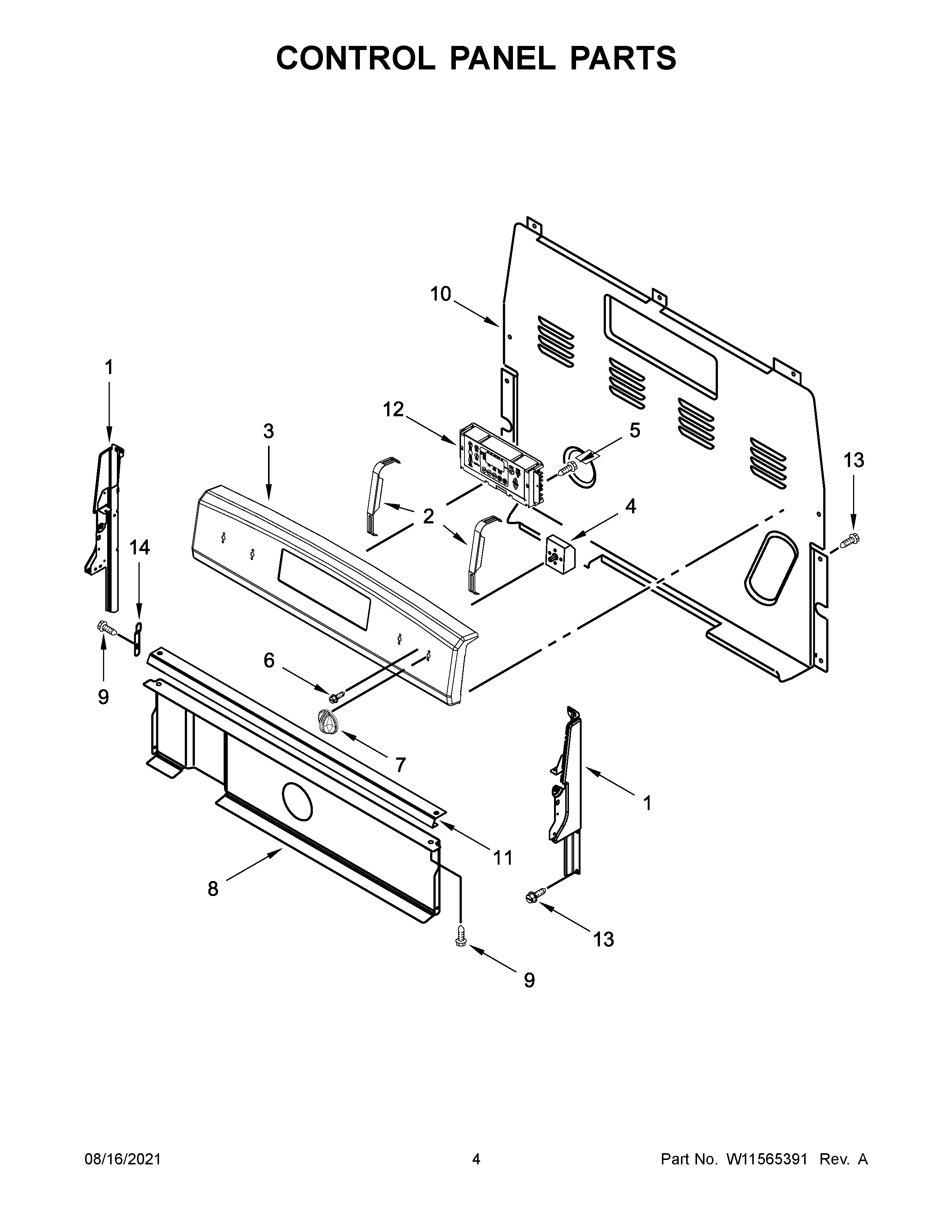

ACR4503SFB5 03 – CONTROL PANEL PARTS

ACR4503SFB5 03 – CONTROL PANEL PARTS

Written by

in

ACR4503SFB5 03 – CONTROL PANEL PARTS

Products

PositionProduct
NIW11161831 Whirlpool Insulation
NICABINET (NOT A SERVICEABLE PART)
NIW11311894 Whirlpool Insulation
1VENT TUBE
1AW11219665 Whirlpool Panel Endcap
1BW11219365 Whirlpool Panel Endcap
1CW11219370 Whirlpool Endcap Panel
1W11219664 Whirlpool Endcap Panel
2W11230932 Whirlpool Bracket Mounting
2W11699791 Whirlpool Burner Box
3AWPW10575396 Whirlpool Side Panel
3AW11231950 Whirlpool Control Panel
3W11231949 Whirlpool Control Panel
3W11730303 Whirlpool Side Panel
4WP3148952 Whirlpool Oven Infinite Switch
4W11169708 Whirlpool Screw
4AWP3149400 Whirlpool Oven Infinite Switch
5W11542153 Whirlpool Door Gasket
6W10856603 Whirlpool Broil Element
6WP3400882 Whirlpool Screw
7W11210997 Whirlpool Knob
7AW11188750 Whirlpool Knob
7W11182108 Whirlpool Bake Element
8WP3400029 Whirlpool Dishwasher Nut
8W10134247 Whirlpool Heat Shield
9WP3196548 Whirlpool Thermal Fuse
10WP3196557 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
11WPW10341186 Whirlpool Refrigerator Front Levelling Leg
12W11536796-includeCORE Whirlpool W11536796 Refrigerator Electronic Control Board + Core
12AW11536797-includeCORE Whirlpool W11536797 Refrigerator Electronic Control Board + Core
12WPW10067840 Whirlpool Screw
13WP8054068 Whirlpool Retainer
143196200 Whirlpool Clip
14W10137382 Whirlpool Clip
15AWPW10306546 Whirlpool Base Rail
16WPW10058460 Whirlpool Appliance Levelling Leg
17W10647259 Whirlpool Hinge Receiver
18WPW10107820 Whirlpool Door Latch
19W10404688 Whirlpool Bracket Support
20W10807823 Whirlpool Drawer Glide
21WPW10245259 Whirlpool Terminal Block
22W11135752 Whirlpool Anchor Tip
23WP9757262 Whirlpool Light Switch
24W11594170 Whirlpool Light Socket
25BULB-LIGHT
26W11370462 Whirlpool Door Rod
27WPW10181986 Whirlpool Oven Sensor
28WP3196175 Whirlpool Screw
29W11728255 Whirlpool Service Bracket
30SCREW
31WP3400016 Whirlpool Screw Assembly
32WPW10326122 Whirlpool Black Cover
333196172 Whirlpool Oven Screw
34Rod, Latch
35WP3196567 Whirlpool Screw
36WP9761013 Whirlpool Door Latch
37WP3196174 Whirlpool Screw
38RACK-OVEN
39WPW10281322 Whirlpool Connector
40W11135756 Whirlpool Screw Torx
