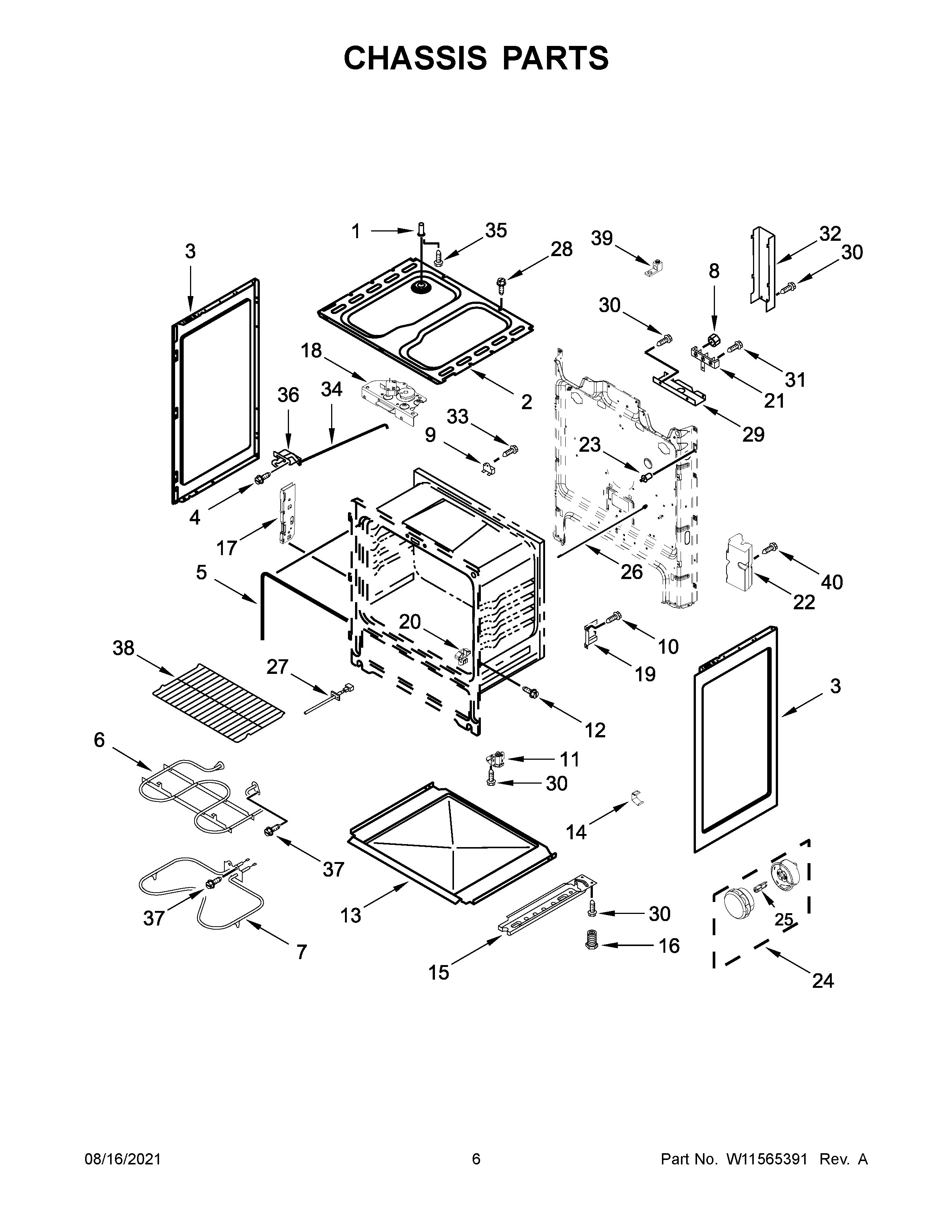

ACR4503SFB5 04 – CHASSIS PARTS

Products

Position	Product
1	TRIM-VENT
1A	W10817433 Whirlpool Vent Trim
2	W10817436 Whirlpool Screw
3A	W10817434 Whirlpool Door Handle
3	WPW10323589 Whirlpool Door Handle
4	WP9761344 Whirlpool Door Liner
5	W10137382 Whirlpool Clip
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	WPW10299226 Whirlpool Door Hinge
11	W10904907 Whirlpool Door Glass Assembly
11A	W10904906 Whirlpool Door Glass
12A	W10761018 Whirlpool Dishwasher Left Door Trim
12B	WP8523166 Whirlpool Door Trim
12	W10761014 Whirlpool Right Door Trim
12C	WP8523172 Whirlpool Left Door Trim
13	WP355214 Whirlpool Screw
14A	WP8523175 Whirlpool Door Trim Assembly
14	WP8523177 Whirlpool Door Trim Assembly
15	WPW10031790 Whirlpool Screw
16	WPW10200660 Whirlpool Range Oven Door Handle Screw
17	W11502236 Whirlpool Door Trim
18	WP3196175 Whirlpool Screw
19	W10846751 Whirlpool Nameplate
19A	W10849465 Whirlpool Nameplate
20	WPW10299227 Whirlpool Range Door Hinge
